KUHN HRB202 - Coupling the Machine

HRB202-202S-252D-302D
40
6. - Putting into service
KN136JGB_D
Power harrow
 Adjustment

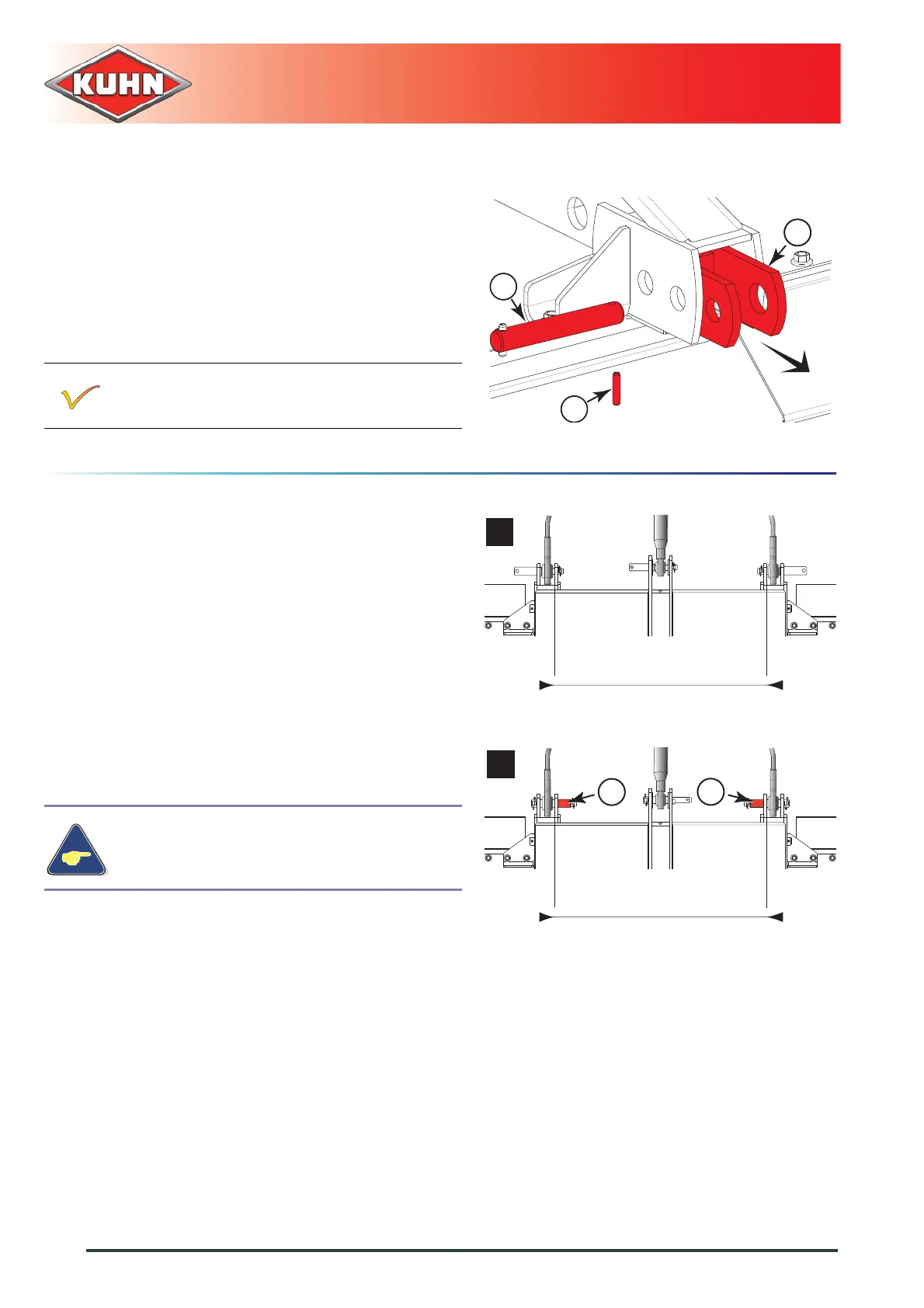

- Remove roll pin (1).
- Remove pin (2).
- Fit lower coupling yoke (3) in the required position.
- Insert pin (2).
- Insert roll pin (1) to secure pin.
- Proceed the same way on the other side.
- Check that the 2 lower links have been adjusted
identically.
6.1.4 Coupling the machine
- Remove the lower hitch pins.
- Position lower links in accordance with tractor
attachment category:
Category 2 linkage (a):
• L= 825 mm (2’8’’).
Category 3N linkage (b):
• L= 825 mm (2’8’’).
- This position must be used when the power
harrow is used in combination with a seed
drill.
