KUHN HRB202 - Coupling Device

9. - Optional equipment
HRB202-202S-252D-302D
85
KN136JGB_D
Power harrow
Additional machine lowering (2)
- Make sure that the additional machine rests on the
ground:
• Before turning off the engine.
• Before carrying out any maintenance or repair on
the machine.
• Before parking the assembly.
Crushing hazard.

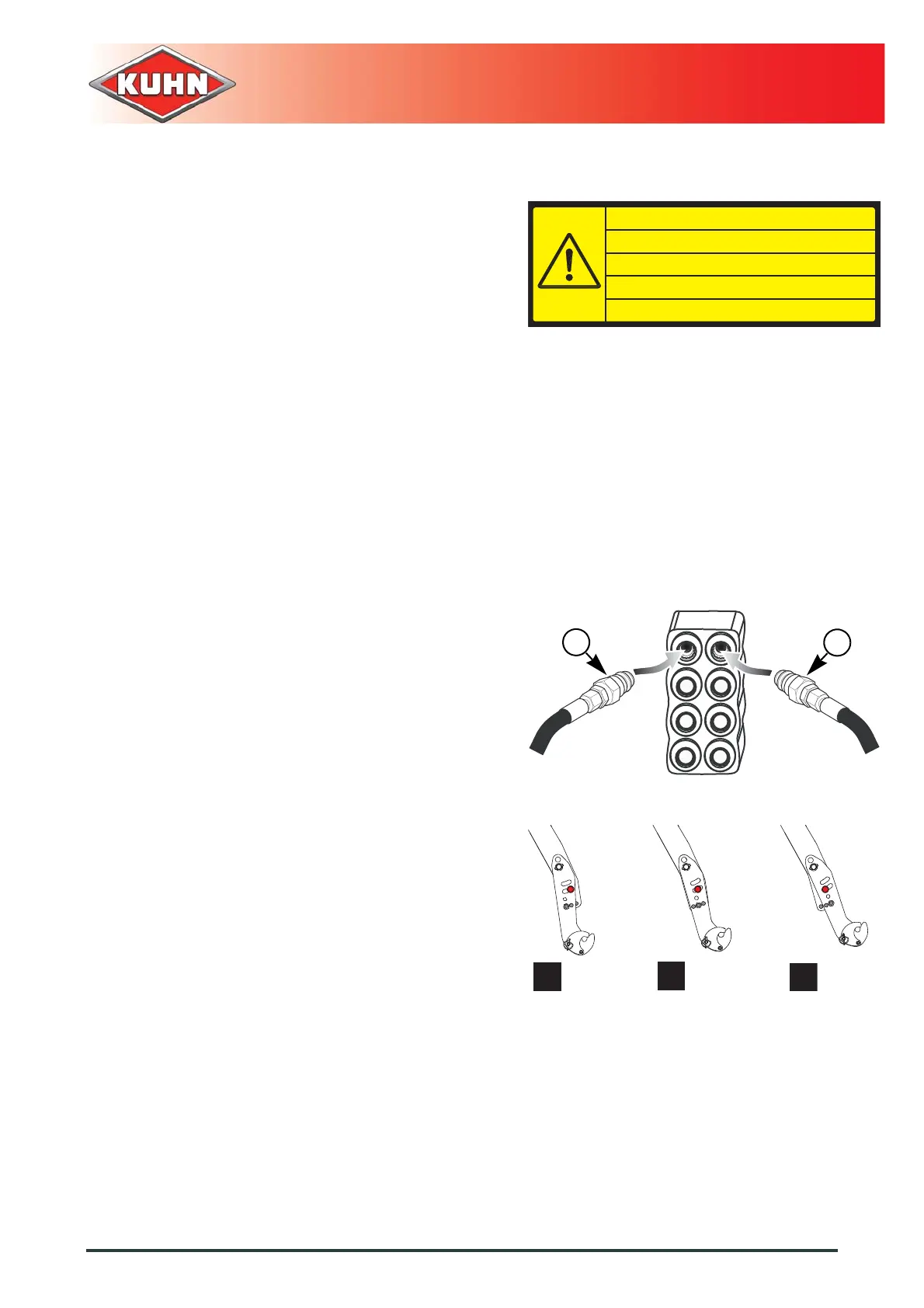

9.4.2 Coupling device
 Description of coupling elements
• 2 hydraulic hoses pressurizing the machine
transport/work position cylinder.

Preparing the tractor
The tractor must be fitted with the following
component:
• 1 double acting hydraulic outlet.

Hydraulic connection
- Connect hydraulic hoses (1) and (2) to a double
acting valve.

Adjustments (Attachment brackets)
The attachment hooks can be fitted in 6 different
positions to obtain best adaptation of the additional
machine.
• High position: 3 positions (factory fitted).
• Low position: 3 positions.
REPOSER LE SEMOIR AU SOL
LOWER SEEDER TO THE GROUND
SÄMASCHINE IMMER ABSENKEN
APPOGGIARE LA SEMINATRICE
AL SUOLO
DEJAR LA SEMBRADORA EN
EL SUELO
- AVANT L’ARRET DU MOTEUR
- AVANT TOUTE INTERVENTION
- AVANT LA DEPOSE DE L’ENSEMBLE
- BEFORE STOPPING TRACTOR ENGINE
- BEFORE ANY MAINTENANCE
- BEFORE REMOVING FROM TRACTOR
- VOR ABSTELLEN DES MOTORS
- VOR JEDER ARBEIT AM GERÄT
- VOR ABBAU DER MASCHINE
- PRIMA DI ARRESTARE IL MOTORE
- PRIMA DI QUALSIASI IMTERVENTO
- PRIMA DI DISTACCARE L’INSIEME
- ANTES DE LA PARADA DEL MOTOR
- ANTES DE TODA INTERVENCION
- ANTES DE LA DESCARGA DEL CONJUTO
2
1
a
b
c
