KUHN HRB202 - Removal; Putting the Machine into Transport Position

9. - Optional equipment
HRB202-202S-252D-302D
79
KN136JGB_D
Power harrow

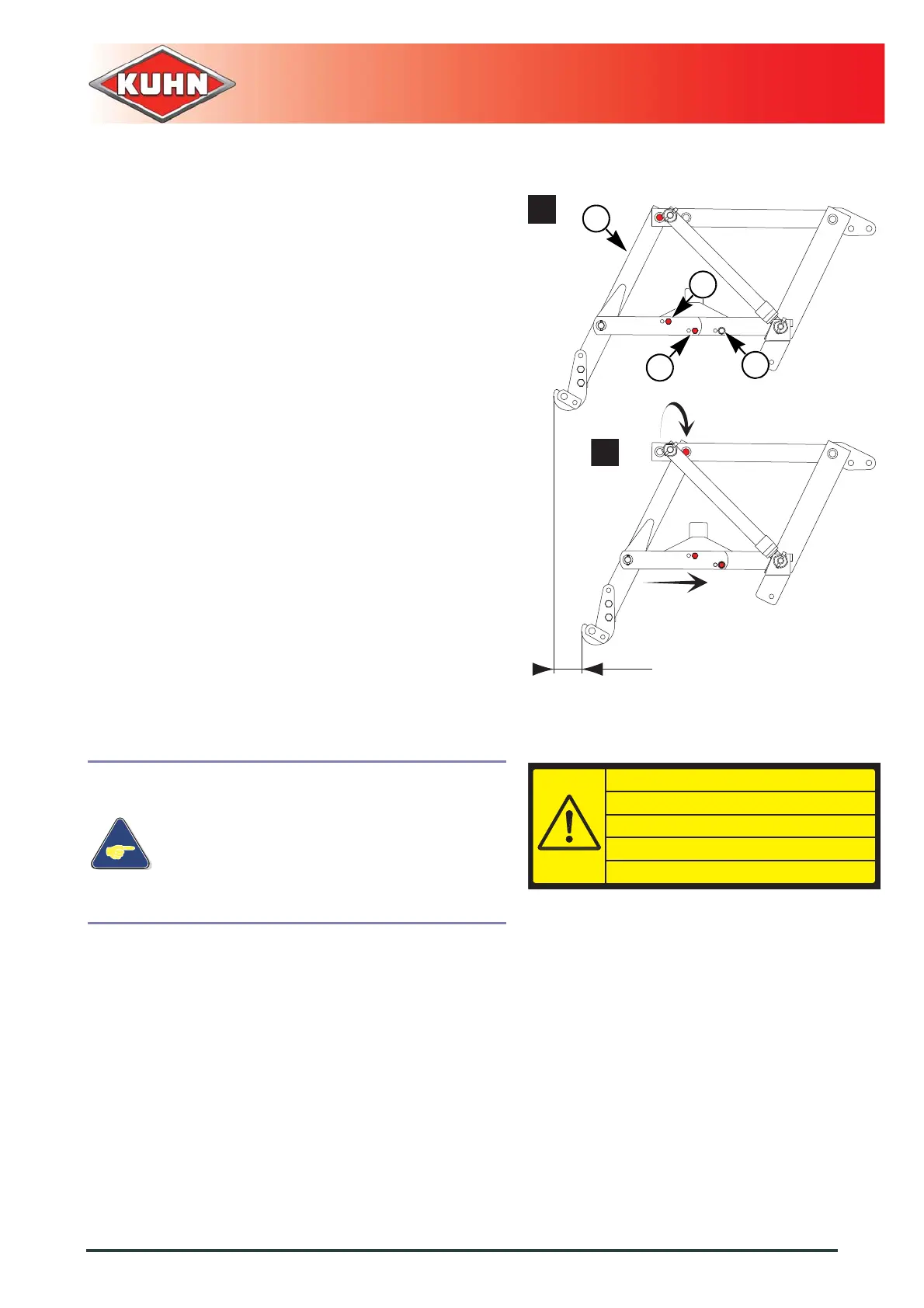

Position (b): Maximum overhang.
Position (c): Minimum overhang.
- Remove bolts (1).
- Place hydraulic attachment frame (2) in the
required position.
- Reinstall bolts (1):
• (1) Torque: 25 daNm (184 lbf ft).
• (3) Torque: 17 daNm (125 lbf ft).
9.3.4 Removal
- When parking the power harrow / additional
machine unit, make sure that the additional
machine is lowered first.
- See section:
• Optional equipment / Hydraulic lift
linkage / Putting the machine into work
position.
- Disconnect and place hydraulic hose coupler in its
support.
9.3.5 Putting the machine into transport
position
From the working position:
- Uncouple the PTO shaft (between the power
harrow and the additional machine).
L
b
c
1
1
2
3
