Maintenance and care
40

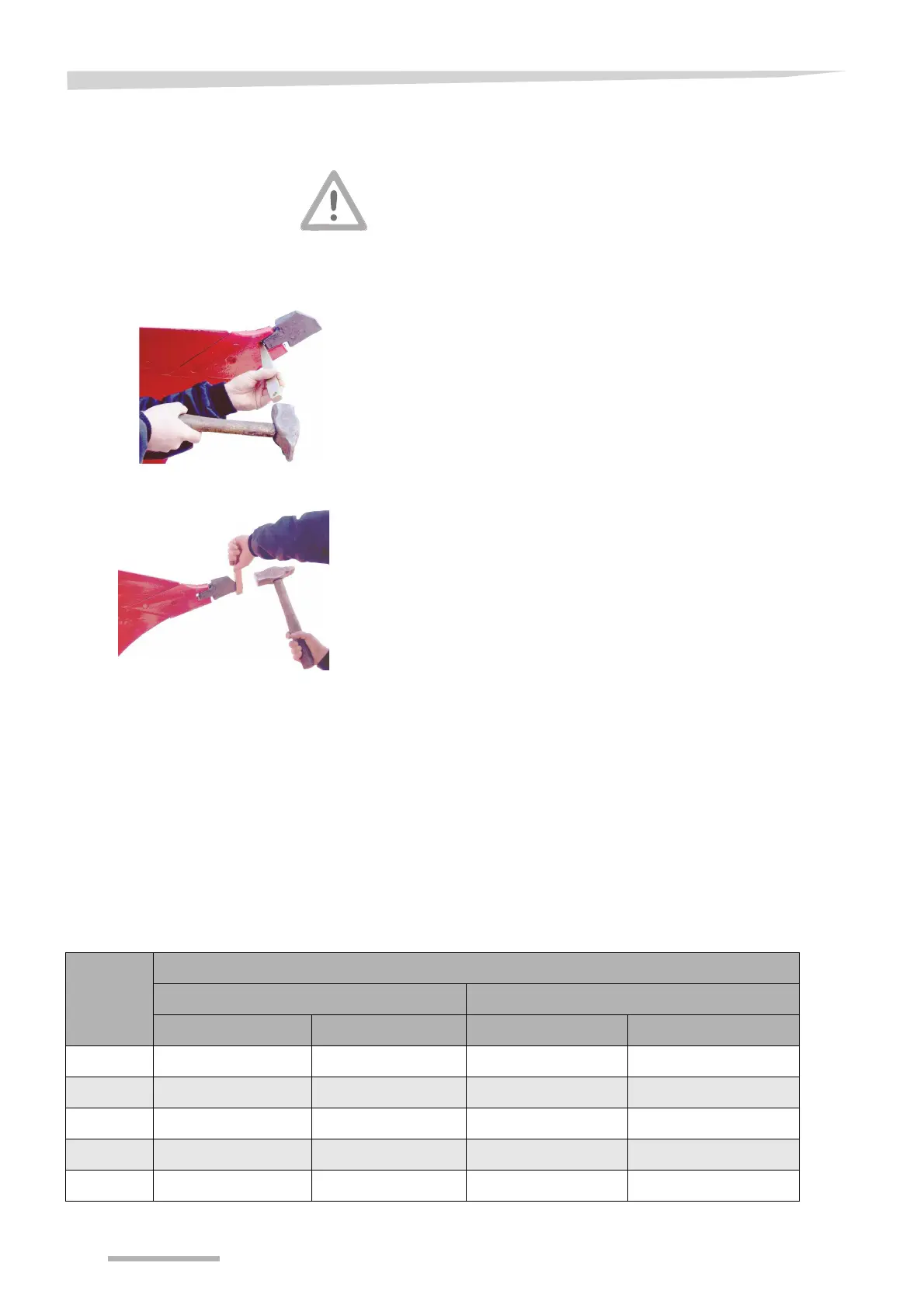

Replace Quick-fit points
Wear eye protection
Wear eye protection when replacing Quick-fit points. Otherwise, there
is a risk that splinters from the Quick-Fit points can cause eye dam-
age.
Removing a worn point
Place the gore tool
Knock the point out
Fitting a new point
Place the new point the right way around
Use the gore tool as a buffer between the point and the hammer
Knock the point into place
T
IP
!
There must be no paint on the angled surfaces
Tighten bolts and
nuts
Retighten all bolts and nuts on the plough.
•
After the first few hours of use
•
When necessary
•
Yearly/after 200 ha
General
For most bolts and nuts the following table applies.
Bolt
diam.
Tightening torque
10.9 Bolts 12.9 Bolts
kpm Nm kpm Nm
M12 11.5 - 12.5 113 - 122.5 14 - 15 137 - 147
M14 18.5 - 20 181.5 - 196 22 - 24 216 - 235.5
M16 28.5 - 31 279.5 - 304 34 - 37.5 333.5 - 368
M20 55.5 - 61 544.5 - 598.5 65.5 - 73 652 - 716
M24 95 - 105 932 - 1030 115.5 - 127 1133 - 1246
