KVH Industries TracVision M3 Installation Guide

54-0274-01 Rev. A 9 © 2005 KVH Industries, Inc., All rights reserved.
Connect Power
8
The receiver requires a 10-16 volts DC (VDC) power
input supporting 50 watts (4.2 amps @ 12 VDC).
1. Before you connect the receiver’s power wires,
turn off vessel power and test the circuit to
ensure no power is present.
2. Connect the receiver’s individual power wires to
a dedicated 10-amp or 15-amp circuit breaker.
Connect the negative (black) wire to ground
(power return), and connect the positive (red)
wire to +12 VDC vessel power.
3. Plug the other end of the power wires into the
“Vehicle Power” jack on the receiver’s rear panel.
Do not remove the small ferrite coil that is clamped
onto the power wires. This coil suppresses EMI
(electromagnetic interference) from the receiver.
For your own safety, shut
down vessel power before
you connect the wires.

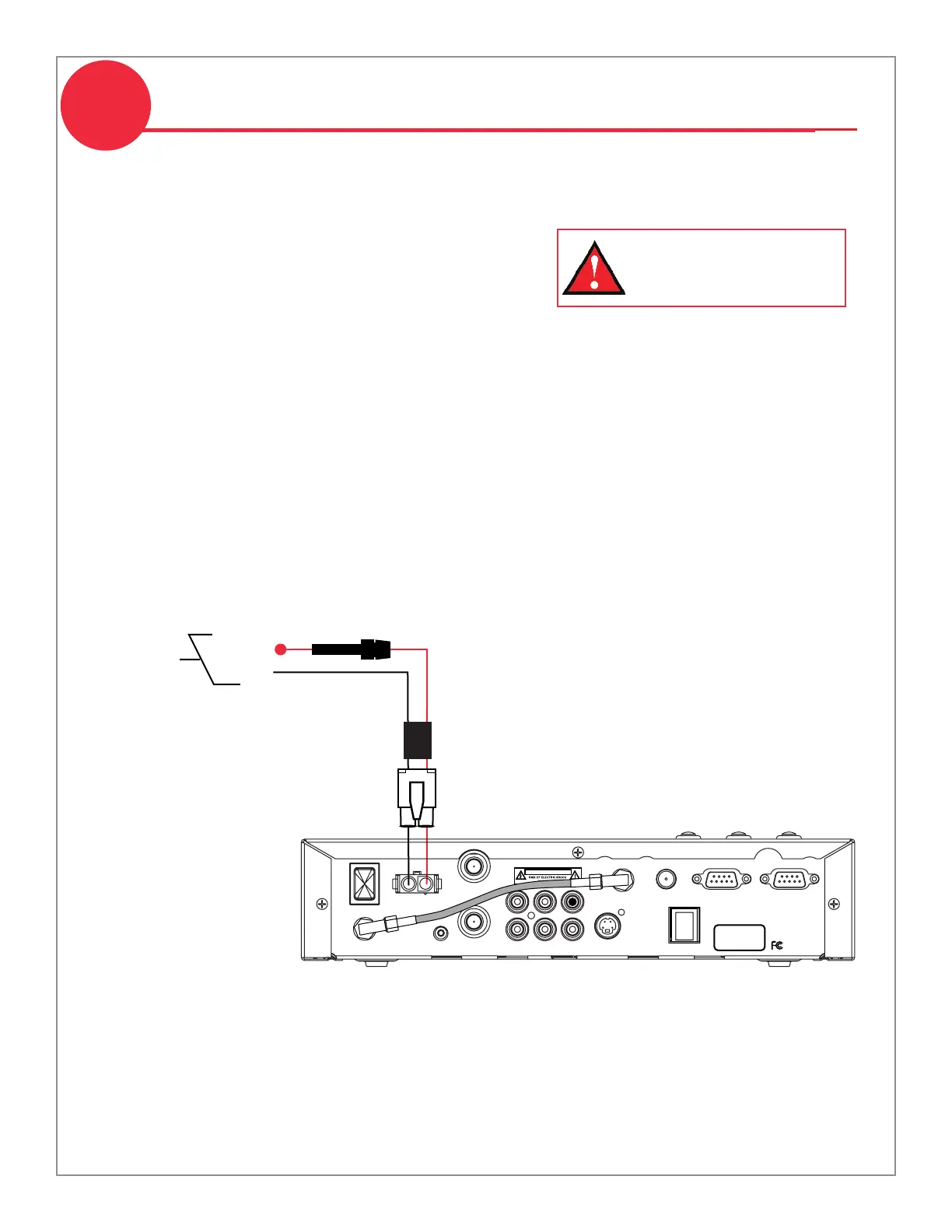

Receiver
DC Power
Ground
Vessel Power
(10-16 VDC)
Fuse (6 amp)
POWER
VEHICLE POWER
(10-16 VDC)
VHF ANTENNA
IN
AUDIO R AUDIO L VIDEO
S – VIDEO
PHONE JACK
RF
REMOTE
INPUT
OUT TO TV
TUNER
SATELLITE IN
CAUTION
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device must not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Tested to comply
with FCC Standards
TO SATELLITE
IN
TO KVH
ANTENNA
DIAGNOSTICS
PORT 1
DIAGNOSTICS
PORT 2
Ferrite
Coil
