54-0274-01 Rev. A 7 © 2005 KVH Industries, Inc., All rights reserved.
1. Using a
7
⁄16" socket wrench, remove the two
bolts securing the antenna assembly to the
base. Be sure to remove both of these
shipping restraints, along with the washers
and spacers. Save the restraints for future use.

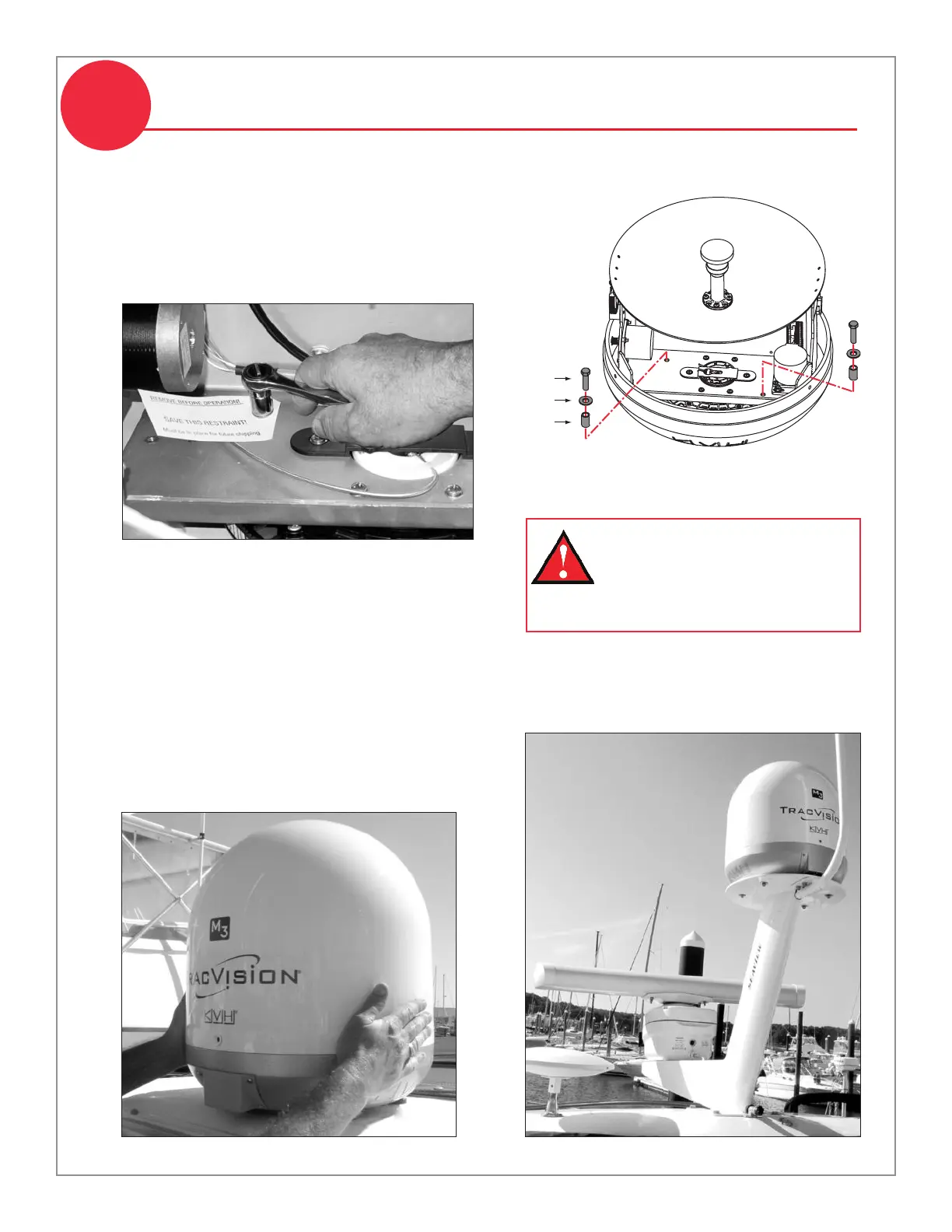

Remove the Restraints
6
Shipping Restraints
Antenna
Radome
2. Reinstall the antenna radome. While
pressing the radome down onto the base,
secure the radome to the base using the three
#10-32 screws you removed earlier. The
radome’s “TracVision” labels should face fore
and aft.
3. Install a protective plastic screw cap (supplied
in the kit) over each radome screw.
Antenna Mounted
Be sure to remove both shipping
restraint bolts, washers, and
spacers. The antenna will not
work with these restraints still
installed.
