KYMCO CV3 Series User Manual

3
Control Functions of Mechanism
63
4
Adjusting Windshield Height

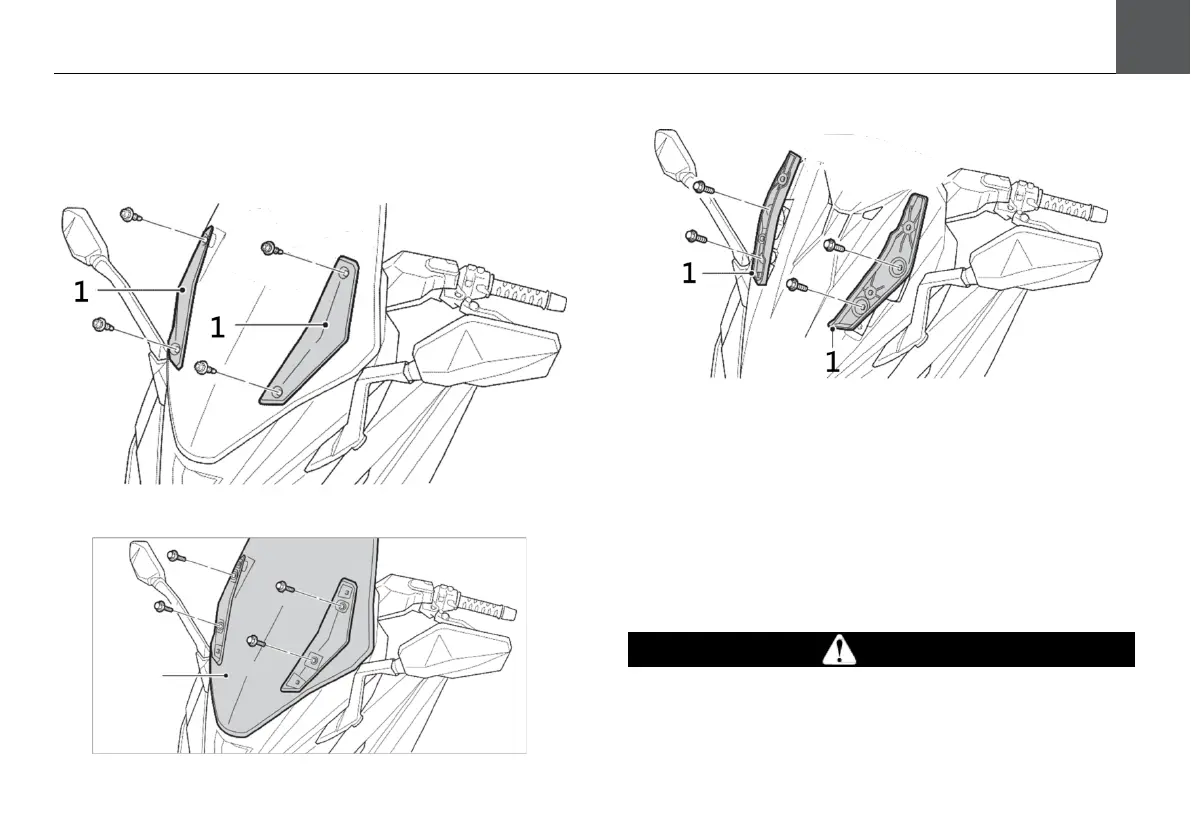

1. Remove the screw and then remove the front
Windshield protection cover.
1: Front windshield protection cover
2. Remove Screws and Windshield.
3. Remove the Windshield spacer holder.
1: Windshield spacer holder
4. Install the Windshield spacer holder at the most
appropriate position. Tighten screws to specified
torque.
5. Install the Windshield with screws to the fixing
position.
6. Tighten screws to specified torque.
Warning
Slackened Windshield can lead to accidents. Make sure
that screws are tightened to specified torque.
Windshield

KYMCO CV3 Series Specifications

General

Displacement	550.4 cc
Front Suspension	Telescopic fork
Rear Tire	160/60-15
Fuel Capacity	15.5 liters (4.1 gallons)
ABS	Yes
Max Power	51 hp @ 7500 rpm
Fuel System	Electronic fuel injection
Transmission	CVT
Front Brake	Dual disc
Rear Brake	Single disc
Weight	280 kg
Seat Height	795 mm
Max Torque	53 Nm @ 5750 rpm
Front Tire	120/70-15
