Control Functions of Mechanism
74
4
TPMS abnormal status:
Depending on the TPMS error state, the dashboard will
display with the indicator light and the message bar as
well as the tire pressure screen. The messages are as
follows.
Abnormal status
Meter indicator
display
Meter icon display
(English display)
Remarks
Displayed priority
sequence
Tire pressure low
Abnormal
indicator
lighted
PRESSURE LOW
Flashing
frequency:
Lights up for
1 second
and goes out
for 0.5
second.
Execute according to
the priority sequence
of the event being
detected.
Tire pressure too
high
Abnormal
indicator
lighted
PRESSURE HIGH
Tire pressure
SENSOR voltage
low
Abnormal
indicator
lighted
SENSOR VOL. LOW
Tire pressure
quick deflating
Abnormal
indicator
quick
flickering
P. FAST LEAKAGE
Tire pressure
gradual deflating
Abnormal
indicator slow
flickering
P. SLOW
LEAKAGE
Display the
unintended initial
value.
Picture empty UNPAIRING
Indicator
keeps
lighted
TPMS fails to
receive the signal
from the
SENSOR.
Abnormal
indicator
lighted and “--
” displayed.
Error received and “--”
displayed.
Flashing
frequency:
Lights up
for 1
second
and goes
out for 0.5
second.

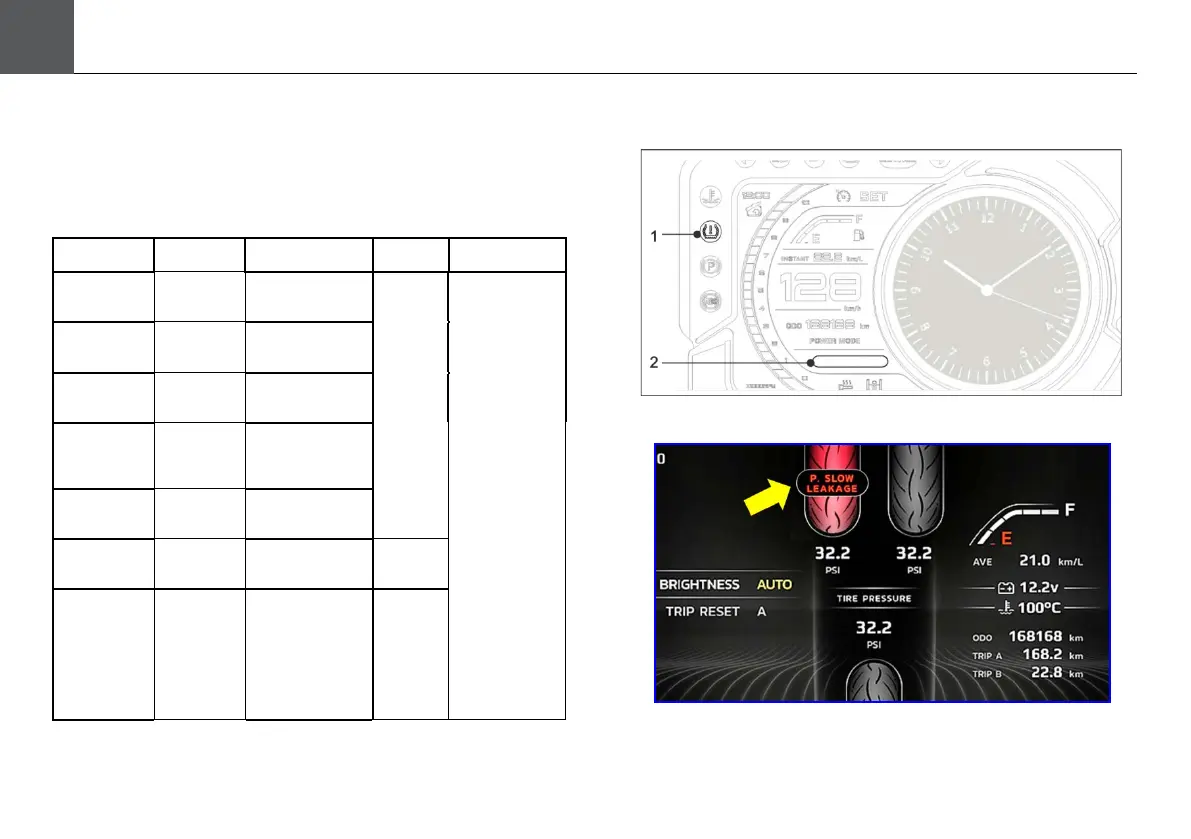

1. Tire pressure indicator 2. Message bar

KYMCO CV3 Series Specifications

General

Displacement	550.4 cc
Front Suspension	Telescopic fork
Rear Tire	160/60-15
Fuel Capacity	15.5 liters (4.1 gallons)
ABS	Yes
Max Power	51 hp @ 7500 rpm
Fuel System	Electronic fuel injection
Transmission	CVT
Front Brake	Dual disc
Rear Brake	Single disc
Weight	280 kg
Seat Height	795 mm
Max Torque	53 Nm @ 5750 rpm
Front Tire	120/70-15
