2LV/2L1/2L2/2MS/2MT
1-5-12
9. Release the lock lever and then slide
the MP paper feed pulley axis.
10. Remove MP paper feed pulley.
11. Check or replace the MP paper feed
pulley and refit all the removed parts.

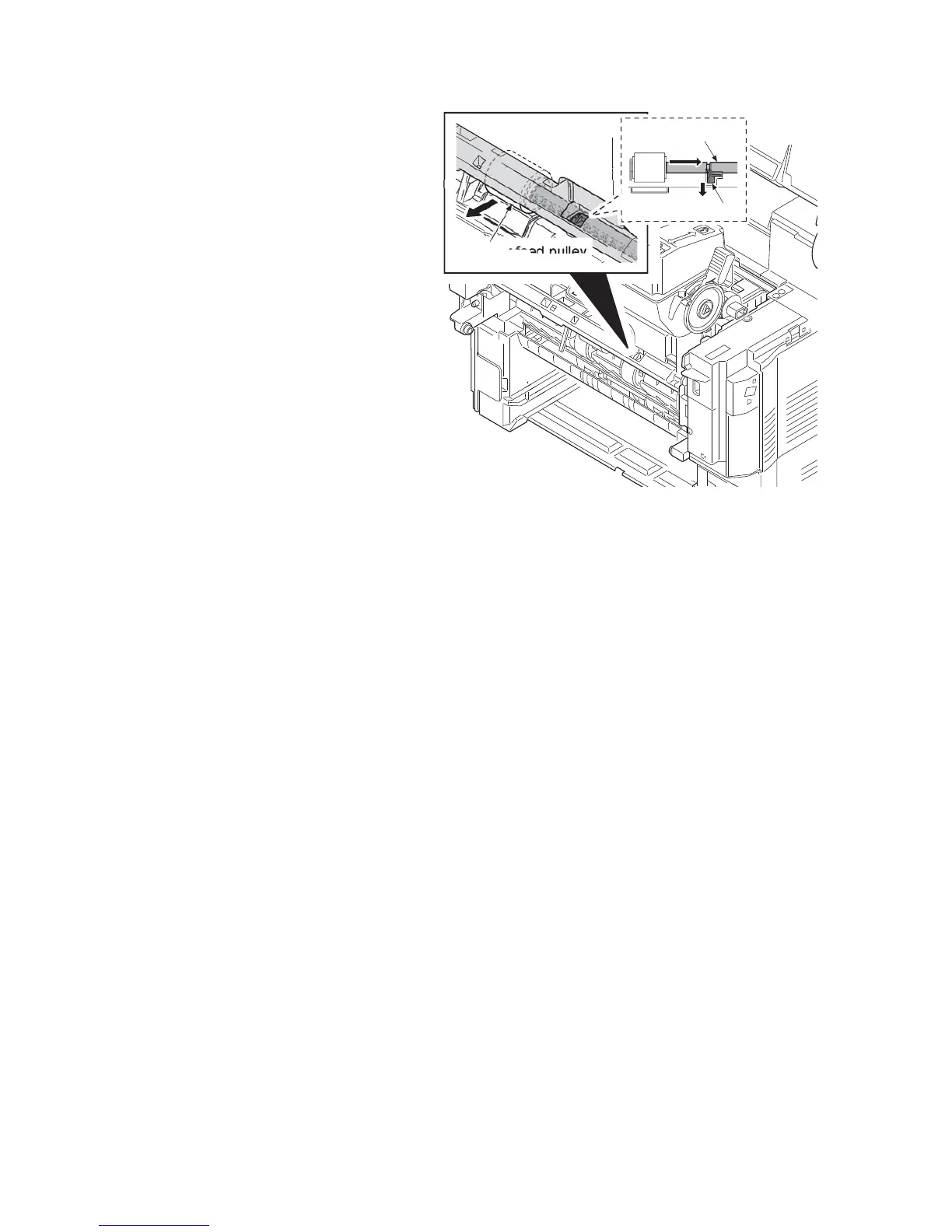

Figure 1-5-19
Lock lever
MP paper feed
pulley axis
MP paper feed pulley
