Kyocera ECOSYS FS-4300DN Service Manual

2LV/2L1/2L2/2MS/2MT
1-4-2
(2-2) PF-315+ (Bulk Paper Feeder)

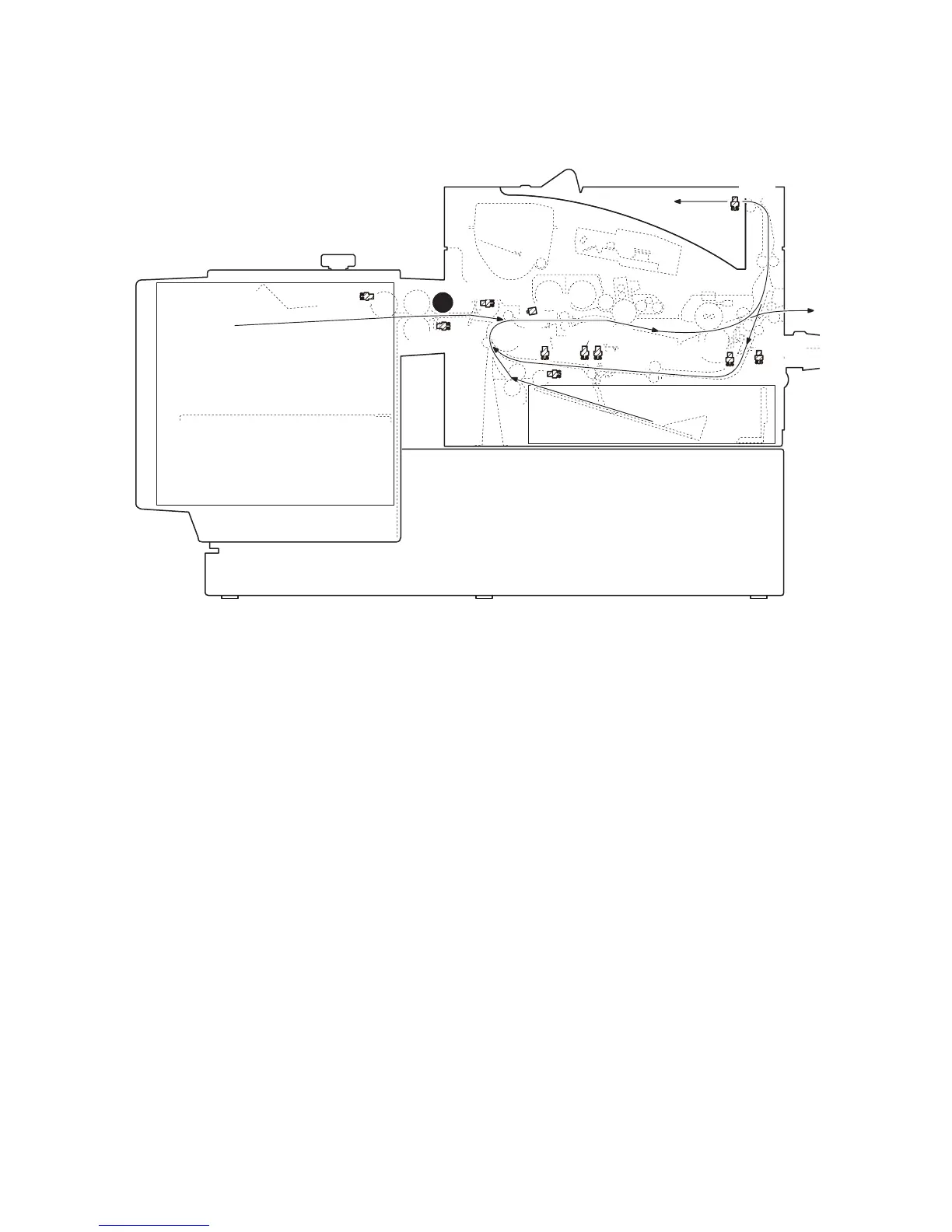

Figure 1-4-2 Paper jam location
EFS
DUS1
ES
DUS2
PS1/PS2
RS1(3)
RS2
MPPS
LS
PFLS5
PFPFS5
D
(A)Misfeed in cassette1
(B)Misfeed in paper feed section
(C)Misfeed in MP tray
(D)Misfeed in bulk paper feeder (Option)
(E)Misfeed in cassette2 (Option)
(F)Misfeed in cassette3 (Option)
(G)Misfeed in cassette4 (Option)
(H)Misfeed in cassette5 (Option)
(I)Misfeed in exit conveying section
(J)Misfeed in rear cover section
(K)Misfeed in duplex conveying section
(L)Misfeed in fuser section
