2LV/2L1/2L2/2MS/2MT
2-1-3
(3) Conveying section
The conveying section conveys paper to the transfer/separation section as paper feeding from the cassette or
MP tray, or as paper refeeding for duplex printing. Paper by feeding is conveyed by the paper feed roller to the
position where the registration sensor (RS) is turned on, and then sent to the transfer/separation section by
the upper registration roller and lower registration roller.

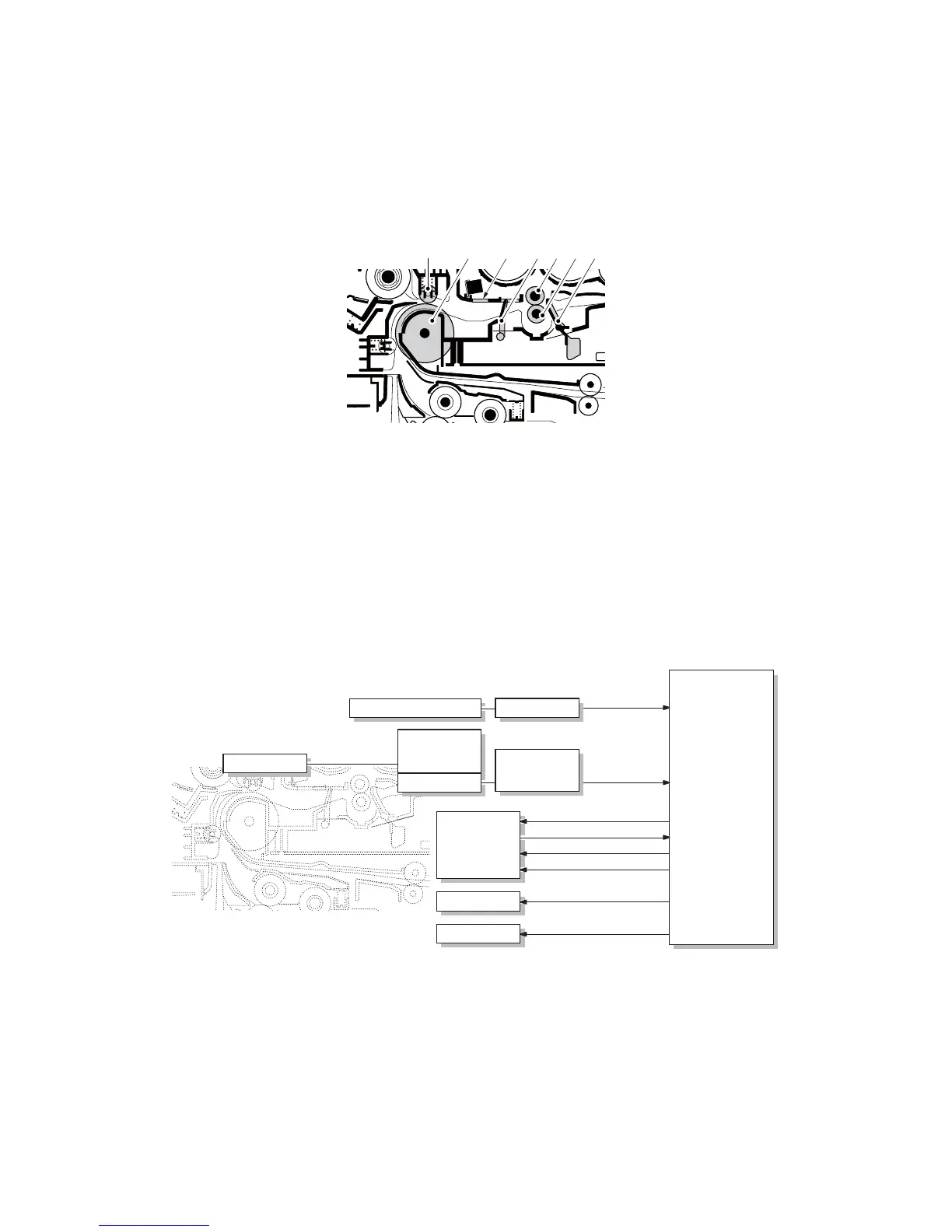

Figure 2-1-5 Conveying section
Figure 2-1-6 Paper conveying section block diagram
*1: 40ppm model only
*2: 60/50/45 ppm model only
1 5 6 7
2
3
4
1. Middle feed roller
2. Feed DU pulley
3. Upper registration guide
4. Actuator
(Registration sensor 1 (RS1)) *1
5. Upper registration roller
6. Lower registration roller
7. Actuator
(Registration sensor 3 (RS3)) *2
YC4-1
YC4-2
YC4-3
YC4-4
YC5-6
MMOTCW
MMOTRDYN
MMOTCLKN
MMOTONN
REGCLN
6
MM 5
4
3
RCL
EPWB
YC2-21YC3-9
RS1 *1 / RS3 *2
REGSEN2
YC19-12
HVPWB
R-LPWB
REGSENSN
RS2 *2
REGSEN2
DRRPWB
YC6-2
DRPWB
YC5-8
MIDCLN
PCCL *2
To Next Page
