2PK/2PL/2PM/2PN
1-5-7
4. Check or replace the paper feed
assembly and refit all the removed
parts.

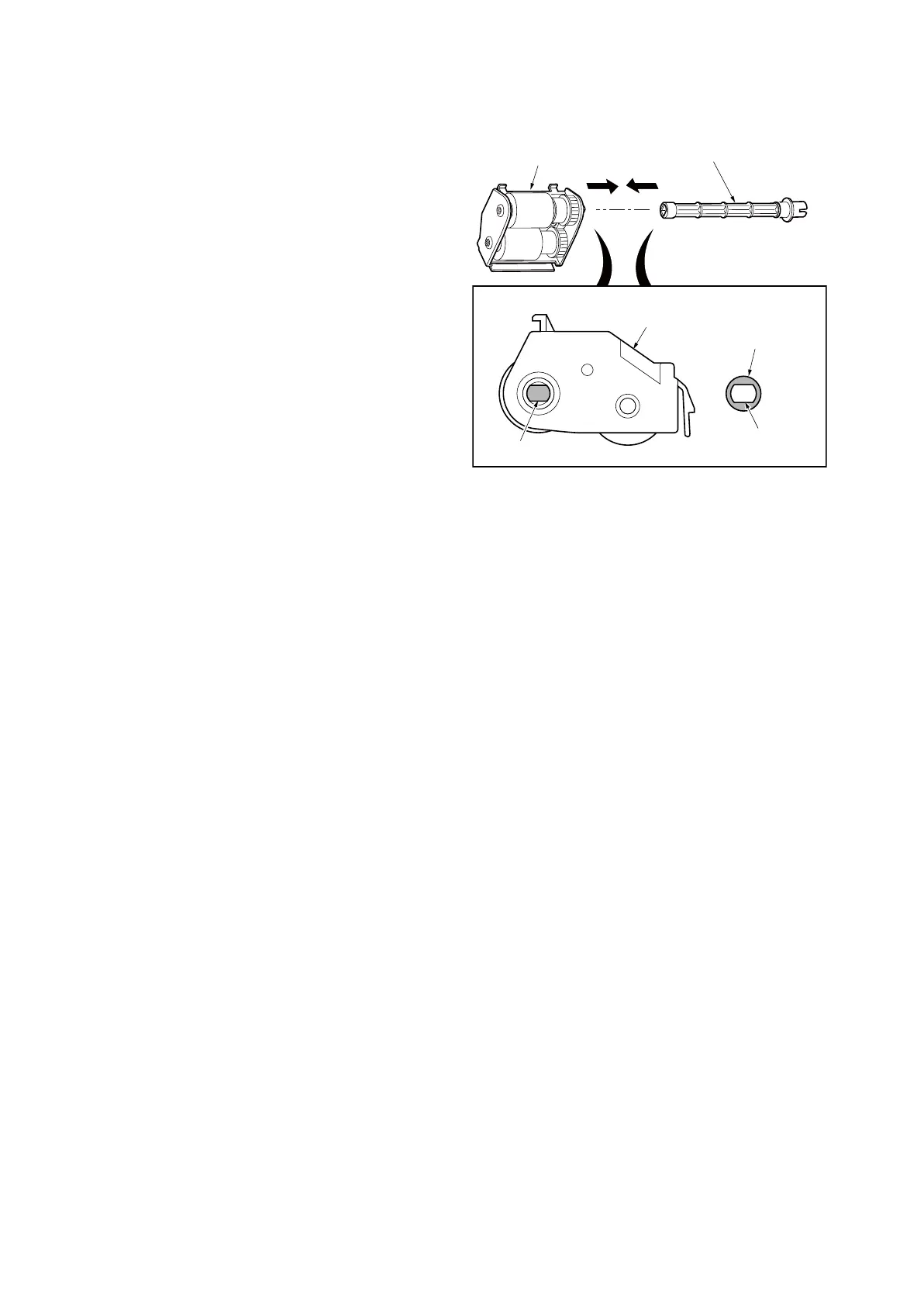

When refitting the paper feed roller
assembly, be sure to align the paper
feed roller pivot with the slotted hole on
the feed shaft.
Figure 1-5-9
Paper feed roller
assembly
Paper feed roller
assembly
Feed shaft
Feed shaft
Pivot
Slotted hole
