5. Check or replace the retard roller
assembly and refit all the removed
parts.
Caution: Before refitting the retard roller
assembly, firmly install the spring onto
the projection of the retard roller assem-
bly.

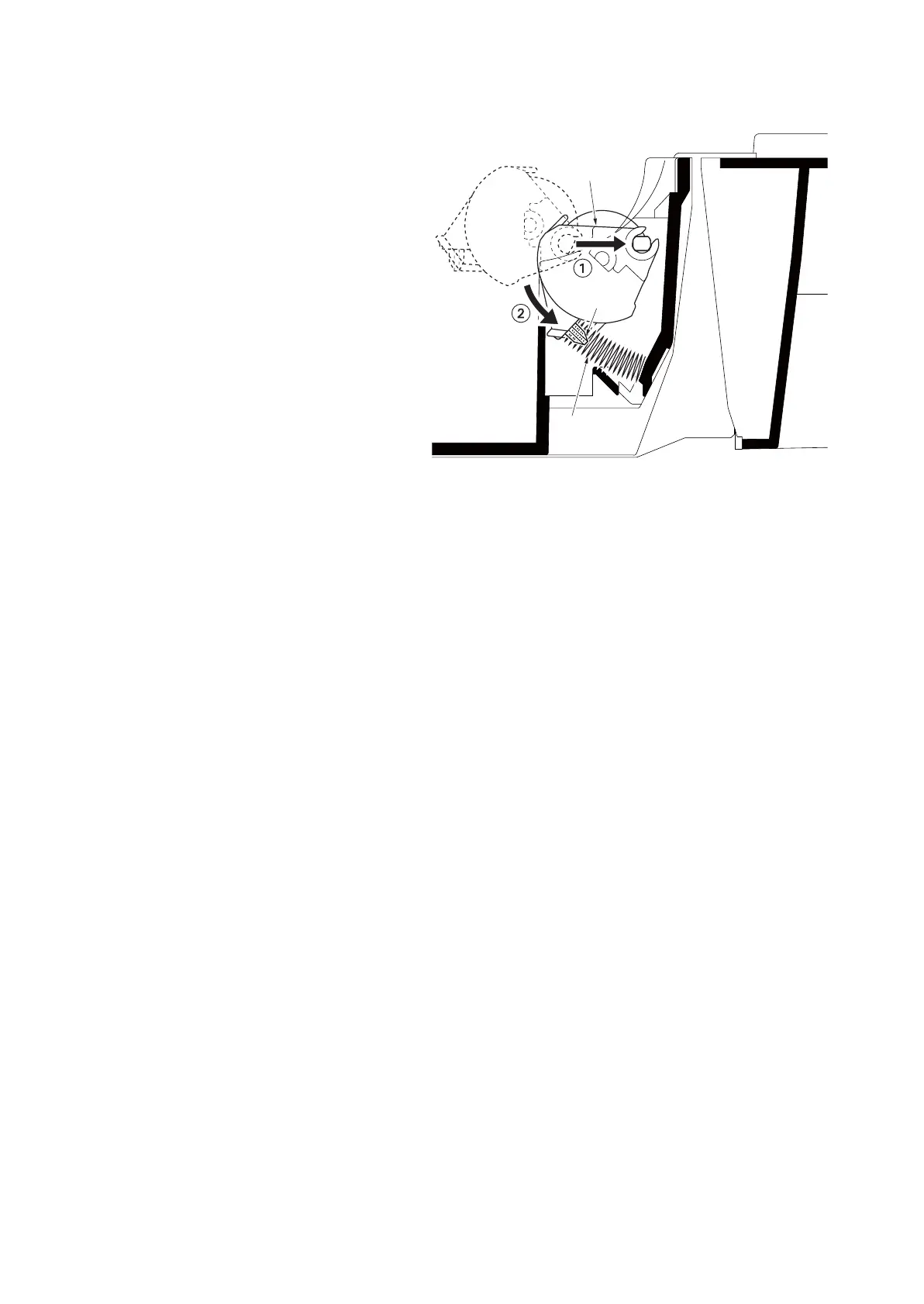

Figure 1-5-12
Spring
Retard roller
assembly
Projection
