2PK/2PL/2PM/2PN
1-5-41

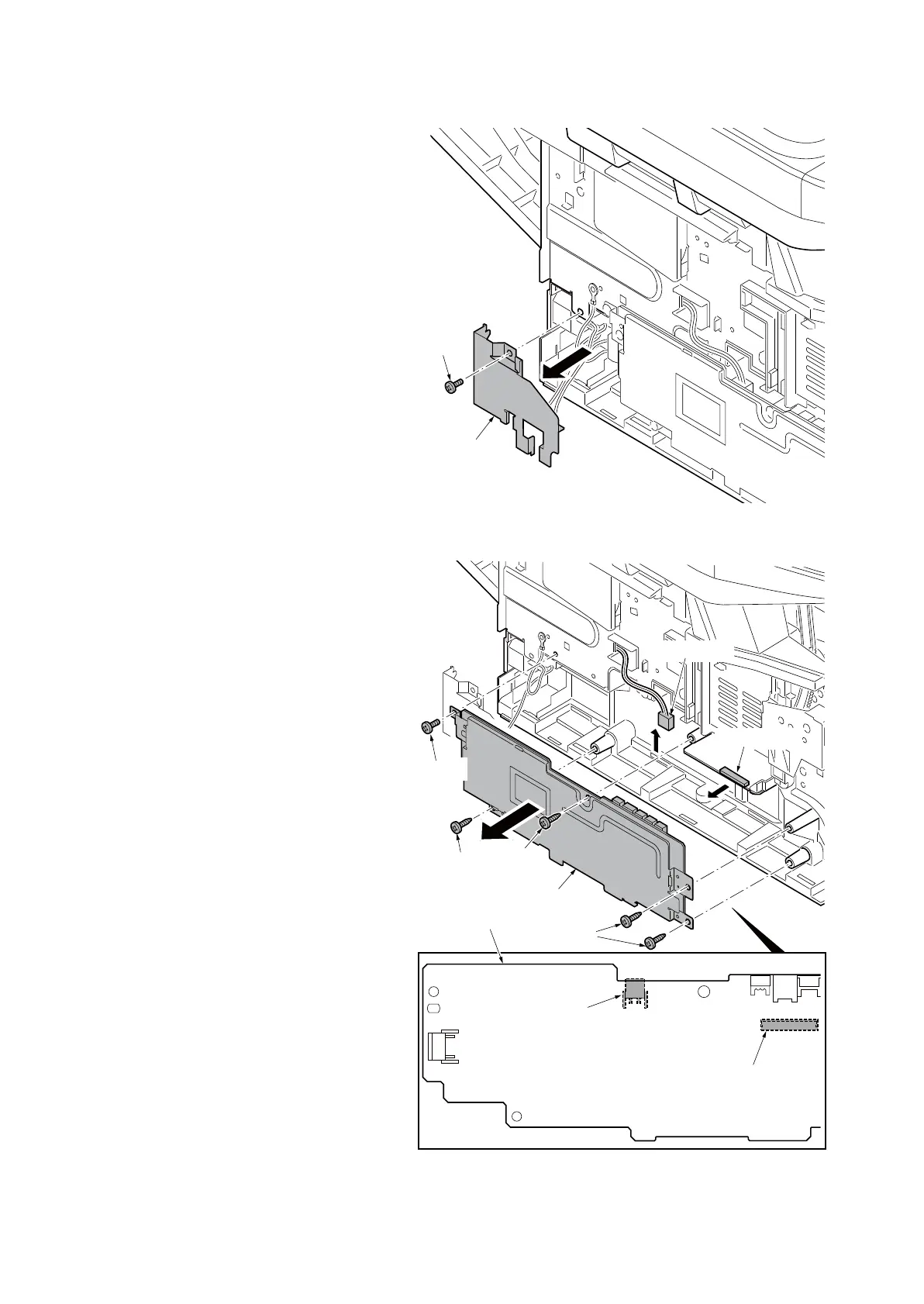

6. Remove the screw and then detach the
inlet mount.
Figure 1-5-61
7. Remove five screws.
8. Remove two connectors and then
remove the power source PWB assem-
bly.
Figure 1-5-62
Inlet mount
Screw
YC103
YC102
Power source PWB
Power source
PWB assembly
Connector
Connector
Screw
Screw
Screw
Screws
Connector
Connector
