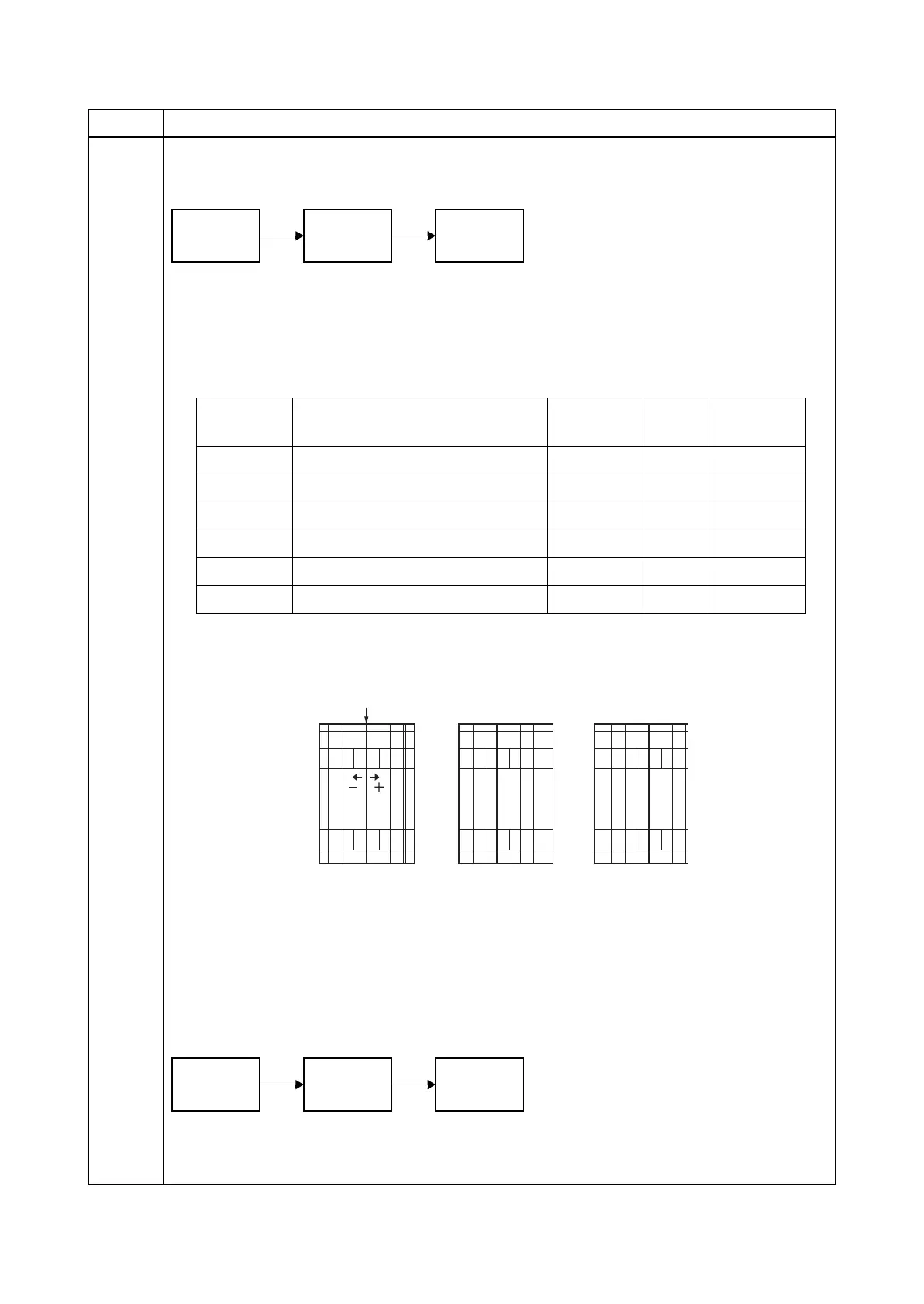

2PK/2PL/2PM/2PN-5
1-3-18
U034 Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following
adjustments in maintenance mode.
Adjustment: [LSU Out Left]
1. Press the system menu key.
2. Press the start key to output a test pattern.
3. Press the system menu key.
4. Select the item to be adjusted.
5. Change the setting value using the cursor left/rigrt keys or numeric keys.
For output example 1, increase the value. For output example 2, decrease the value.
Figure 1-3-3
6. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following
adjustments in maintenance mode.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
U034
U066
(P.1-3-21)
U071
(P.1-3-25)
Display Description
Setting
range
Initial
setting
Change in
value per step
Left Standard value 0 to 1180 600 1 dot
MPT Paper feed from MP tray -70 to 70 0 1 dot
Cassette1 Paper feed from optional cassette1 -70 to 70 0 1 dot
Cassette2 Paper feed from optional cassette2 -70 to 70 0 1 dot
Cassette3 Paper feed from optional cassette3 -70 to 70 0 1 dot
Duplex Duplex mode (second) -70 to 70 0 1 dot
Center line of printing
(within ± 2.0 mm)
Correct image
Output
example 1
Output
example 2
U034
U067
(P.1-3-22)
U072
(P.1-3-27)
To Next Page
