2PK/2PL/2PM/2PN-5
1-3-36

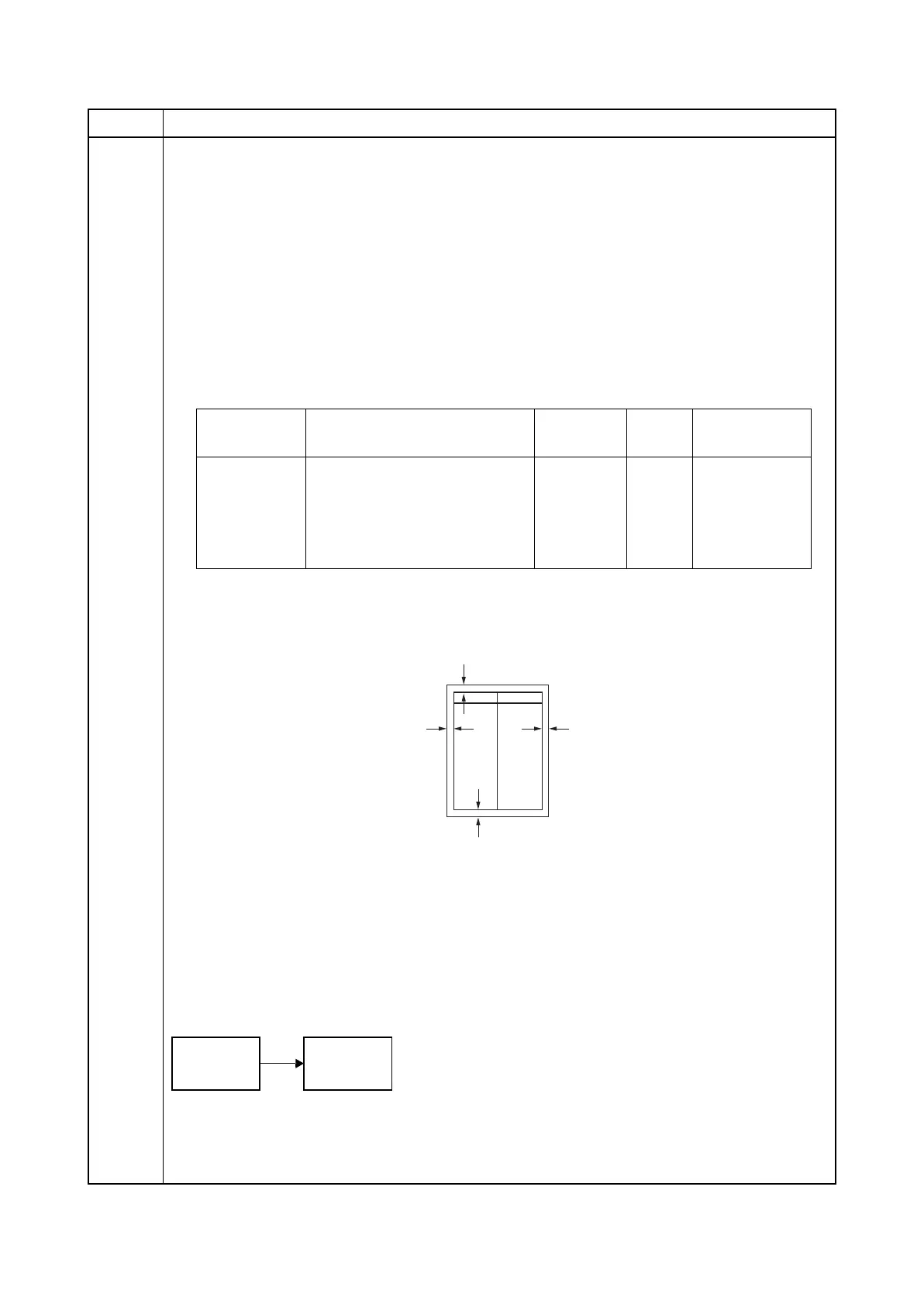

U402 Adjust Print Margin
Description
Adjusts margins for image printing.
Purpose
Make the adjustment if margins are incorrect.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Press the start key to output a test pattern.
4. Press the system menu key.
5. Select the item to be adjusted.
6. Change the setting value using the cursol left/right keys or numeric keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.
Figure 1-3-12
7. Press the start key. The value is set.
Caution
If the above adjustment does not optimize the margins, perform the following maintenance
modes.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
Lead Printer leading edge margin 0.0 to 10.0 4.0 0.1mm
A Margin Printer left margin 0.0 to 10.0 3.0 0.1mm
C Margin Printer right margin 0.0 to 10.0 3.0 0.1mm
Trail Printer trailing edge margin 0.0 to 10.0 3.9 0.1mm
Printer leading edge margin
(4.0 +1.5/-1.0 mm)
Printer
left margin
(2.5 +1.5/-2.0 mm)
Printer
right margin
(2.5 +1.5/-2.0 mm)
Printer trailing edge margin
(4.0 mm or less)
