(5) Detaching and refitting the FAX control PWB
Procedure
1. Unhook the hook and then remove the
controller box cover.

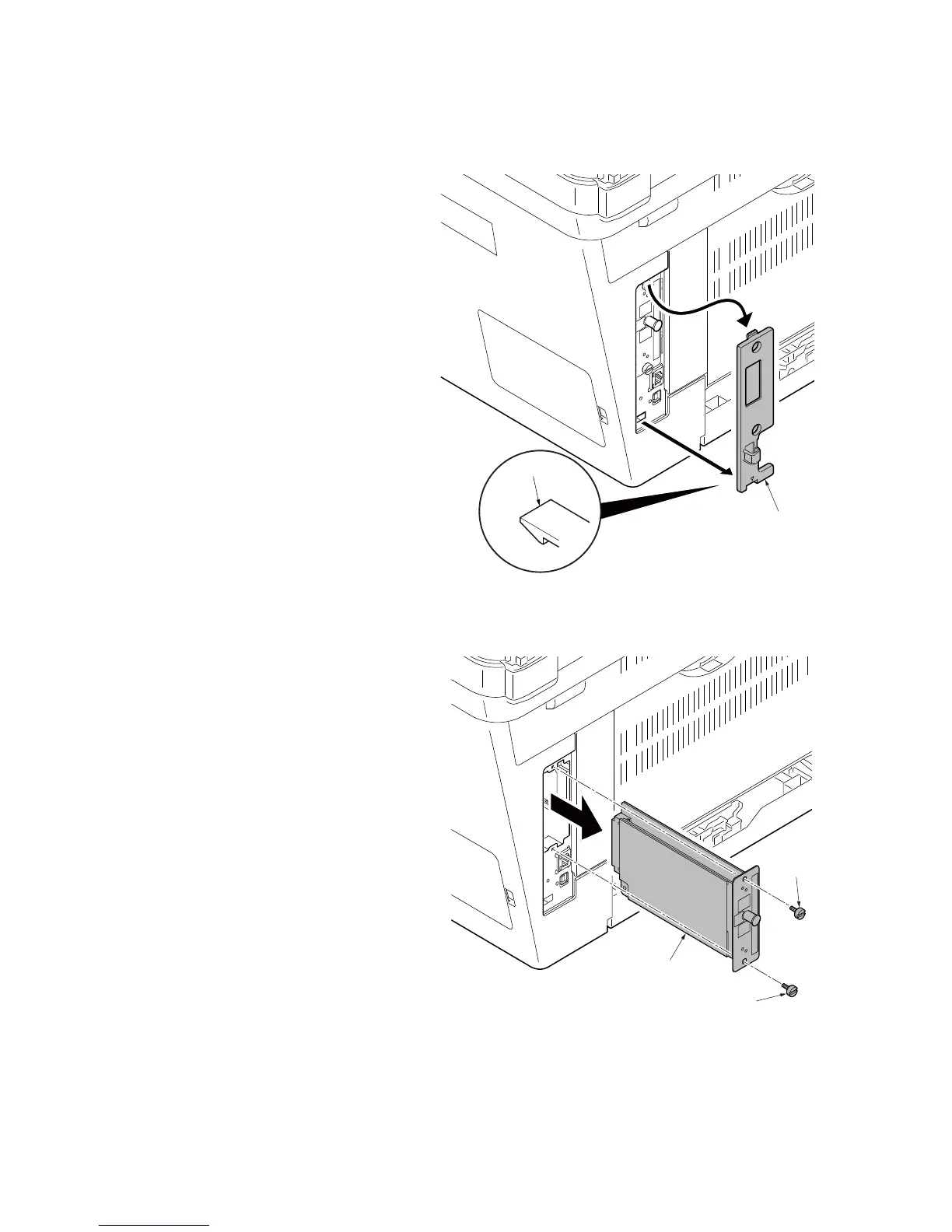

Figure 1-5-72
2. Remove two screws and then remove
the FAX control PWB.
3. Check or replace the FAX control PWB
and refit all the removed parts.
Figure 1-5-73
Controller box cover
Hook
FAX control PWB
Screw
Screw
