Kyocera FS-1030MPF

2MH/2MJ/2MK/2ML
2-1-20
2-1-9 Duplex/conveying section
The duplex/conveying section consists of conveying path which sends the paper sent from the exit section to
the paper feed/conveying section when duplex printing.

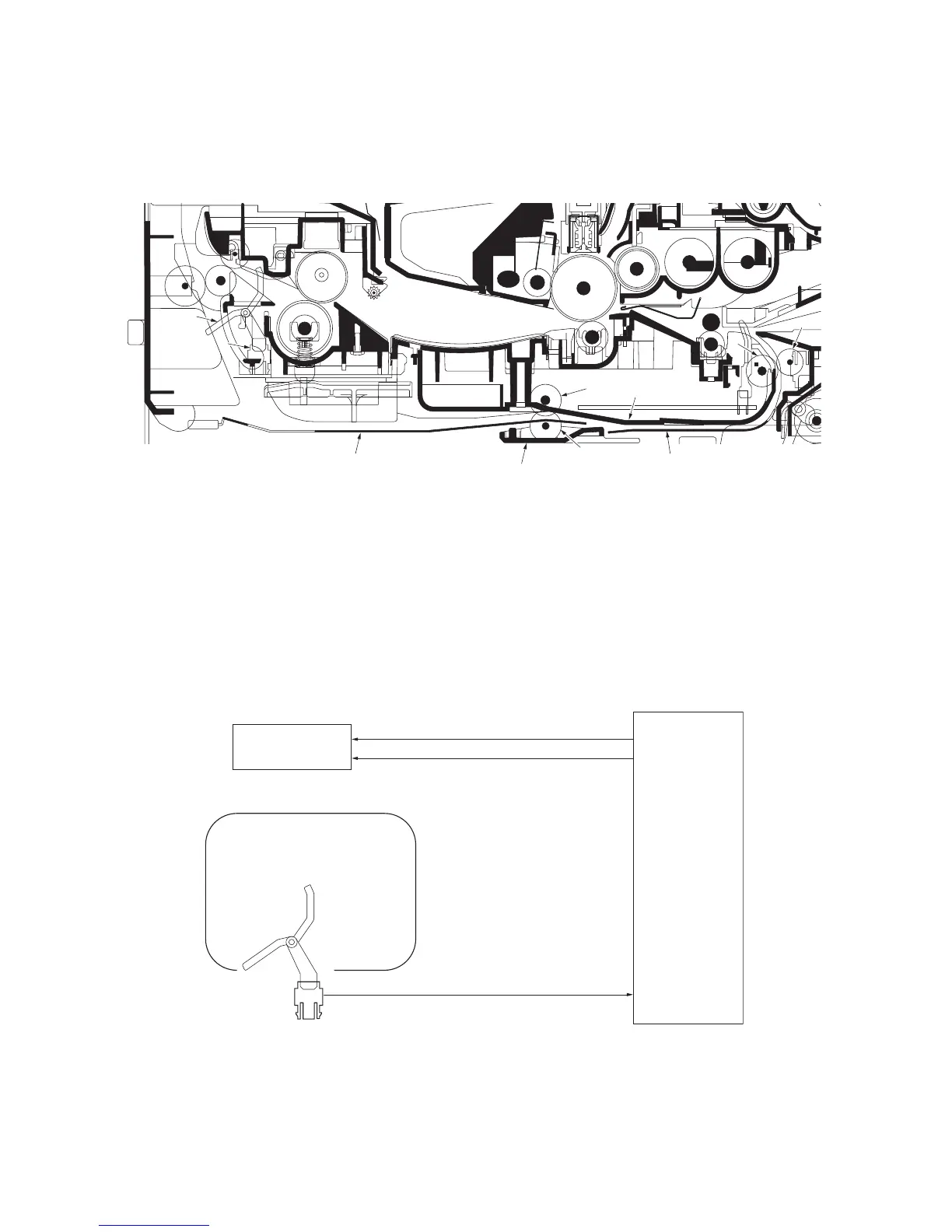

Figure 2-1-25 Duplex/conveying section
Figure 2-1-26 Duplex/paper conveying section block diagram
1
9
10
2
3
5
6
7
4
8
1. DU cover B
2. DU holder
3. Middle pulley B
4. DU roller
5. DU cover A
6. Lower base cover
7. Feed roller
8. Feed pulley
9. Exit sensor
10. Actuator (exit sensor)
EXITN
DUDR1
DUDR2
YC19-3
YC29-1
YC29-3
Fuser unit
ES
DUSOL
CONPWB
