Setup and Connections
1- 22
Parallel Interface Connection
1. Plug one end of the printer cable into the connector on the printer marked with a (parallel)
symbol.
2. Close the clips on both sides to fix the connector in place.
3. Plug the other end of the printer cable into the computer’s parallel (Centronics) interface
connector. This connector is usually labled PRINTER. For details, please refer to the hardware
manual for the computer.

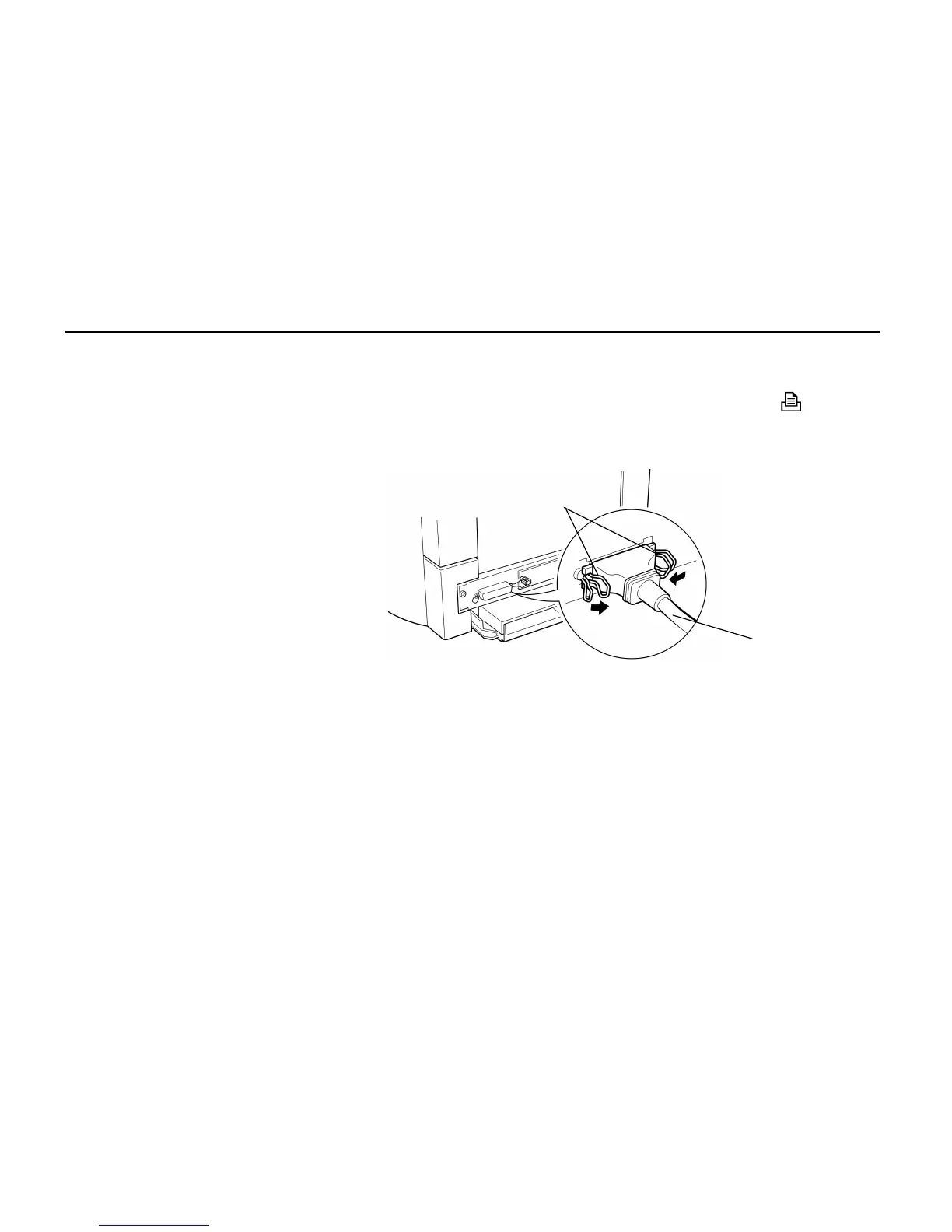

Clips
Printer Cable
Rear panel
