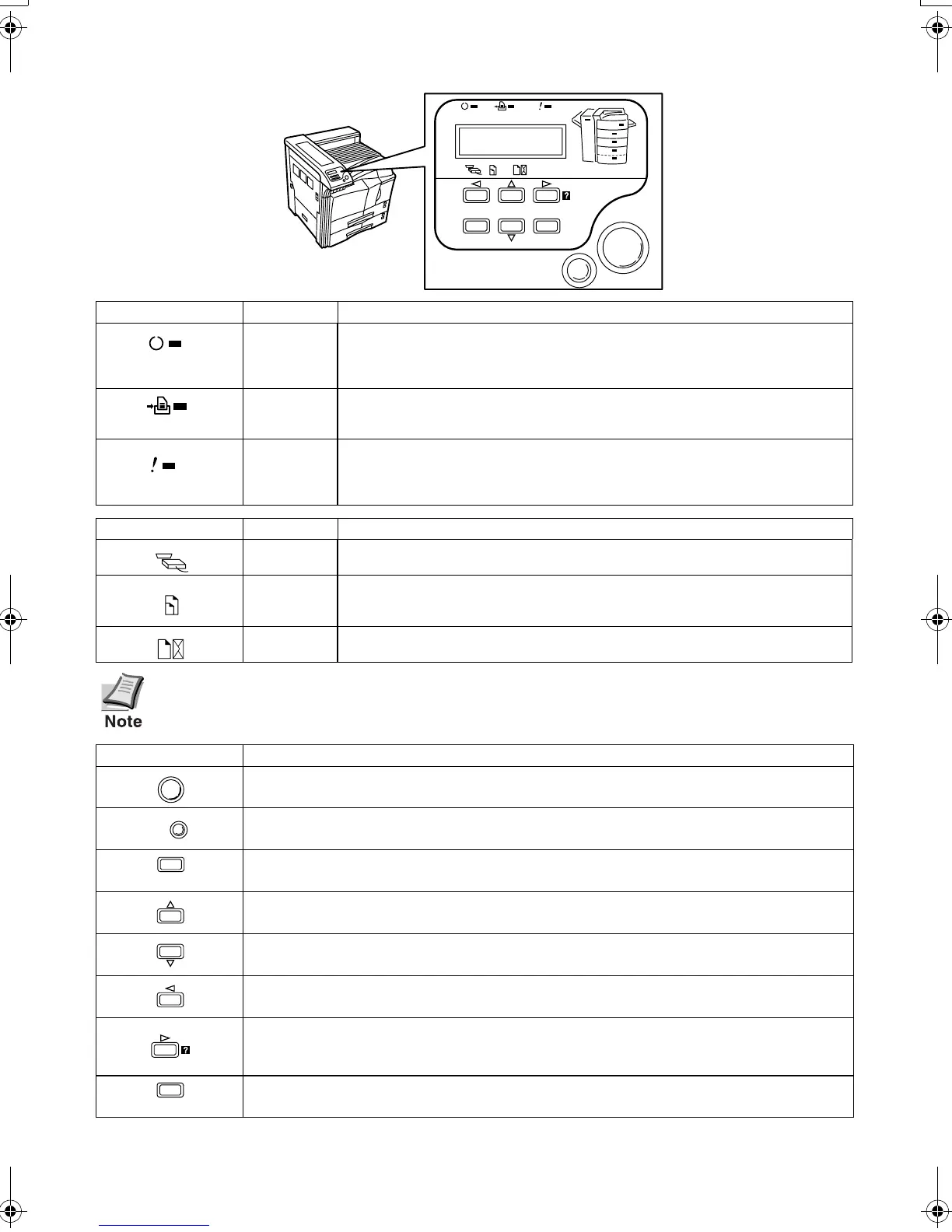

Operator Panel
For more details on operating procedures, see the Operation Guide contained as a PDF file in the Kyocera Mita Digital
Library CD-ROM supplied with the printer.
2001.8
Printed in China 2BK80011B
ENTER
GO
CANCEL
MENU
READY
INTERFACE SIZE TYPE
DATA ATTENTION
Ready
-
-
-
A4 PLAIN
Indicator Name Description
Ready
indicator
Flashing:
Indicates when an error occurs that you can clear by yourself.
Lit:
Indicates that the printer is on-line. Printing is possible.
Off:
Indicates that the printer is off-line. Data can be received but will not be printed.
Also indicates when printing is automatically stopped due to occurrence of an error.
Data
indicator
Flashing: Indicates data transfer is taking place.
Lit: Indicates either that data is being processed, or that data is being written to
the memory card.
Attention
indicator
Flashing: Indicates when the printer needs maintenance attention or the printer
is warming up (Please wait).
Lit: Indicates when a problem or an error occurs that you can clear by yourself.
(For example, paper jam occurs.)
READY
DATA
ATTENTION
Message Display Name Description
Interface
indicator
The interface indicator shows which of the printer’s interfaces is currently active.
The default is no selection (---).
Paper size
indicator
Interface indicator Paper size indicator Indicates the paper size of the current
paper cassette. The default is letter size (LT) for the U.S.A. and A4 (A4) for Euro-
pean countries.
Paper type
indicator
Paper type indicator Indicates the paper type of the current paper cassette. The
default is PLAIN.
INTERFACE
SIZE
TYPE
If the number of pages to be printed is set to 2 or more, when printing starts, the lower
line of the message display shows the number of printed pages/set number of pages
to be printed.
Key Function
• Switches the printer on-line and off-line.
• Prints and feed out one page.
• Abandons a printing job, resets numeric values, or cancels a setting procedure.
• Used to stop the sounding of the alarm buzzer indicating the occurrence of an error.
• When pressed during mode selection, terminates the setting and returns to the Ready condition.
• Used to select the emulation, font, character code set; to read an memory card and others.
Lets you access the desired item or enter numeric values. In some of the control procedures,
the 1
11
1 and 2
22
2 keys are used to enter or exit the sub items.
Enables access to the desired item or entering of numeric values. In some of the control proce-
dures, the 1
11
1 and 2
22
2 keys are used to enter or exit the sub items.
Used as the 1
11
1 key in the mode selection function.
• Used as the 2
22
2 key in the mode selection function.
• Displays online help messages on the message display when paper jam errors occur.
Finalizes numeric values and other selections.
GO
CANCEL
MENU
ENTER
