Options
3-6
4

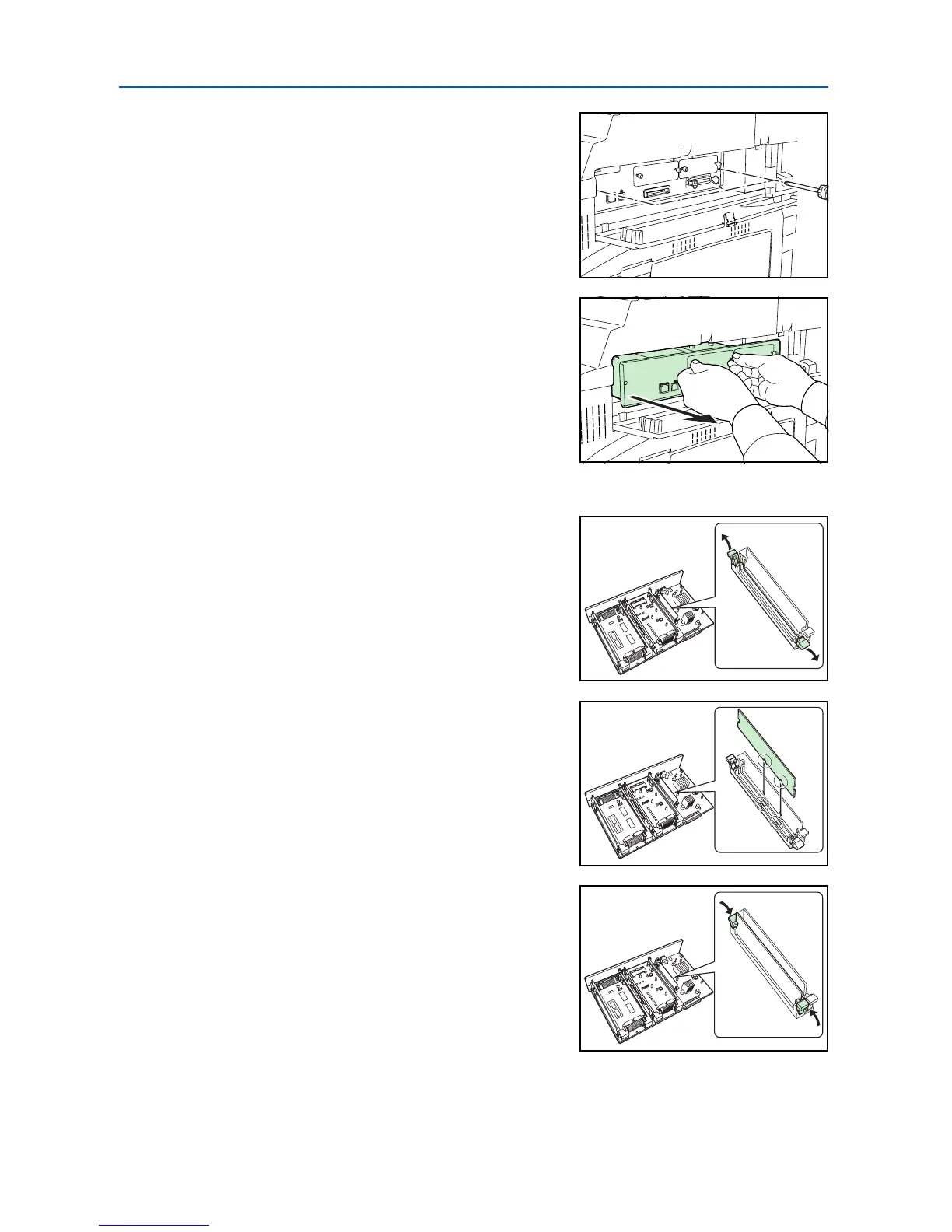

Remove two screws on the main controller board.
5
Slowly remove the main controller board from the
printer.
6
Remove the DIMM from its package.
7
Open the clips on both ends of the DIMM socket.
8
Insert the expansion memory with terminals down by
matching the latch of the memory module and the
projection of the DIMM socket.
9
Close the clips of the DIMM socket to secure the
DIMM.
10
When you finish installing the DIMM, reinstall the main controller board and fasten it with the screw.
11
Replace the memory card cover in the original position.
