Using the Operation Panel
2-25
Changing Serial Interface Parameters
NOTE: This section applies to the printer having the optional serial interface board kit (IB-11)
installed.
You can confirm or change the serial interface parameters including baud rate, data bits, stop bits,
parity, and protocol. These parameters must match those of the computer’s serial interface.
1
Press [Menu].
2
Press or repeatedly until Interface > appears.
3
If the interface is other than serial, press [OK]. A blinking question
mark (?) appears.
4
Press or repeatedly until Serial appears.
5
Press [OK] again.
6
Press . One of the following serial parameters is indicated (Baud rate for example).

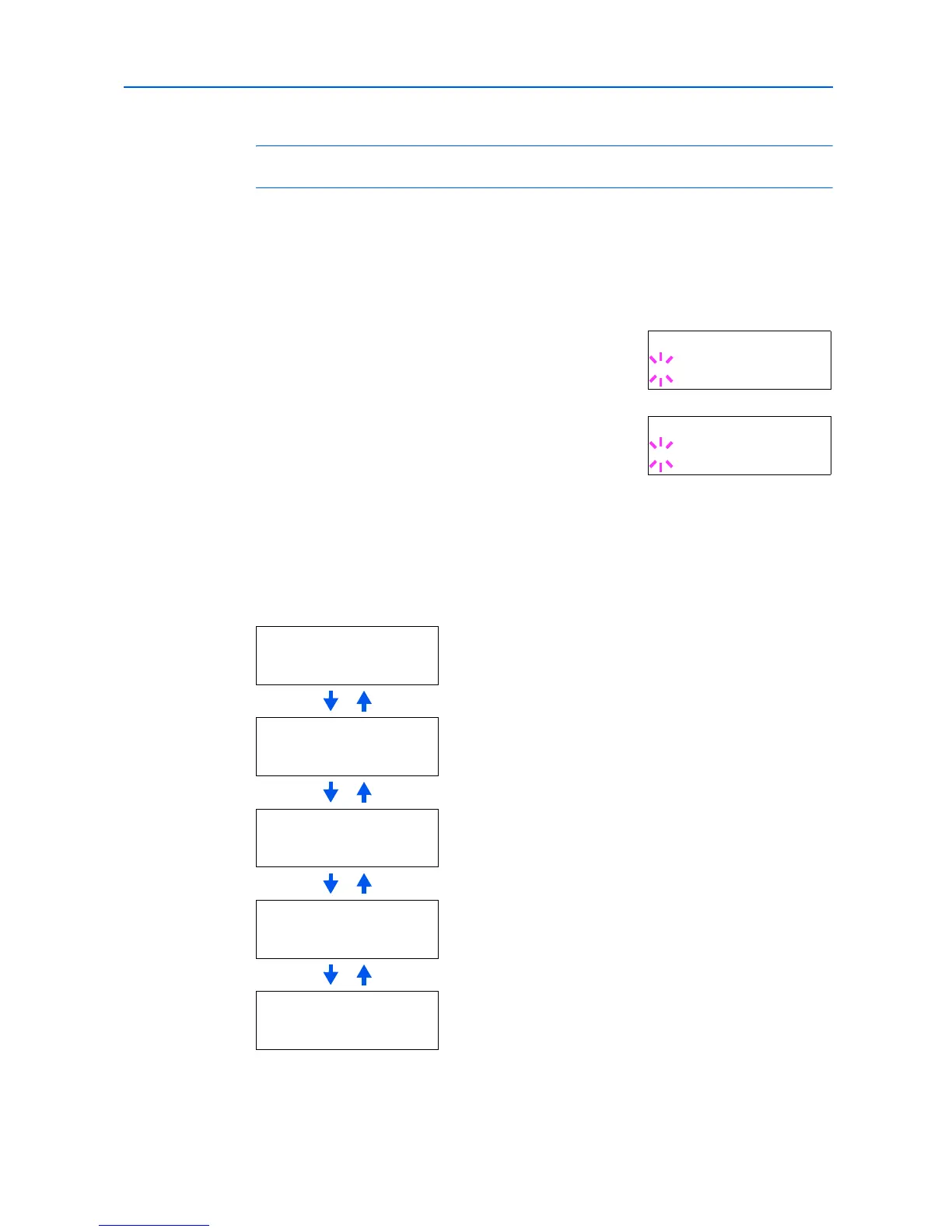

Pressing or toggles through the serial parameters as follows. To change the serial parameter,
press [OK]. Use or to change the value or selection.
Interface
? Parallel
Interface
? Serial
Range
>Baud Rate
9600
1200, 2400, 4800, 9600 (Default), 19200, 38400, 57600,
115200
>Data Bits
8
7 or 8 (Default)
>Stop Bits
1
1 (Default) or 2
>Parity
None
None (Default), Odd, Even, or Ignore
>Protocol
DTR(pos.)&XON
DTR(pos.)& Xon (Default), DTR(positive),
DTR(negative), XON/XOFF, or ETX/ACK
