Maintenance 5-7

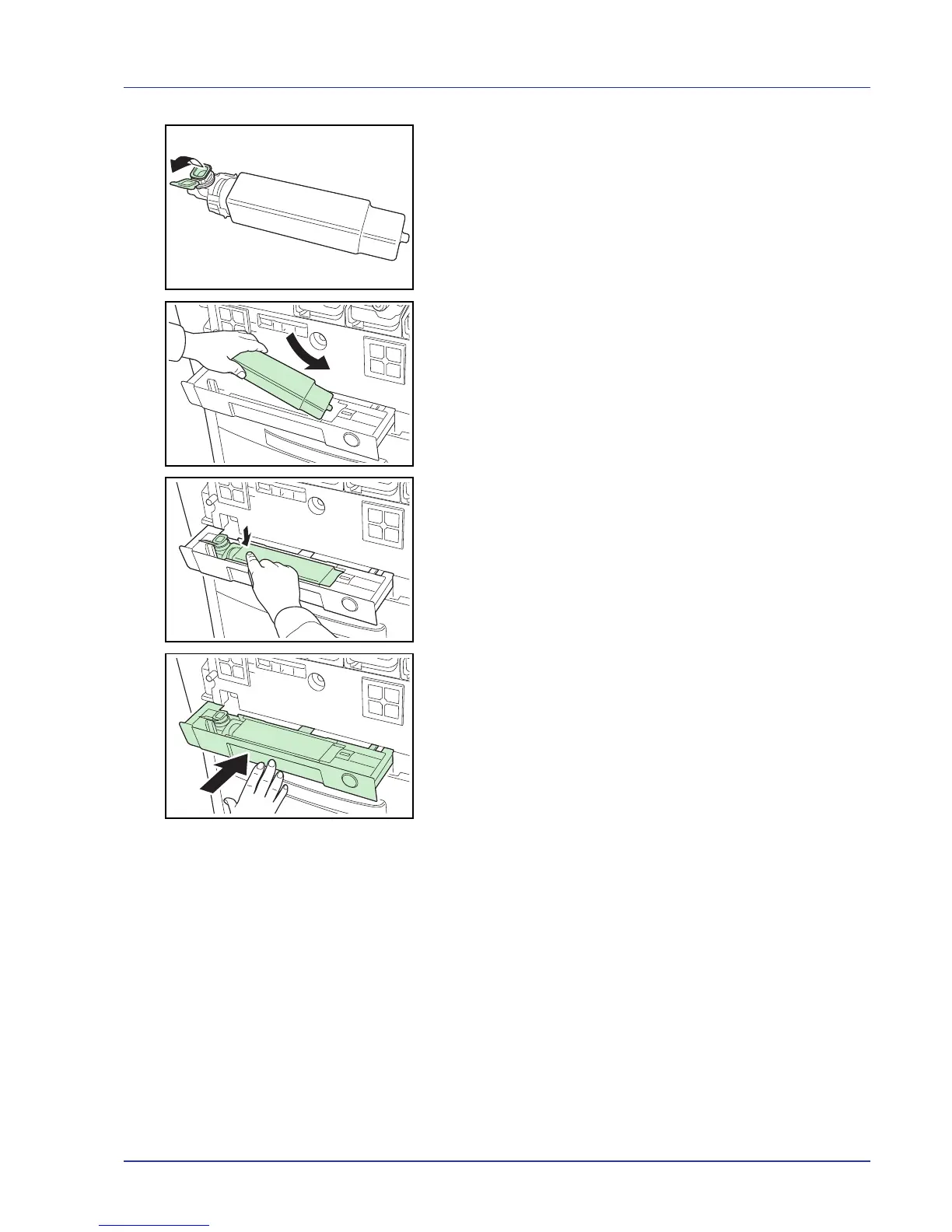

6 Open the cap of the new waste toner box.
7 Install the new waste toner box.
8 Press on the left edge of the new waste toner box to lock it.
9 Press the specified position to set the waste toner tray. When the tray
reaches the correct position, it locks into place with a "click" sound.
10
Close the front cover.
After replacing the toner containers and the waste toner box, clean the
paper transfer unit. For instructions, refer to Cleaning the Printer on page
5-8.
