Troubleshooting > Clearing Paper Jams

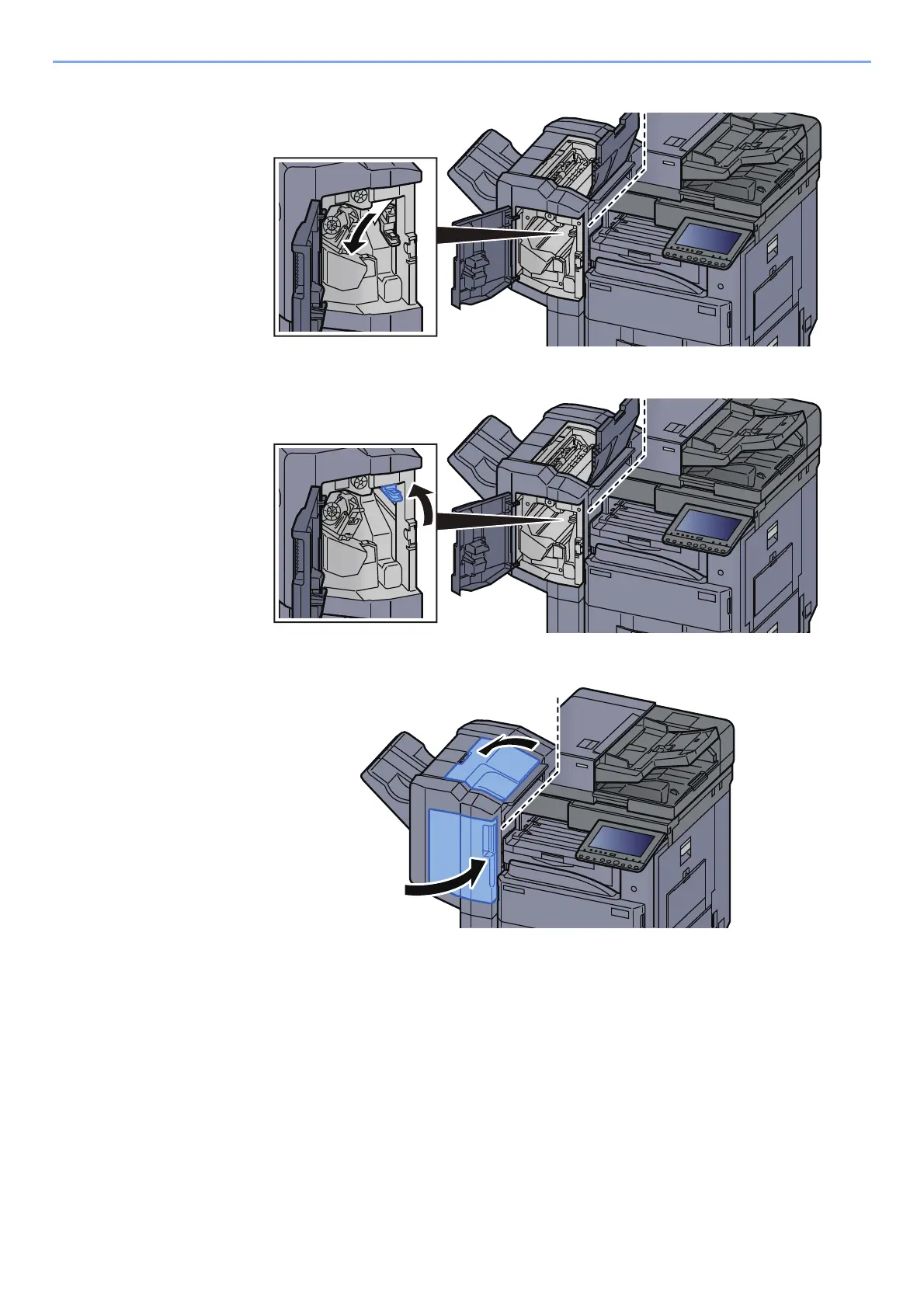

Remove any jammed paper.

Return the conveyor guide (D1) to the original position.

Return the covers to the original position.
