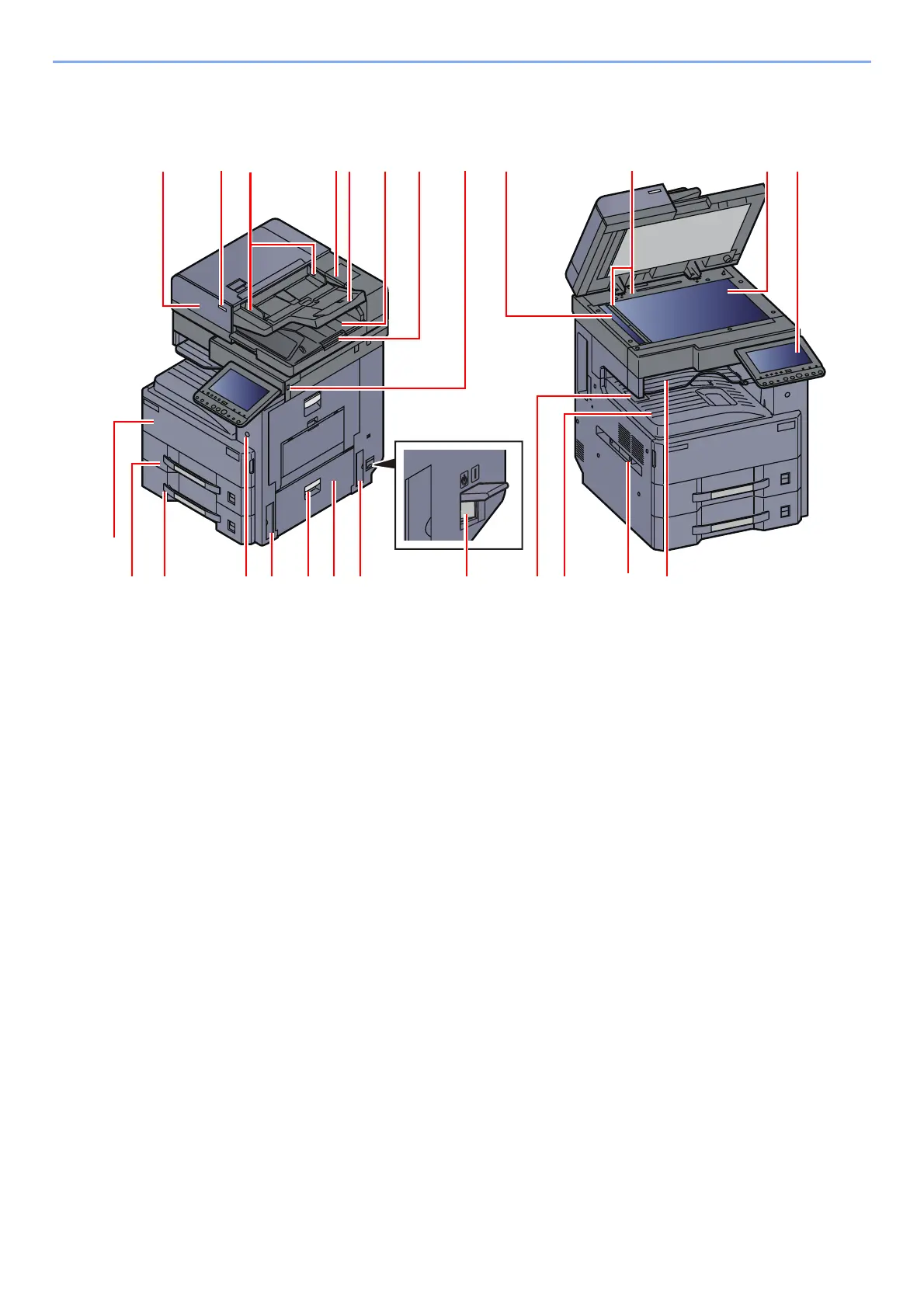

Part Names (Machine Exterior)
1 Document Processor
2 Original Loaded Indicator
3 Original Width Guides
4 Cleaning Cloth Compartment
5 Original Table
6 Original Eject Table
7 Original Stopper
8 USB Memory Slot
9 Slit Glass
10 Original Size Indicator Plates
11 Platen
12 Operation Panel
13 Front Cover
14 Cassette 1
15 Cassette 2
16 Power Switch
17 Handles
18 Right Cover 2 Lever
19 Right Cover 2
20 Main Power Switch
21 Paper Stopper
22 Inner Tray
23 Job Separator Tray
