Troubleshooting > Clearing Paper Jams

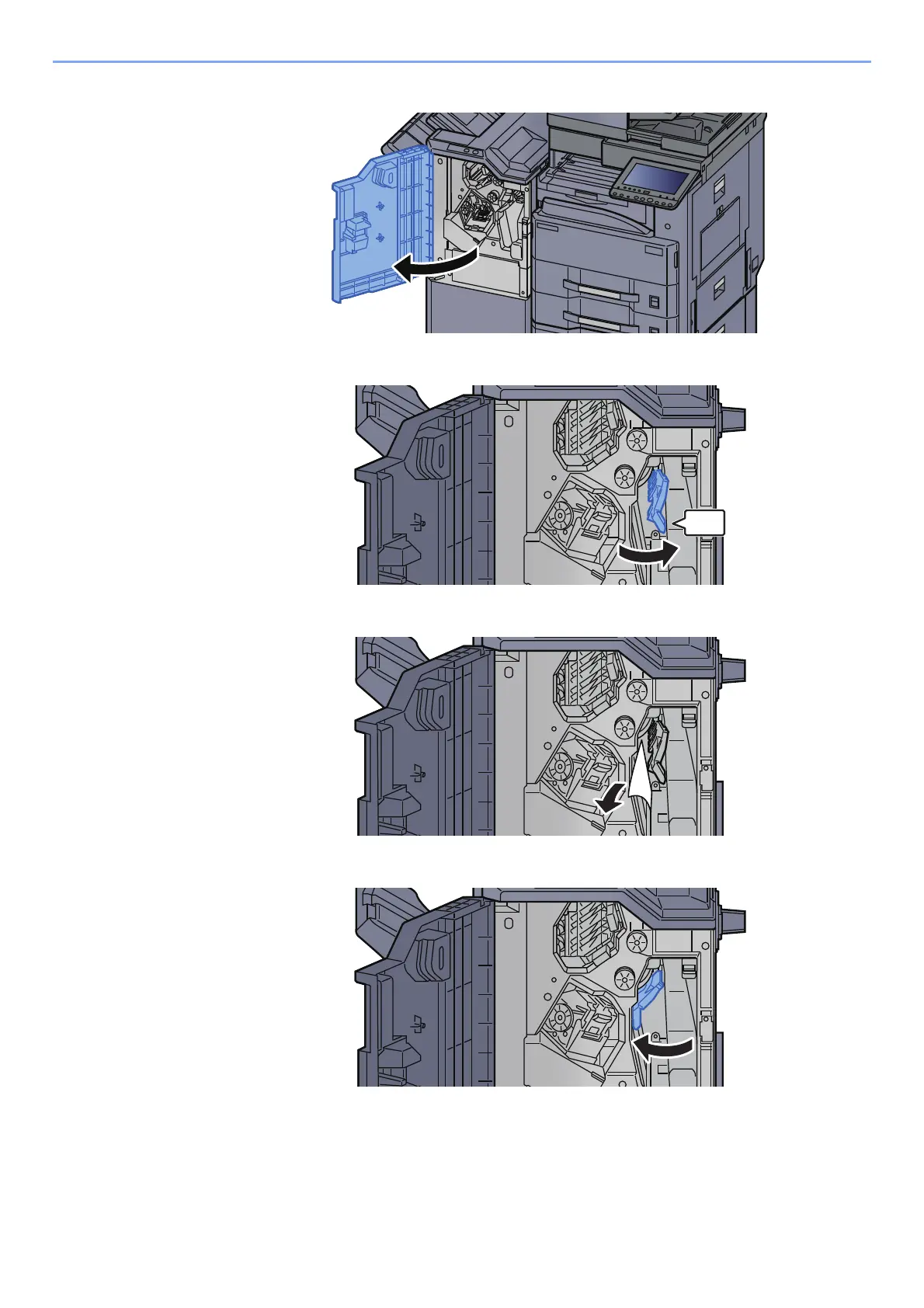

Open the finisher front cover.

Open the conveyor guide (D6).

Remove any jammed paper.

Return the conveyor guide (D6) to the original position.
