Troubleshooting > Clearing Paper Jams

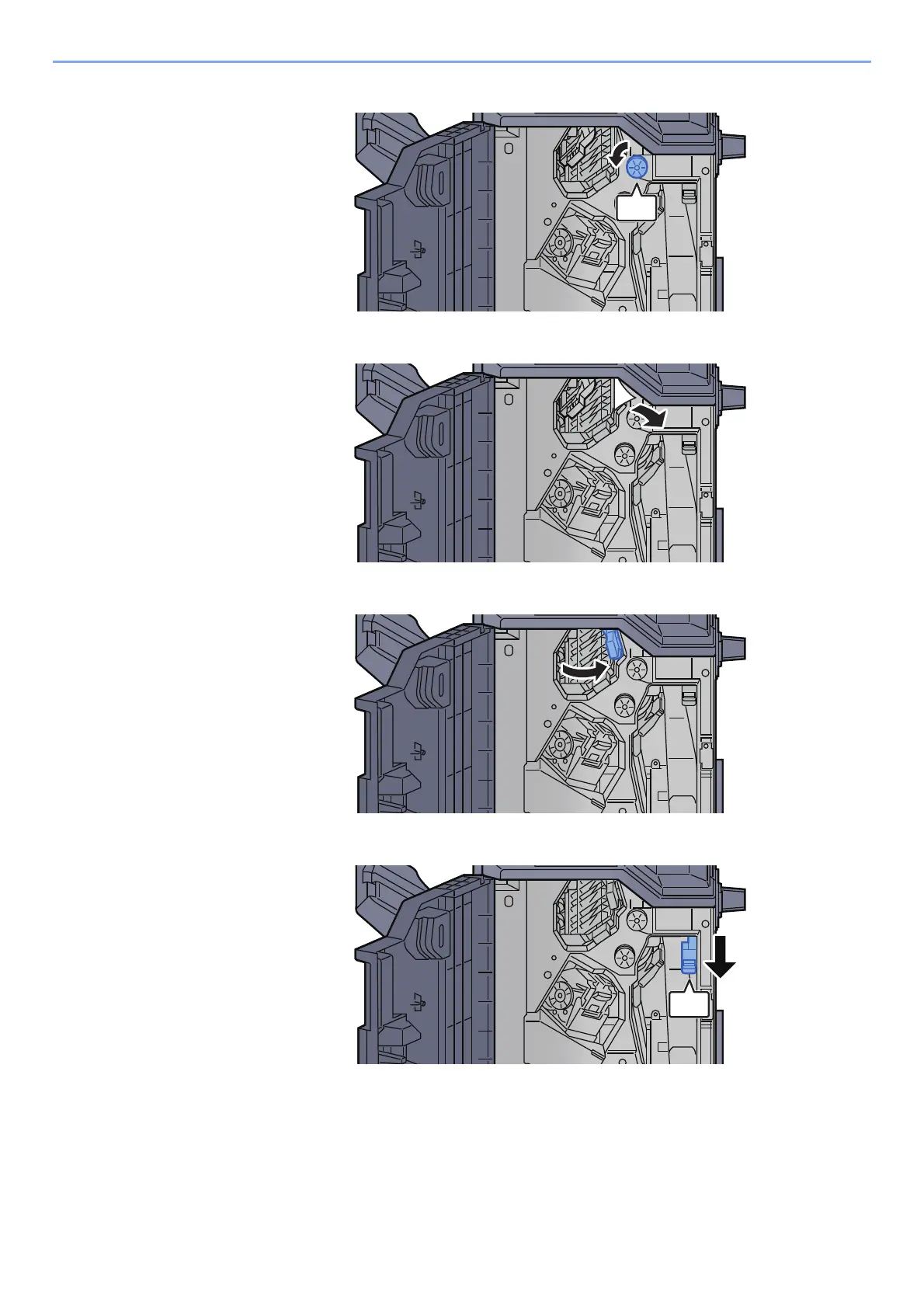

Turn knob (D3).

Remove any jammed paper.

Return the conveyor guide (D2) to the original position.

Open the conveyor guide (D1).
