Troubleshooting > Clearing a Staple Jam

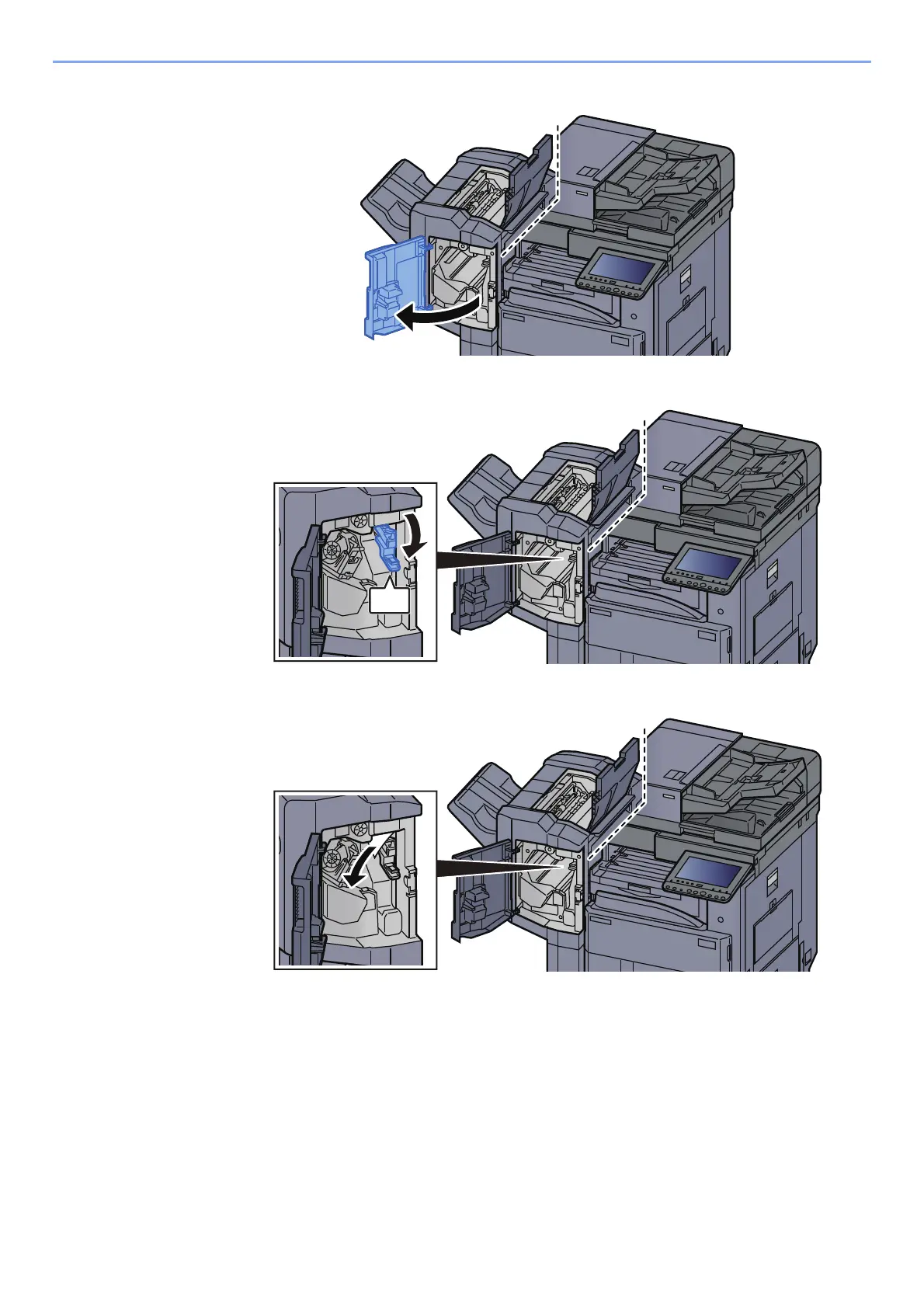

Open the finisher front cover.

Open the conveyor guide (D1).

Remove any jammed paper.
