XTP_RM_ML_1
www.l-acoustics.com
23
fr
F
R
8

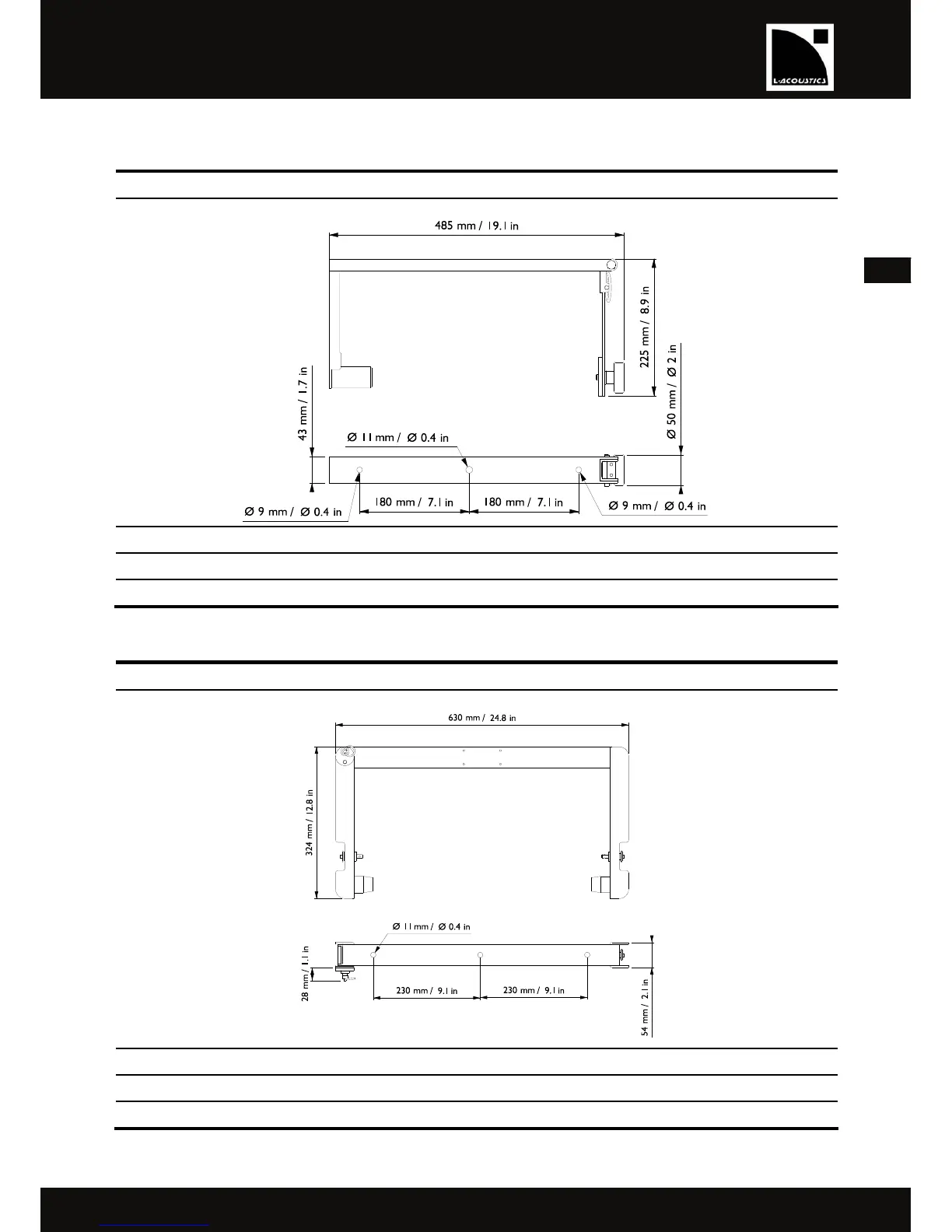

SPÉCIFICATIONS TECHNIQUES
Référence ETR8-2
Dimensions (L x H x P)
485 x 225 x 50 mm
Ö
19.1 x 8.9 x 2 in
Poids
1,9 kg / 4.2 lb.
Limite mécanique du système
1 enceinte 8XT ou 108P au maximum
Matériau
Acier, revêtement poudre époxy noire
Référence ETR12
Dimensions (L x H x P)
630 x 324 x 54 mm
Ö
24.8 x 12.8 x 2.1 in
Poids
5,25 kg / 11.6 lb.
Limite mécanique du système
1 enceinte 112XT ou 112P au maximum
Matériau
Acier, revêtement poudre époxy noire
98
100
Table of Contents
English
5
Default Chapter
2
Important Safety Instructions
2
Foreword
4
Manual Organization
4
Table of Contents
5
List of Figures
6
1 The P Series
7
Figure 1: 108P, 112P Loudspeaker Enclosures
7
Figure 2: SB15P Self-Powered Subwoofer
8
Figure 3: P Series Rigging Components
9
Overview
10
Figure 4: 108P Enclosure
10
Figure 5: 112P Enclosure
11
Figure 6: SB15P Enclosure
12
112P Series Presets
13
Figure 7: 108P, 112P Preset Selector Switch Closeup and Preset Options
13
Sb15P Presets
14
Figure 8: SB15P Preset Selector Switch Closeup
14
Figure 9: SB15P with Positive Polarity, 108P or 112P in X-OVER Mode
14
Figure 10: SB15P with Negative Polarity, 108P or 112P in FRONT Mode
14
Description
15
Figure 11: 108P (Floor Monitor Orientation)
15
Figure 12: 112P (Floor Monitor Orientation)
16
P Description
16
Sb15P Description
17
Figure 13: SB15P (with Pole-Mounted 108P )
18
2 CONNECTORS and CABLES
19
Figure 14A: 108P / 112P DSP Power Amplifier Module Rear Panel
19
Figure 14B: SB15P DSP Power Amplifier Module Rear Panel
19
Figure 15: P Series Mains Power Cables
19
Figure 16: Daisy-Chain Connection of P Series Enclosures
20
Figure 17: Connecting Unbalanced Sources
20
3 Applications
21
Aiming P Series Enclosures
21
Figure 18: General Guidelines for Aiming P Series Enclosures
21
Distributed Sound Reinforcement
22
Figure 19: General Guidelines for 108P or 112P Enclosure Spacing
22
Nearfield Monitoring
23
Floor Monitoring
23
4 Installation Procedures
24
Etr8-2 U-Bracket Attachment
24
Figure 20: ETR8-2 U-Bracket Installation Procedure
24
Etr112Xt U-Bracket Attachment
25
Xtliftbar Attachment
26
Figure 21: ETR112XT U-Bracket Installation Procedure
26
Figure 22: XTLIFTBAR Installation Procedure
26
Etr15P U-Bracket Attachment
27
Figure 23: ETR15P U-Bracket Installation Procedure
27
Safety Rules
28
5 P Series Loudspeaker Operation
29
6 Specifications
30
Figure 24: 108P Line Drawing
31
Figure 25: 108P + ETR8-2 Line Drawing
32
Specifications
33
Figure 26: 112P Line Drawing
34
Figure 27: 112P + ETR112XT Line Drawing
35
Figure 28: 112P + XTLIFTBAR Line Drawing
36
Sb15P Specifications
37
Figure 29: SB15P Line Drawing
38
Figure 30: SB15P + ETR15P Line Drawing
39
Warranty and Disclaimers
40
Factory Service
40
Approvals
48
Safety Warnings
51
Introduction
55
Welcome to L-ACOUSTICS
55
Unpacking
55
Xt and P Coaxial Ranges
56
XT Coaxial Range
56
Pself-Powered Coaxial Range
56
Etr8-2, Etr12, Etr15, Etr15P, and Xtliftbar Accessories
59
ETR8-2 Mounting Accessory
59
ETR12 and ETR15 Mounting Accessories
60
ETR15P Mounting Accessory
61
XTLIFTBAR Rigging Accessory
62
Installation
63
Rigging the 8XT or 108P Enclosure with the ETR8-2
63
Assembling
63
Disassembling
64
Rigging the 12XT or 112P (Resp.115Xt Hiq) Enclosure with the ETR12 (Resp. ETR15)
65
Assembling
65
Disassembling
66
Rigging the SB15P Enclosure with the ETR15P
67
Assembling
67
Disassembling
68
Flying the 12XT, 112P, or 115XT Hiq Enclosure with the XTLIFTBAR
69
Assembling
69
Disassembling
70
Rigging the 8XT or 12XT Enclosure with the OMNIMOUNT ® Accessories
71
Care and Maintenance
72
Specifications
73
Français
80
3 Introduction
81
Bienvenue Chez L-ACOUSTICS
81
Déballage du Produit
81
4 Gamme Coaxiales Xt Et P
82
La Gamme Coaxiale XT
82
La Gamme Coaxiale Amplifiée P
84
5 Accessoires Etr8-2, Etr12, Etr15, Etr15P, Et Xtliftbar
85
Accessoire D'accrochage ETR8-2
85
Accessoires D'accrochage ETR12 Et ETR15
86
Accessoire D'accrochage ETR15P
87
Accessoire de Levage XTLIFTBAR
88
6 Installation
89
Accrochage D'une Enceinte 8XT Ou 108P Par L'étrier ETR8-2
89
Montage
89
Démontage
90
Accrochage D'une Enceinte 12XT Ou 112P (Resp.115Xt Hiq) Par L'étrier ETR12 (Resp. ETR15)
91
Montage
91
Démontage
92
Accrochage D'une Enceinte SB15P Par L'étrier ETR15P
93
Montage
93
Démontage
94
Levage D'une Enceinte 12XT, 112P, Ou 115XT Hiq Par L'accessoire XTLIFTBAR
95
Montage
95
Démontage
96
Accrochage D'une Enceinte 8XT Ou 12XT Par Support OMNIMOUNT
97
7 Entretien Et Maintenance
98
8 Spécifications Techniques
99
