6 INSTALLATION
6.1 Rigging the 8XT or 108P enclosure with the ETR8-2
6.1.1 Assembling
The ETR8-2 U-bracket is secured to the 8XT or 108P enclosure in the following way:
1. Remove the recessed set screw located on the top face of the enclosure.
Note: Put the screw in a safe place.

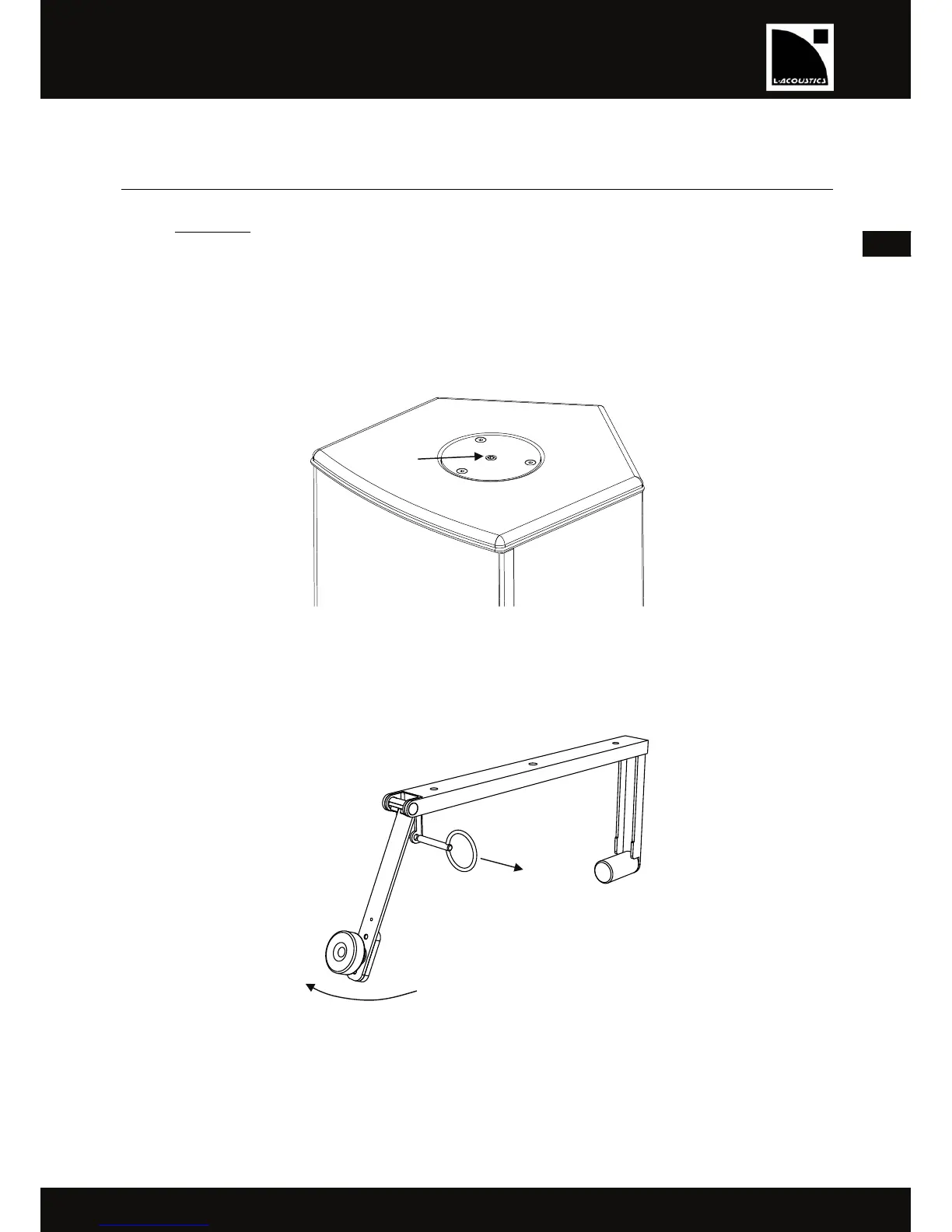

Figure 8: Recessed set screw
2. Remove the locking pin from the U-bracket and open the pivoting arm.
Figure 9: Opening the pivoting arm
Recessed set
scre
w
