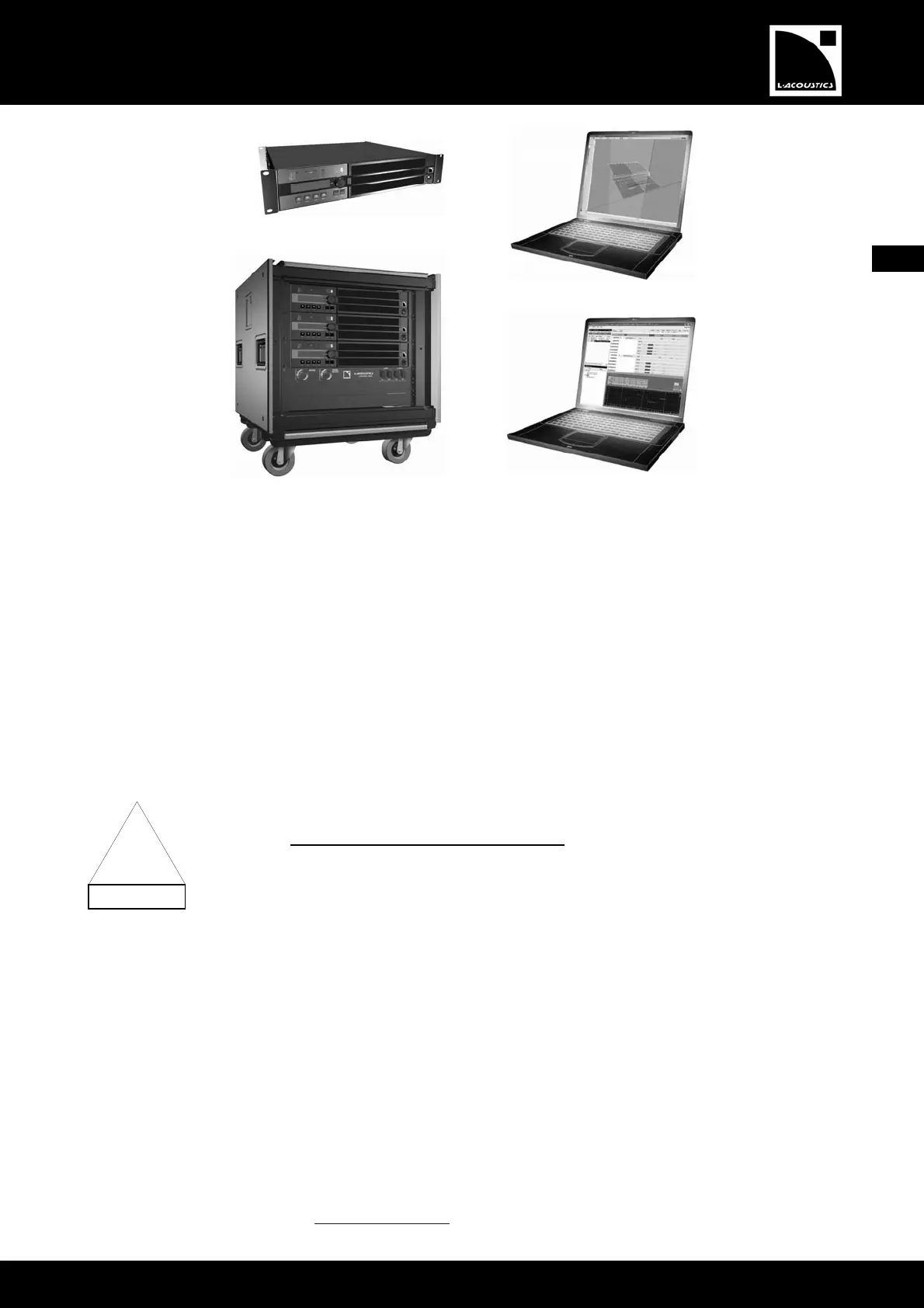

Figure 2: XT range components (part 2)
The XT range components are compatible with standard L-ACOUSTICS
®
accessories. These accessories include the
loudspeaker cables L-ACOUSTICS
®
SP.7, SP10, and SP25 with respective lengths of 0.7 m/2.3 ft., 10 m/32.8 ft., and
25 m/ 82 ft. These cables allow connection of the 8XT and 12XT enclosures to the LA4 amplified controller. Each cable
is a 4-conductor cable with 4 mm
2
conductor cross-section (13 SWG, 11 AWG) and features Speakon
®
NL4
connectors.
The L-ACOUSTICS
®
DOFILL-LA8 cable allows connection of the 115XT HiQ enclosure to the LA8 amplified
controller. This cable features CA-COM
®
8-pin type and Speakon
®
NL4 connectors and must be extended using the
L-ACOUSTICS
®
DO.7, DO10, or DO25 cables with respective lengths of 0.7 m/2.3 ft., 10 m/32.8 ft., and 25 m/ 82
ft. Each DO cable is an 8-conductor cable with 4 mm
2
conductor cross-section (13 SWG, 11 AWG) and features CA-
COM
®
8-pin type connectors.
Connecting the old DOFILL cable on the LA8 amplified controller for an active 2-way application
may result in damaging the loudspeaker components
.
Always connect the new DOFILL-LA8 cable on the LA8 amplified controller for active 2-way
applications.
The 8XT and 12XT are driven and powered by the L-ACOUSTICS
®
LA4 amplified controller. The 115XT HiQ is
driven and powered by the L-ACOUSTICS
®
LA8 amplified controller. These controllers ensure intelligent protection,
filtering, and equalization of the enclosures. Four channels of amplification are provided along with the OEM factory
preset libraries, ensuring the optimization and performance of the system within the limits of the recommended
configurations.
Each system design configuration should first be modeled and studied using the L-ACOUSTICS
®
SOUNDVISION
software. The software predictions are based on the preset parameters stored in the amplified controllers.
Several amplified controllers can be interconnected and monitored through the proprietary L-ACOUSTICS
®
L-NET
network using the L-ACOUSTICS
®
LA NETWORK MANAGER software.
Detailed description on the use of the LA4 and LA8 amplified controllers, SOUNDVISION and LA NETWORK
MANAGER software is beyond the scope of this manual. Please refer to the appropriate documentation, also available
on the L-ACOUSTICS
®
web site
@
www.l-acoustics.com.
L
A
-RAK with 3 LA8
SOUNDVISION
LA4
LA NETWORK MANAGE
R
!
CAUTION
