L-Acoustics K2 User Manual

Loudspeaker congurations
K1-SB
The K1-SB provides an extension of the bandwidth in the low end, down to 30 Hz. Depending on the deployment, LF
rejection can be produced.
Three deployments are available in this conguration:
• K1-SB on top of the K2 line source
• K1-SB beside the K2 or K2/K1-SB line source : side LF rejection (polarized)
• K1-SB behind the K2 or K2/K1-SB line source : rear LF rejection (cardioid)

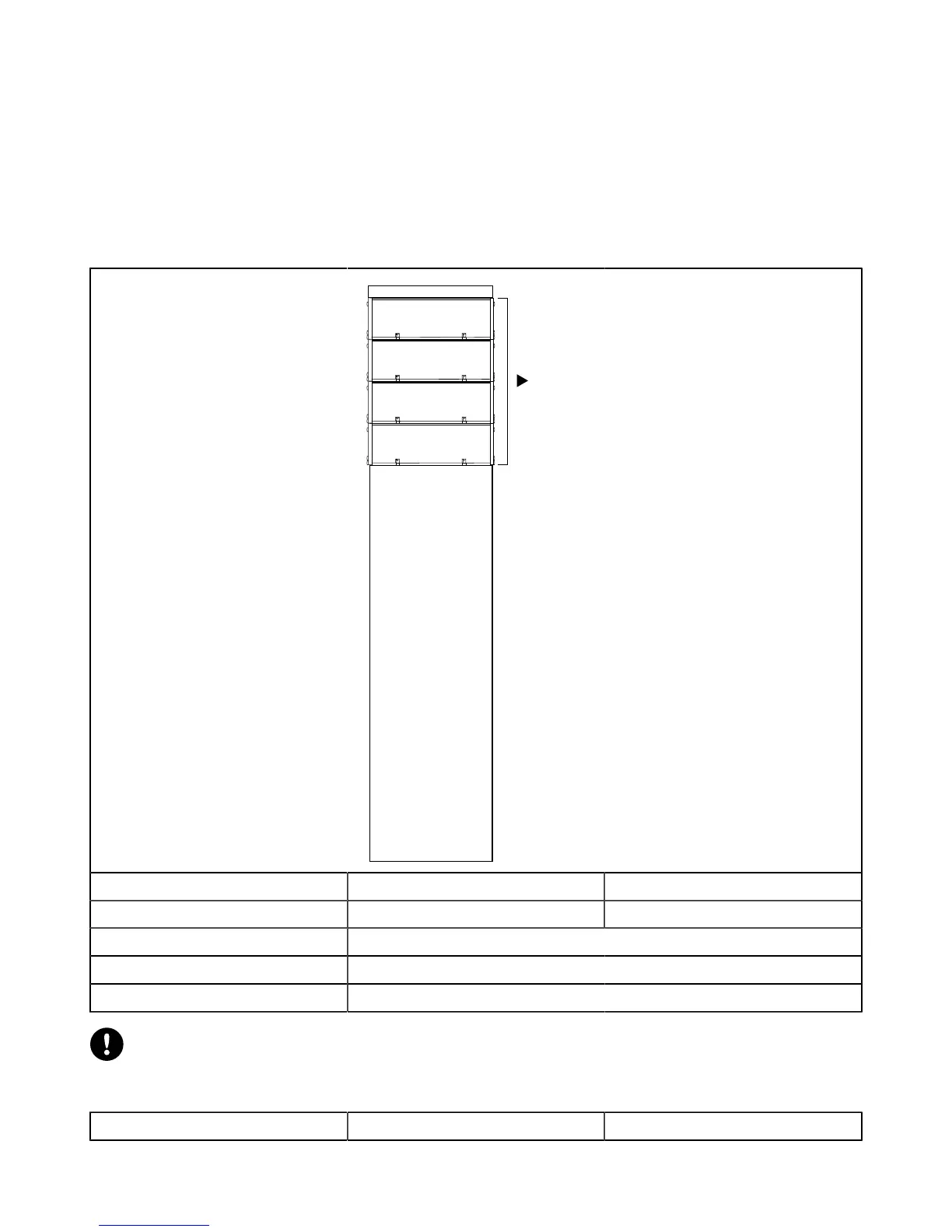

Line source with K1-SB on top
[PRESET]
[K1SB_60]
K2 LINE SOURCE
Enclosure K2 K1-SB as subwoofer
Preset [K2 70][K2 90][K2 110] [K1SB_60]
Frequency range (-10 dB) 30 Hz - 20 kHz
Recommended ratio 3 K2 : 2 subwoofers
Maximum number line length 12 K2 + 4 K1-SB
Delay values
Do not forget to add the pre-alignment and geometric delays depending on the conguration.
Pre-alignment delays
[K2] + [K1SB_60] K2 = 6 ms K1-SB = 0 ms
K2/SB28 user manual (EN) version 7.0 13

L-Acoustics K2 Specifications

General

Frequency Response	35 Hz - 20 kHz
Max SPL	147 dB
Transducers	2 x 12" LF, 4 x 6.5" MF, 2 x 3" HF
Nominal Impedance	8 ohms
Amplification	LA8 / LA12X
Weight	56 kg
Type	3-way active WST line source
Components	12" LF, 6.5" MF, 3" HF
Connectors	2 x 4-point speakON
