L-Acoustics K2 User Manual

Technical description
Technical description

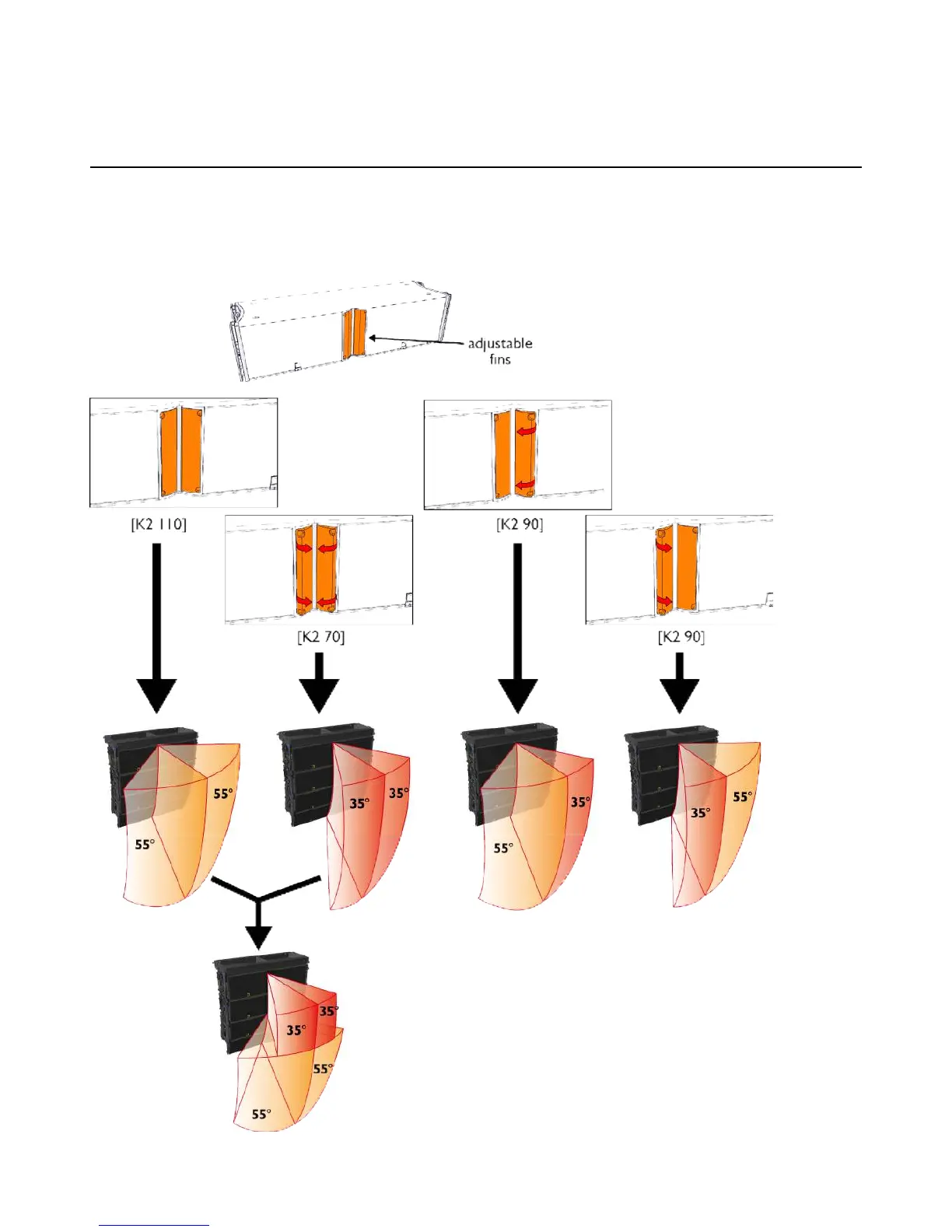

K2 horizontal directivity settings
The K2 enclosure features an adjustable horizontal directivity system. Using the adjustable ns, horizontal directivity can
be adjusted with four different settings: 110°/70° symmetric or 90° asymmetric (35°/55° or 55°/35°). A specic K2
preset must be used for each directivity setting.
Within a line source, different directivity settings can be combined to improve the coverage of the audience geometry.
8 K2/SB28 user manual (EN) version 7.0

L-Acoustics K2 Specifications

General

Frequency Response	35 Hz - 20 kHz
Max SPL	147 dB
Transducers	2 x 12" LF, 4 x 6.5" MF, 2 x 3" HF
Nominal Impedance	8 ohms
Amplification	LA8 / LA12X
Weight	56 kg
Type	3-way active WST line source
Components	12" LF, 6.5" MF, 3" HF
Connectors	2 x 4-point speakON
