L-Acoustics K2 User Manual

Loudspeaker connection
Loudspeaker connection
Connectors

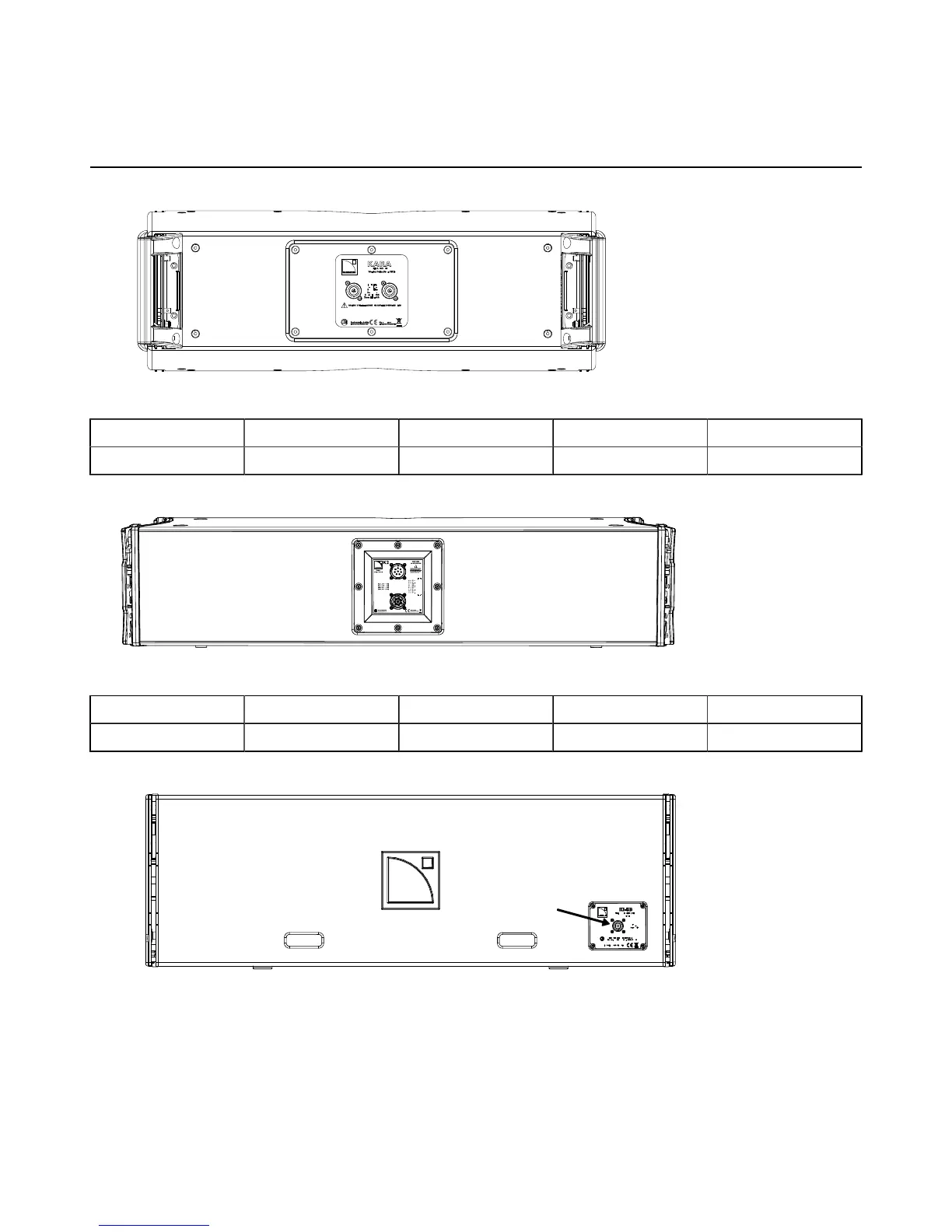

Kara is equipped with two 4-point speakON connectors.
Kara
IN LINK
Internal pinout for L-Acoustics 2-way active enclosures
speakON points 1 + 1 - 2 + 2 -
Transducer connectors LF + LF - HF + HF -
K2 is equipped with two 8-point PA-COM connectors.
K2
IN
LINK
Internal pinout for L-Acoustics 3-way active enclosures
PA-COM points A/B C/D E/F G/H
Transducer connectors left LF right LF MF HF
K1-SB is equipped with one 4-point speakON connector.
K1-SB
IN
K2/SB28 user manual (EN) version 7.0 19

L-Acoustics K2 Specifications

General

Frequency Response	35 Hz - 20 kHz
Max SPL	147 dB
Transducers	2 x 12" LF, 4 x 6.5" MF, 2 x 3" HF
Nominal Impedance	8 ohms
Amplification	LA8 / LA12X
Weight	56 kg
Type	3-way active WST line source
Components	12" LF, 6.5" MF, 3" HF
Connectors	2 x 4-point speakON
