L-Acoustics L Series User Manual

Corrective maintenance
L2
Introduction
This section contains the following maintenance procedures:
• D/R - Grill (p.94)
• D/R - Fin (p.97)
• D/R - LF speaker (p.98)
• D/R - Side panel (p.99)
• D/R - LC speaker (p.100)
• D/R - Connector plate (p.101)
• D/R - Rear grill (p.102)
• D/R - Trapdoors (p.103)
• D/R - HF driver (p.104)
• D/R - HF diaphragm (p.105)
For advanced maintenance, contact your L-Acoustics representative.

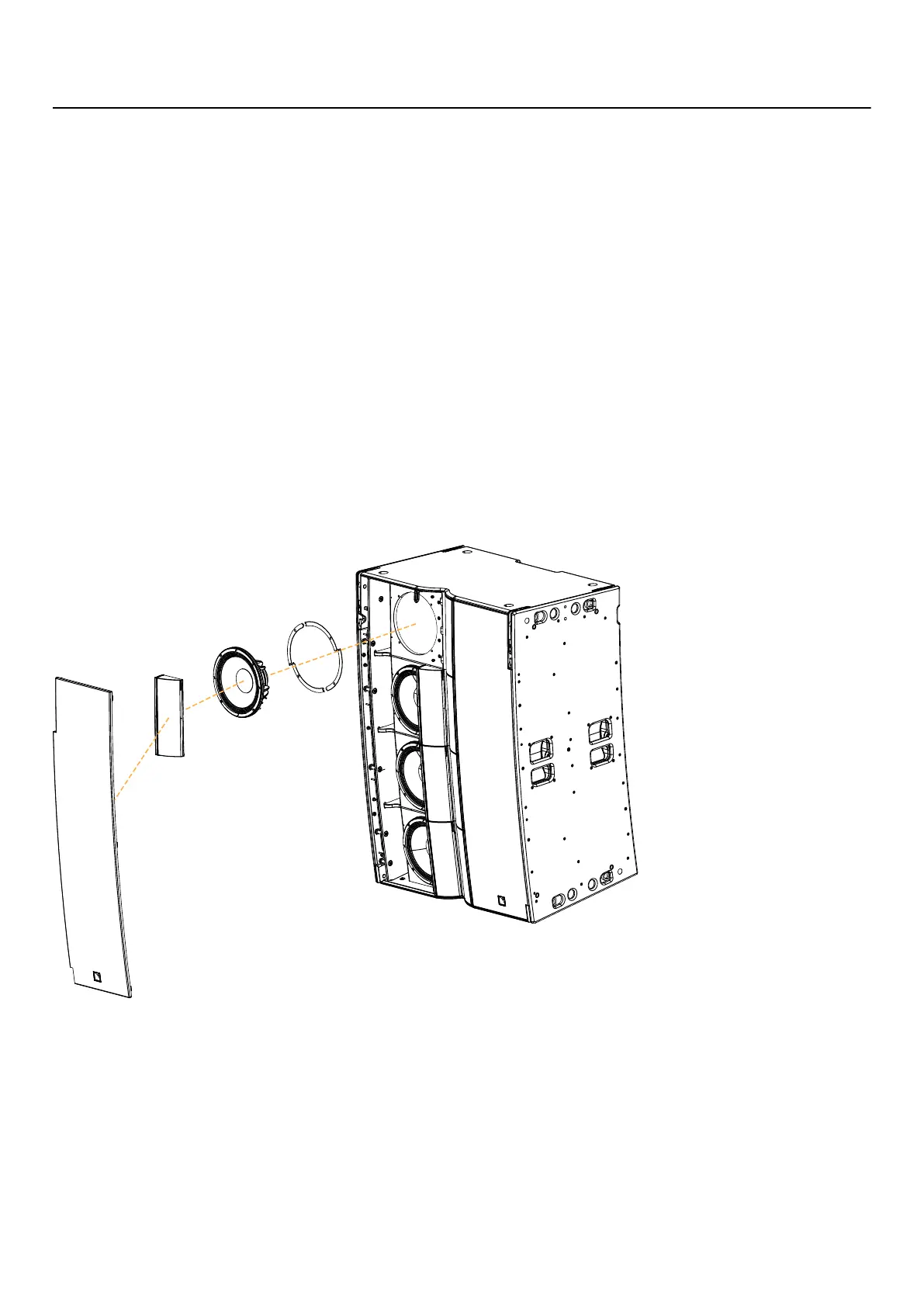

Exploded views
In order to operate, follow the order outlined here. Each assembly refers to the corresponding Disassembly/Reassembly
(D/R) procedure and the necessary repair kit.
Grill Fin
LF speaker
G03647
92 L2 owner's manual (EN) version 2.0
