L-Acoustics LA4X User Manual

Installation

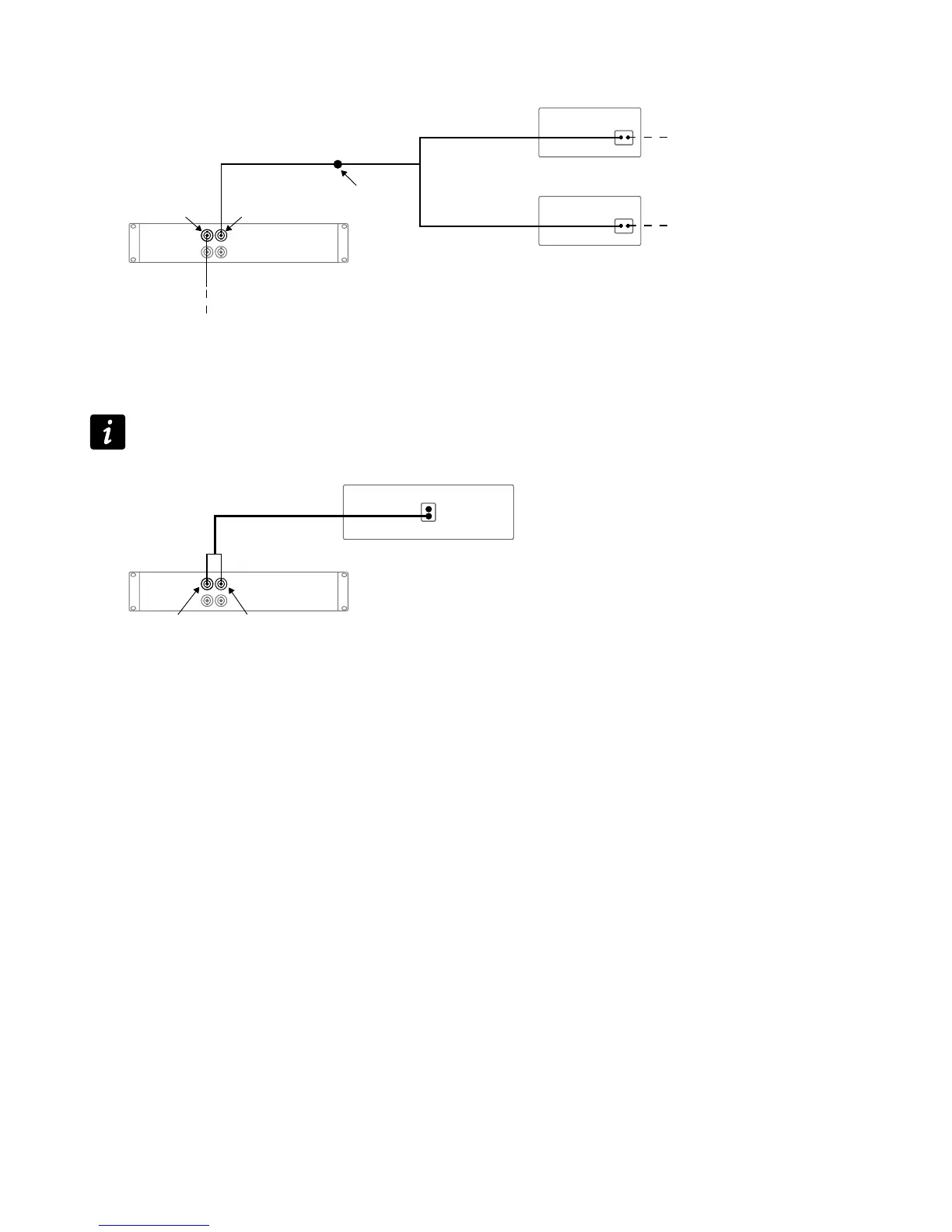

2-way passive enclosure on speakON output - SP + SP-Y1
SP
OUT1/OUT2
OUT3/OUT4
SP-Y1
CC4FP
same as OUT3/OUT4
SP
SP
CH1 (OUT1)
CH2 (OUT2)
Connecting 3-way active enclosures
3-way active enclosure on speakON output - custom speakON to PA-COM interface
L-Acoustics does not supply the speakON-to-PA-COM interface.
It must be built with two 4-point speakON connectors and a female 8-point PA-COM connector (no cable clamp).
OUT1/OUT2
OUT3/OUT4
speakON to PA-COM
LA4X user manual (EN) version 9.1 24
