L-Acoustics LA4X User Manual

Installation
Audio and network cabling
Connection panels
The amplied controller's rear side features three panels for audio and network cabling:
— a speaker panel (1) to connect the loudspeakers
— a signal panel (2) to connect the analog and/or digital (AES/EBU or S/PDIF) audio sources and link the signals to
another amplied controller
— an L-NET panel (3) to connect to a network and be remotely controlled by LA Network Manager

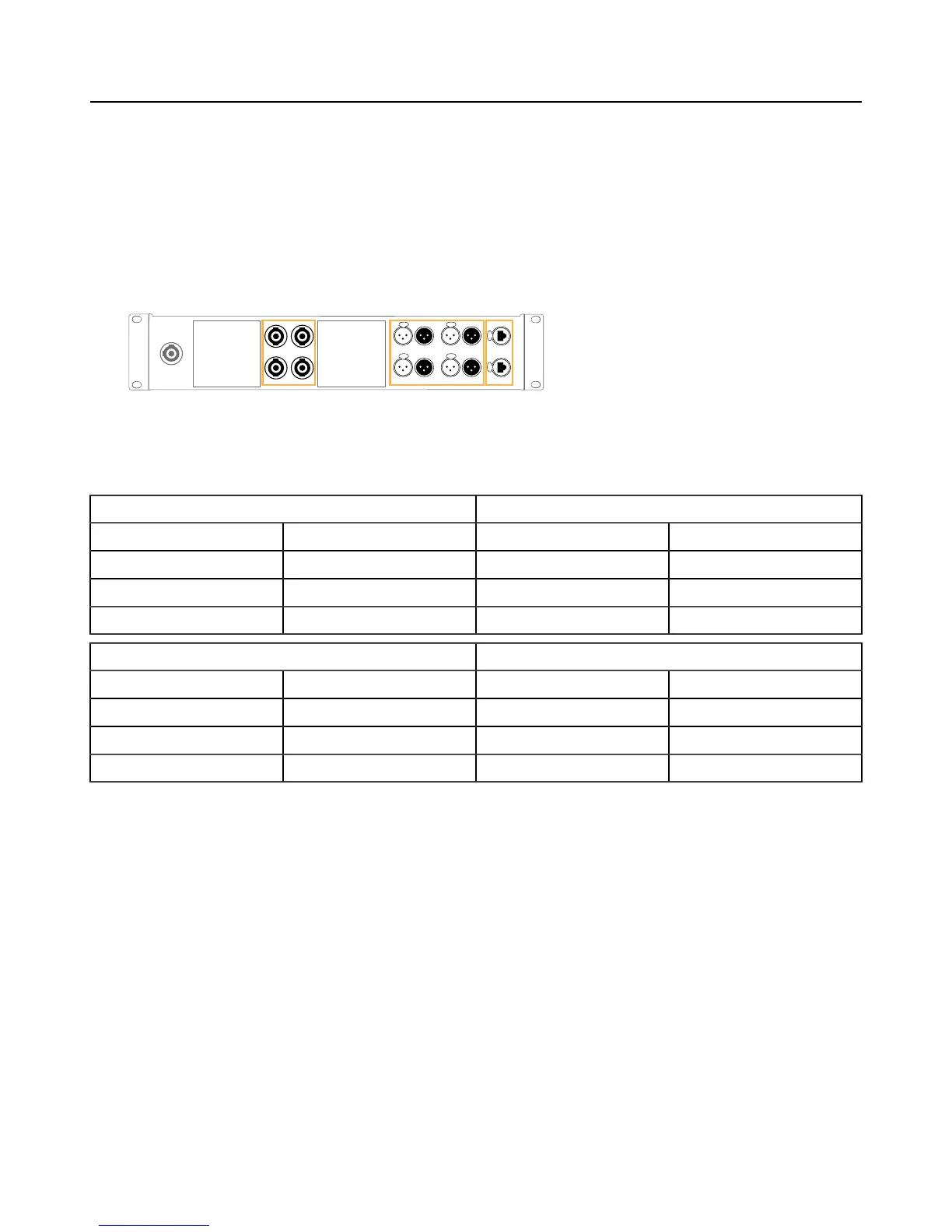

LA4X audio and network connection panels
1 2
3
Speaker panel
The four 4-point SpeakON connectors on the rear panel are for loudspeaker connection. They are wired as follows:
top left SpeakON connector top right SpeakON connector
Pin 1+ Out 1+ Pin 1+ Out 3+
Pin 1 - Out 1 - Pin 1 - Out 3 -
Pin 2+ Out 2+ Pin 2+ Out 4+
Pin 2 - Out 2 - Pin 2 - Out 4 -
bottom left SpeakON connector bottom right SpeakON connector
Pin 1+ Out 2+ Pin 1+ Out 4+
Pin 1 - Out 2 - Pin 1 - Out 4 -
Pin 2+ not used Pin 2+ not used
Pin 2 - not used Pin 2 - not used
LA4X user manual (EN) version 9.1 18
