Operation
Modifying gain
About this task
Gain can be modied for sets of output channels having input channels in common in their input selections.
Examples of output channels having input channels in common:
‽INPUT SELECTION ‼※
A B A+B A-B
— The OUT1 key displays gain for OUT1, OUT3 and OUT4 (containing IN A)
— The OUT2 key displays gain for OUT2, OUT3 and OUT4 (containing IN B)
— The OUT3 and OUT4 keys display all channels (containing IN A and/or IN B)
For individual gain settings, refer to section PRESET PARAMETERS (p.38).
Procedure

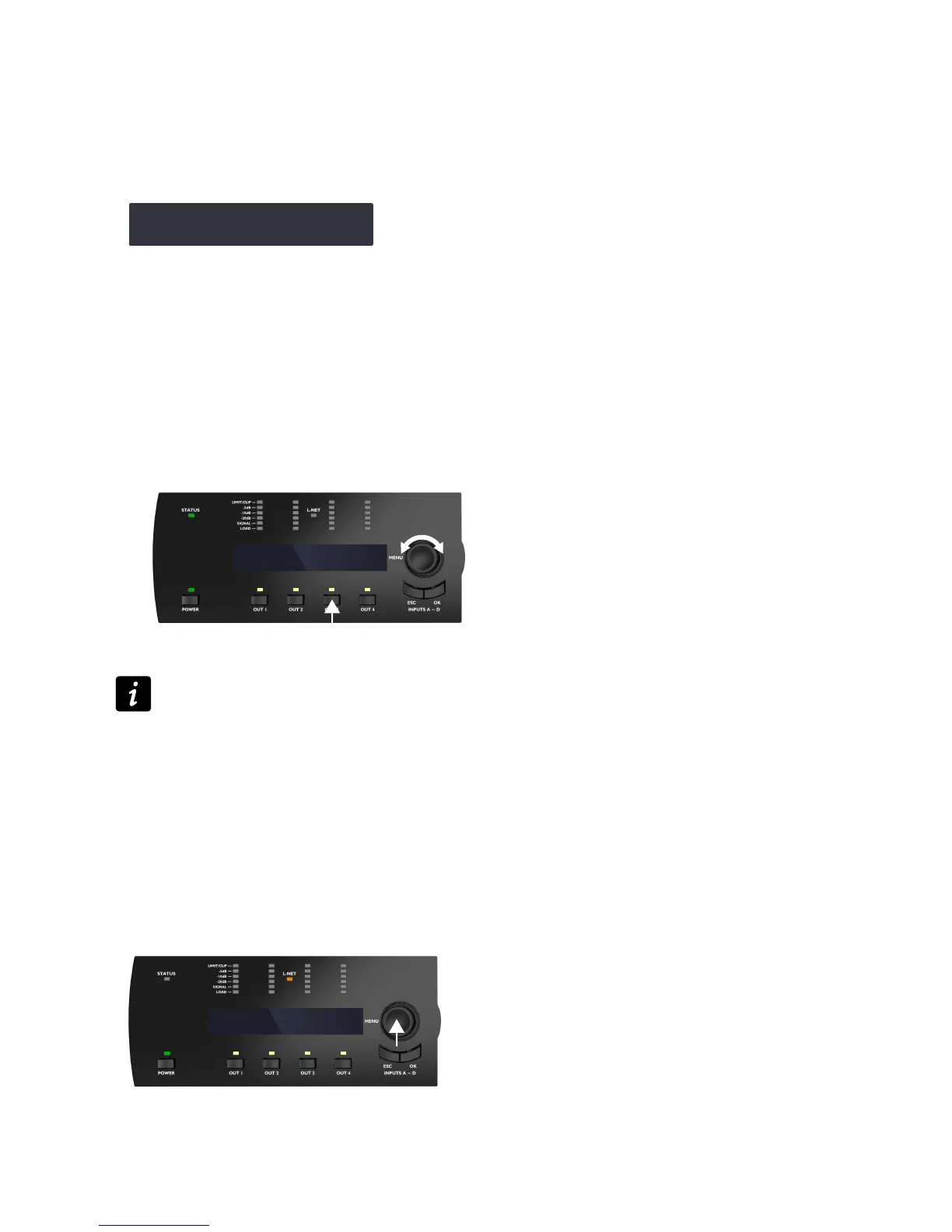

1. Press and hold the OUT key of the corresponding output channel.
The screen displays the gain values of all the output channels having an input channel in common.
Example with OUT3 displaying OUT3 and OUT4 (IN B)
GAIN OUT(dB) B
1.5 1.5
2. Turn the encoder wheel to modify the gain values.
Turn the encoder wheel to modify gain by steps of 0.1 dB, or
Press and turn simultaneously the encoder wheel to modify gain by steps of 1 dB.
3. Release the OUT key to return to the main screen.
Identifying an amplied controller
If the amplied controller is connected to the L-NET network, it can be identied among other amplied controllers on the
Workspace of LA Network Manager (refer to the LA Network Manager video tutorial).
To identify an amplied controller, press and hold the encoder wheel.
On the Workspace of LA Network Manager, the amplied controller blinks in yellow.
On the amplied controller, the L-NET and OUT LEDs ashes and the screen displays IDENTIFICATION and the
complete IP.
IDENTIFICATION
192.168. 1.110
LA4X user manual (EN) version 9.1 32
