Installation
L-NET
Do not create loops in the network setup
LA4X and LA12X amplied controllers should always be placed before LA4 and LA8 amplied
controllers in daisy-chain networks.
LA4 and LA8 amplied controllers are equipped with former generation 100 Mb/s Ethernet ports that cannot
communicate with Ethernet ports of different capabilities, creating detection issues in LA Network Manager.
To connect LA4X to L-NET in a daisy-chain, star or hybrid topology, use the etherCON connectors on the L-NET panel.
Refer to the LA Network Manager video tutorial for network setup.
Speaker
To connect an enclosure to the amplied controller, use the speakON connectors.

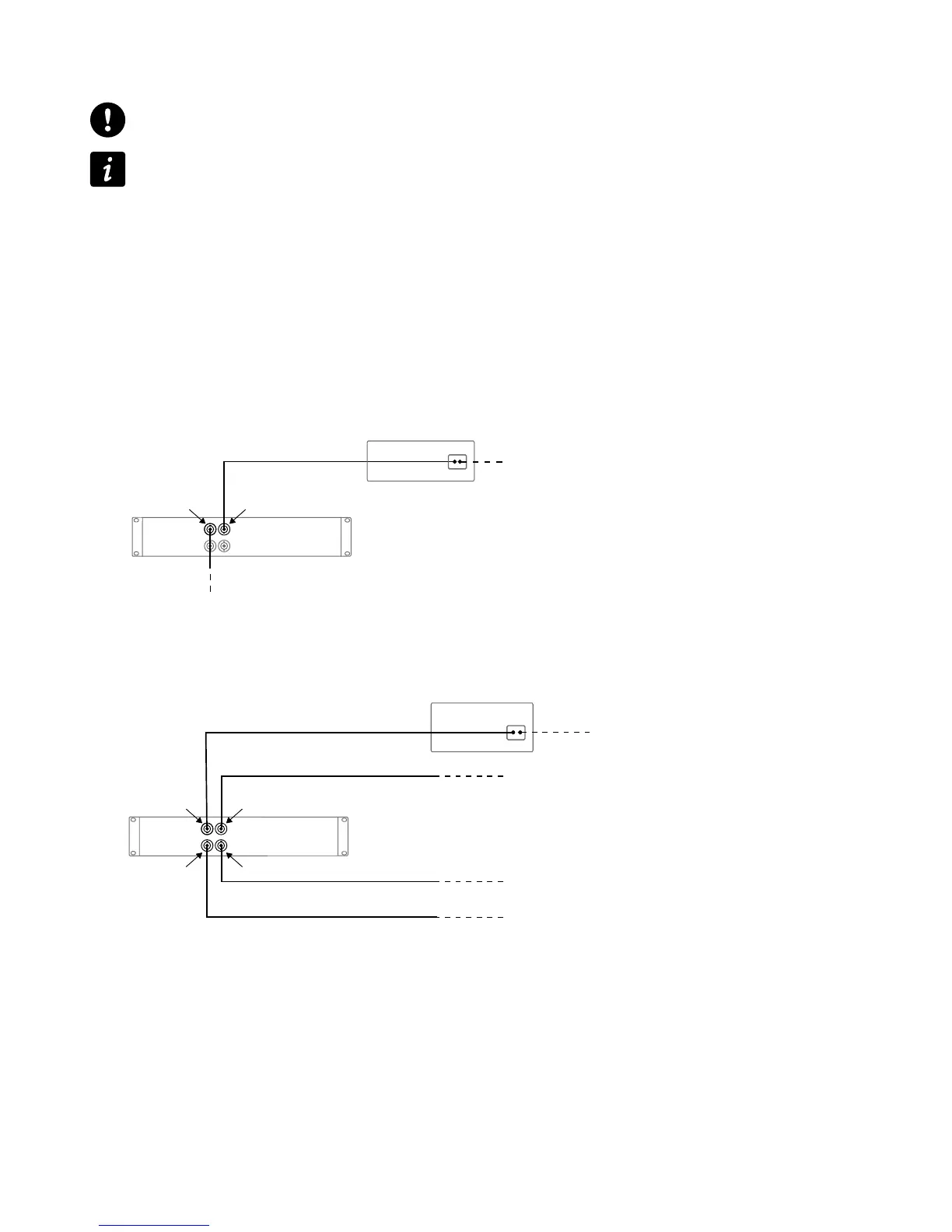

Connecting 2-way active enclosures
2-way active enclosure on speakON output - SP
SP
OUT1/OUT2 OUT3/OUT4
same as OUT1/OUT2
SP
Connecting 2-way passive enclosures
2-way passive enclosure on speakON output - SP
SP
SP
SP
SP
OUT1 OUT3
OUT4
OUT2
23 LA4X user manual (EN) version 9.1
