L3 comminications ProTec - Figure 3-9. AIS Transponder Antenna Diagram

Marine Systems
Aviation Recorders
Rev. 02 Page 3--17
July 29/03
Automatic Identification System
Mini VHF Connector
VHF Antenna
Female Male
PL259
50 ft.
RG8X
20 ft.
GPS Antenna
TNC Connector Male
TNC Connector Female
70 ft.
RJ223
15 m
21 m
6m

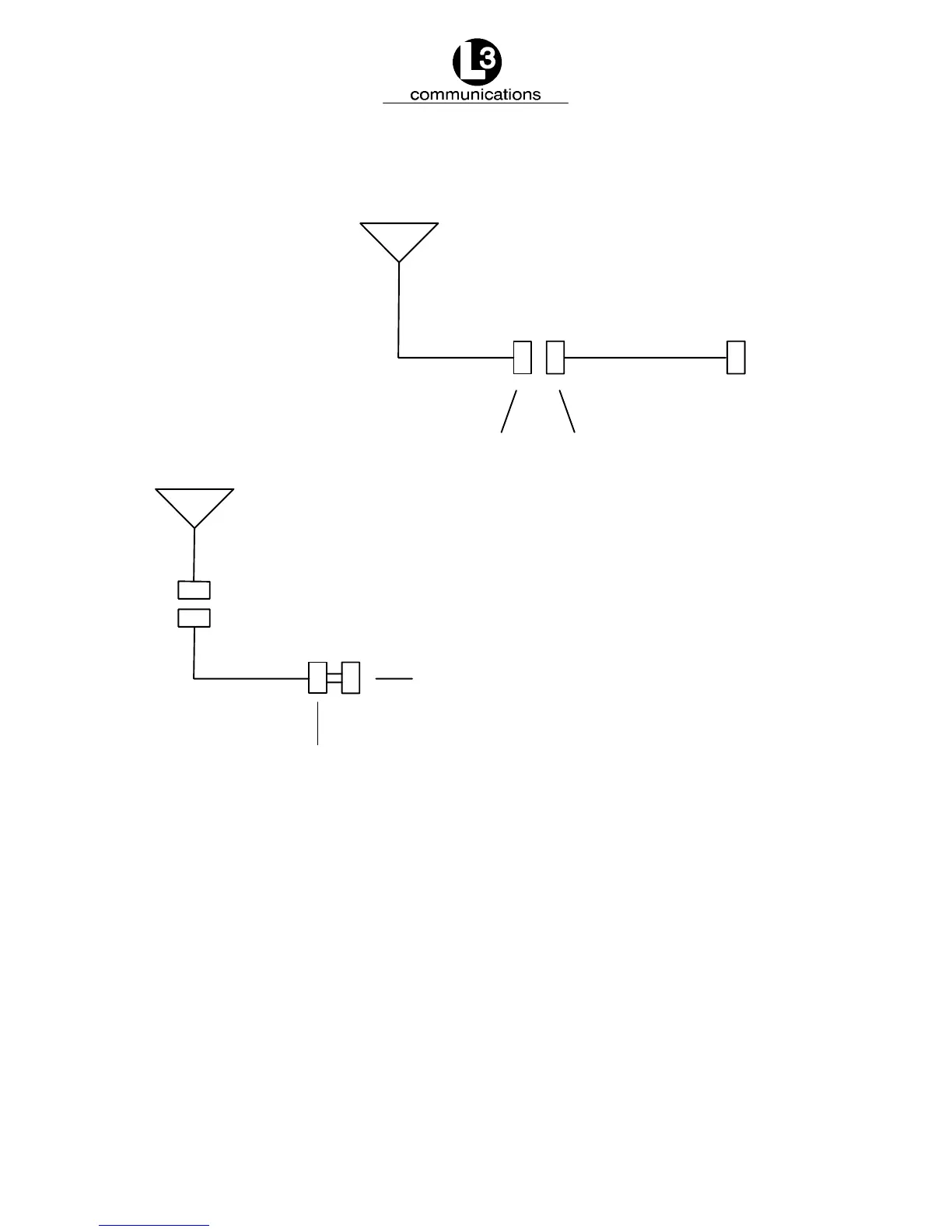

Figure 3--9. AIS Transponder Antenna Diagram
