L3 comminications ProTec - Figure 3-10. AIS Transponder Rear View

Marine Systems
Aviation Recorders
Rev. 02 Page 3--18
July 29/03
Automatic Identification System
Back Panel Mating Connectors
VHF Antenna -- L3 PN: PL--259 (Generic) (20 ft. cable supplied)
TELEGARTNER J01041A0004
Power BIIT -- L2 PN: 063--98--02108 (6 ft. cable supplied)
CONXALL PN: 6382--4SG--522
GPS -- L3 PN: TNC (Generic) (20 ft. cable supplied)
IEC NMEA -- L3 PN: 063--98--02106 (100 in. cable supplied)
HIROSE PN: HR22--12TPD--20S
Power Consumption:10--32vdc
12 watts nominal -- 50 watts max.
OTHER
PILOT/PC
ECS
ARPAROT
COG
DGPS
TERMINAL BLOCK
IEC/NMEA DATA
TNC CONN
70’ RG59 COAX
TNC CONN
MALE
MALE
50’ RG8X COAX
20’ RG8X COAX
Mini VHF CONN
PL 259
NOTES:
GPS ANTENNA
RAIL MOUNTED DECK MOUNTED
VHF ANTENNA
21 m
15 m
6m

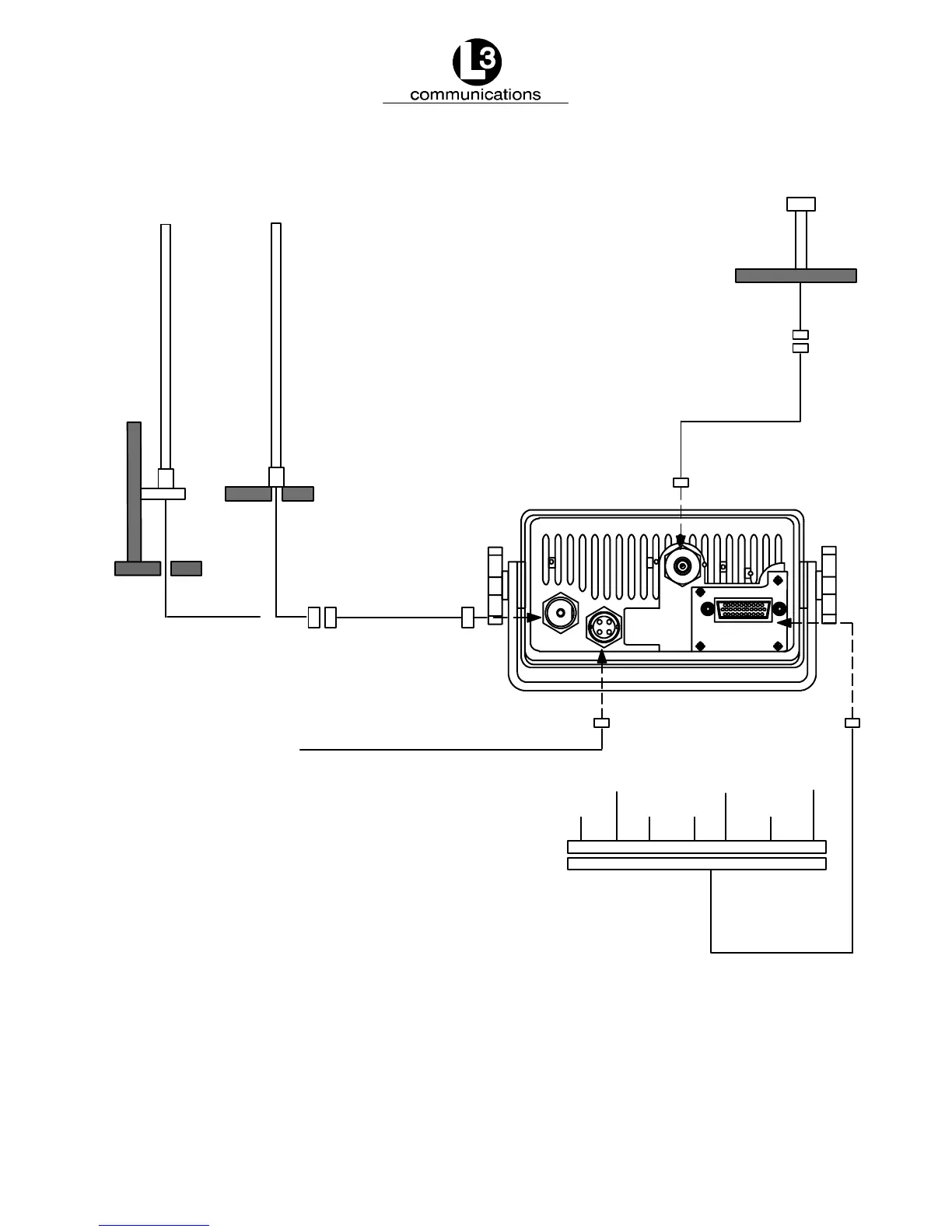

Figure 3--10. AIS Transponder Rear View
