Automatic Identification System
NOTE:
1. Front Panel Mating Connectors
Pilot Port -- L3 PN: 063--98--02113
TYCO PN: 206485--1
communications

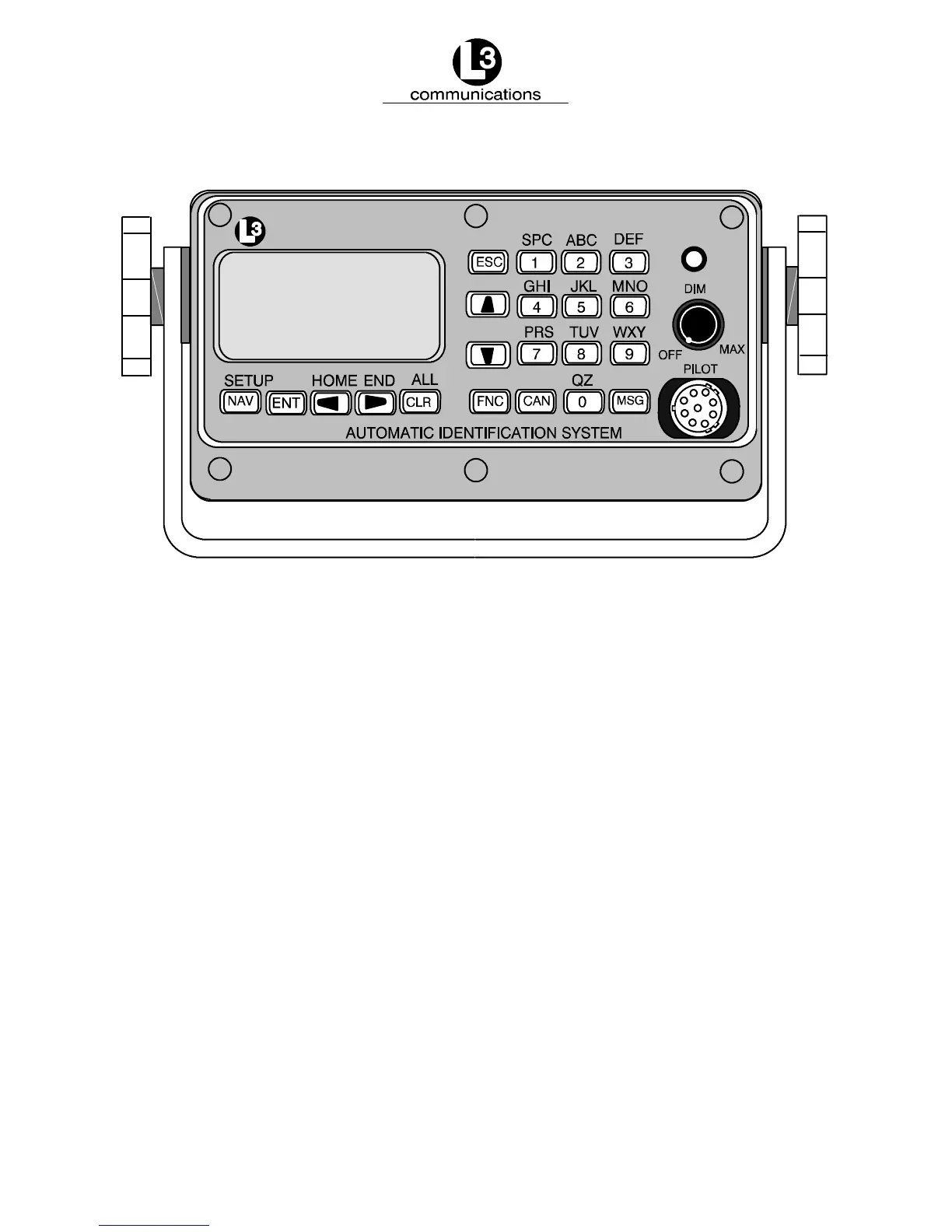

Figure 1--1. AIS Transponder
1.2. Technical Specifications
Standards IMO MSC.74(69) Annex 3, IEC 61993--2, ITU.R.M.1371--1
Ship reporting capacity
2250 reports per minute, 4500 reports per minute on two channels
TDMA Transmitter
TX Frequency: 156.025 MHz -- 162.025 MHz, manual/automatic setting
Transmitter Power: 2 W, 12.5 W manual/automatic selection
