7. Product overview
7.1. Front panel

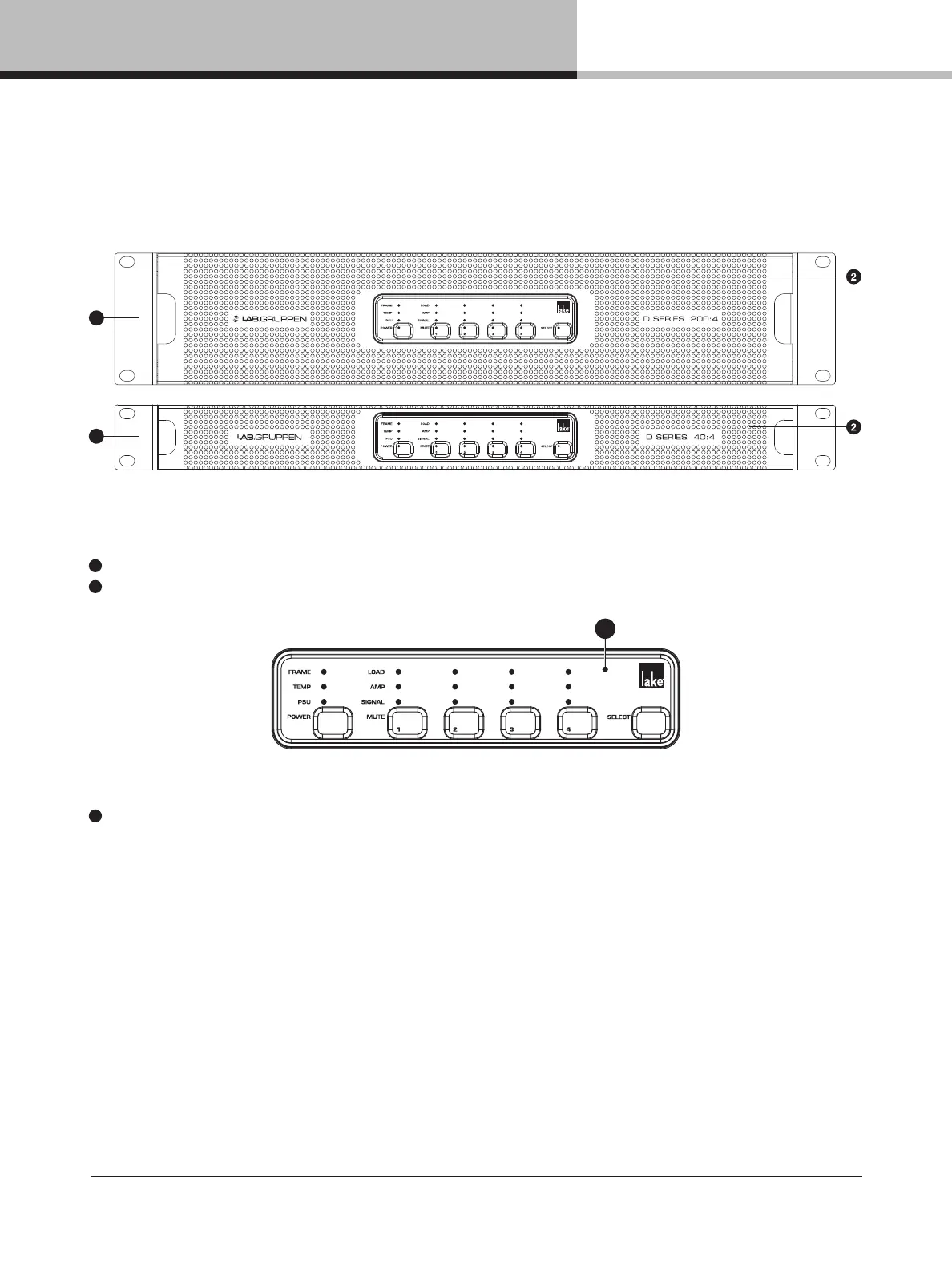

The front panel consists of an outer front with air intake and a centered user interface. The user interface has LEDs
for monitoring and six recessed touch buttons for control.
1
Rack ears for 19 inch rack mount
2
Exterior front grille (also air intake and dust lter holder)
3
Touch and LED panel – See section 9.1 for further information.
