13. System configuration tutorial
40
D SERIES Lake Operation Manual rev 3.0.4
13. System configuration tutorial
D SERIES Lake Operation Manual rev 3.0.3
39

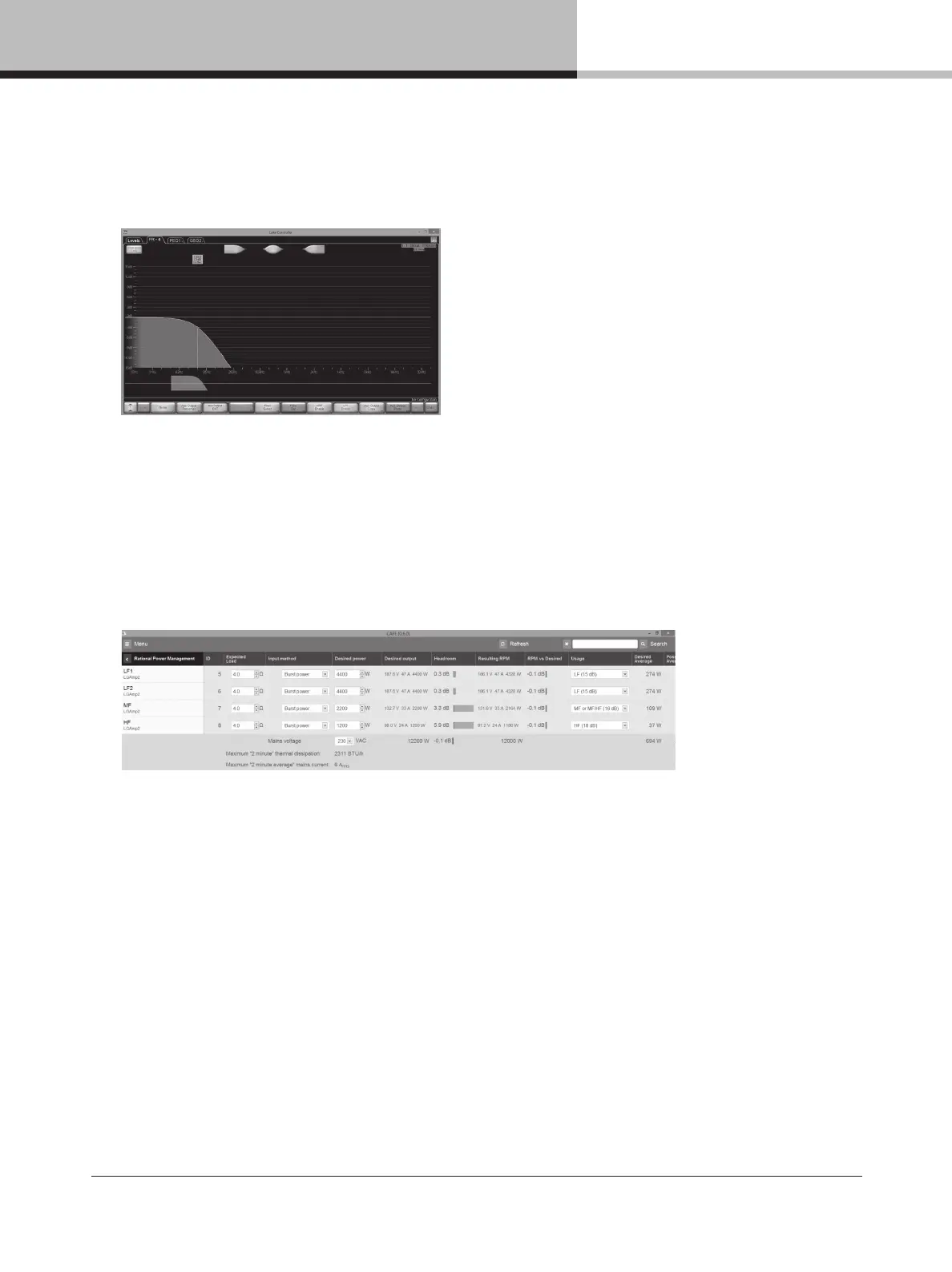

21. Repeat step 16 and 20 for the B module. On the Output EQ/Crossover, tap the Aux Output Functions
button on the menu bar and then tap LPF Enable button. Drag the Low pass lter control object on the
frequency slider just above the menu bar to an appropriate crossover frequency for the sub, e.g. 100 Hz.
22. Use the control options mentioned in 17 to tune your loudspeakers. For larger systems, modules can be
placed in groups (Groups menu from the MAIN page) for control of multiple units.
23. Some features like RPM can only be congured from within CAFÉ software. Return to AMPLIFIER EVENTS
& CONTROL; from the main area hit MODULES button, select a module (e.g. Module A), tap I/O Cong,
tap AMPLIFIER EVENTS & CONTROL, and navigate to the Control tab. The CAFÉ button (next to bottom)
opens the CAFÉ application and imports and highlights the current amplier and its RPM view.
CAFÉ, RPM view – Enter power requirements and impedances for the channels to congure RPM.
13.4. Additional Software Reference Material
Additional information regarding conguration of Lake Controller for specic loudspeaker systems is available in the
Lake Controller Operation Manual, available for download in PDF format at www.labgruppen.com/support.
Additional information on conguration of CAFÉ software is available in an integrated guide in the software program
and in the CAFÉ Coach videos posted on the Lab.gruppen web site and on the Lab.gruppen channel on YouTube.
