6. Installation
D SERIES Lake Operation Manual rev 3.0.3
9
6.2. Mounting
D Series is made for mounting in 19 inch racks. Four screw holes are available for attachment of the amplier to
the racks front rack rail. This device has no top or bottom vents; therefore, units may be stacked directly on top of
one another. Sufcient space should be available at the rear to accommodate connectors and cables. In addition,
allowance must be made for cable or loom bends within a rack.
6.2.1. Rear Mounting
Two rear support brackets, along with associated mounting hardware, are included with the D Series device. It is
strongly recommended that these are used wherever possible. Fit the brackets to the vertical rails at the rear of the
rack. The following diagrams show the tting options for xed and removable installation. The support brackets are
reversible and may be tted to point either to the front or rear of the rack; the proper orientation depends on the
rack depth and position of the rear rack rails.

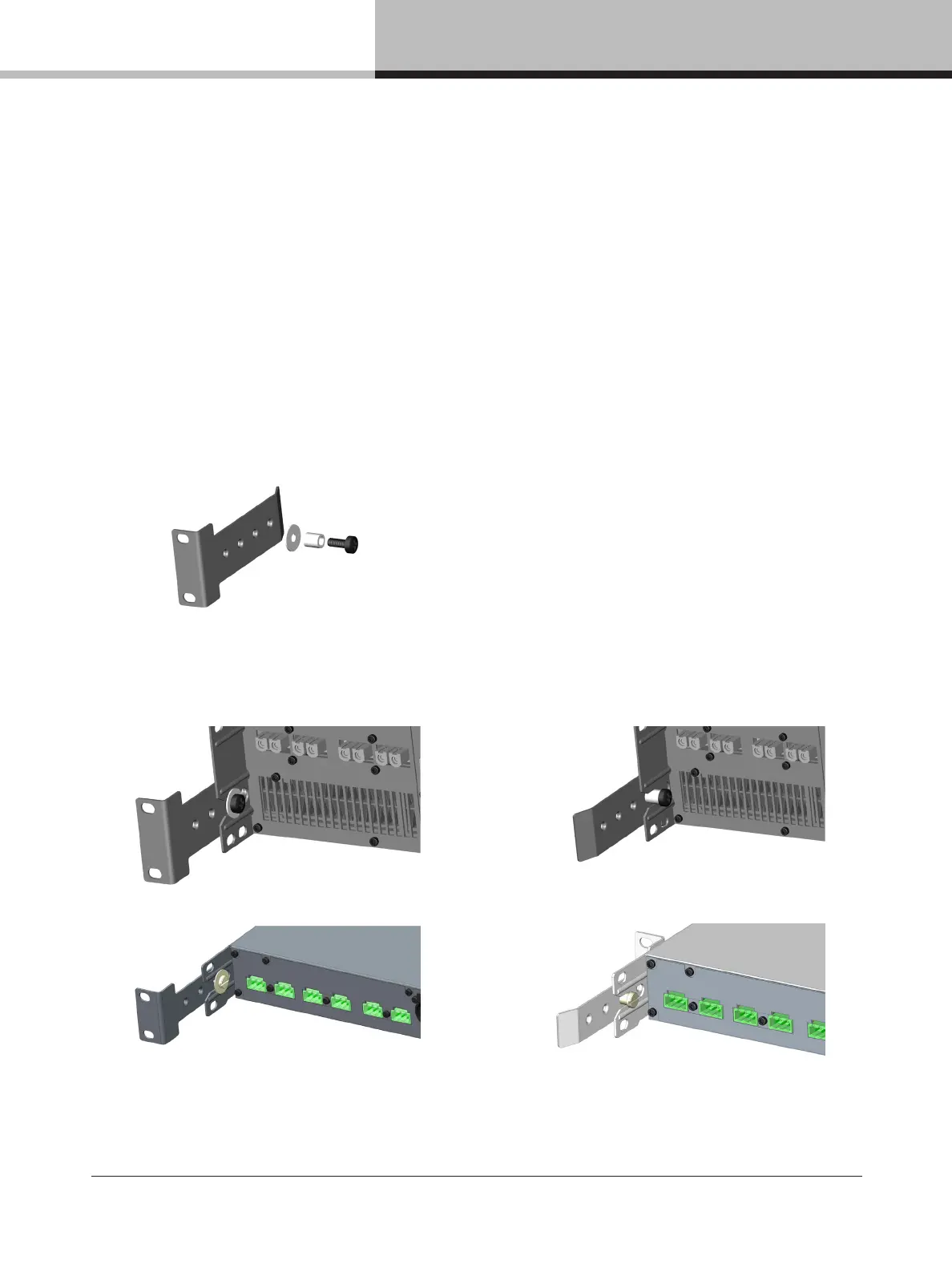

Figure 6.1: Rear support bracket with
mounting hardware
Figure 6.2: Rear support bracket mounted for Figure 6.3: Rear support bracket mounted for
xed installation and bracket removable installation and bracket
pointing forward pointing towards rear
