Chapter 6: Modifying Your Washer
Product Service 1-800-522-7658 41

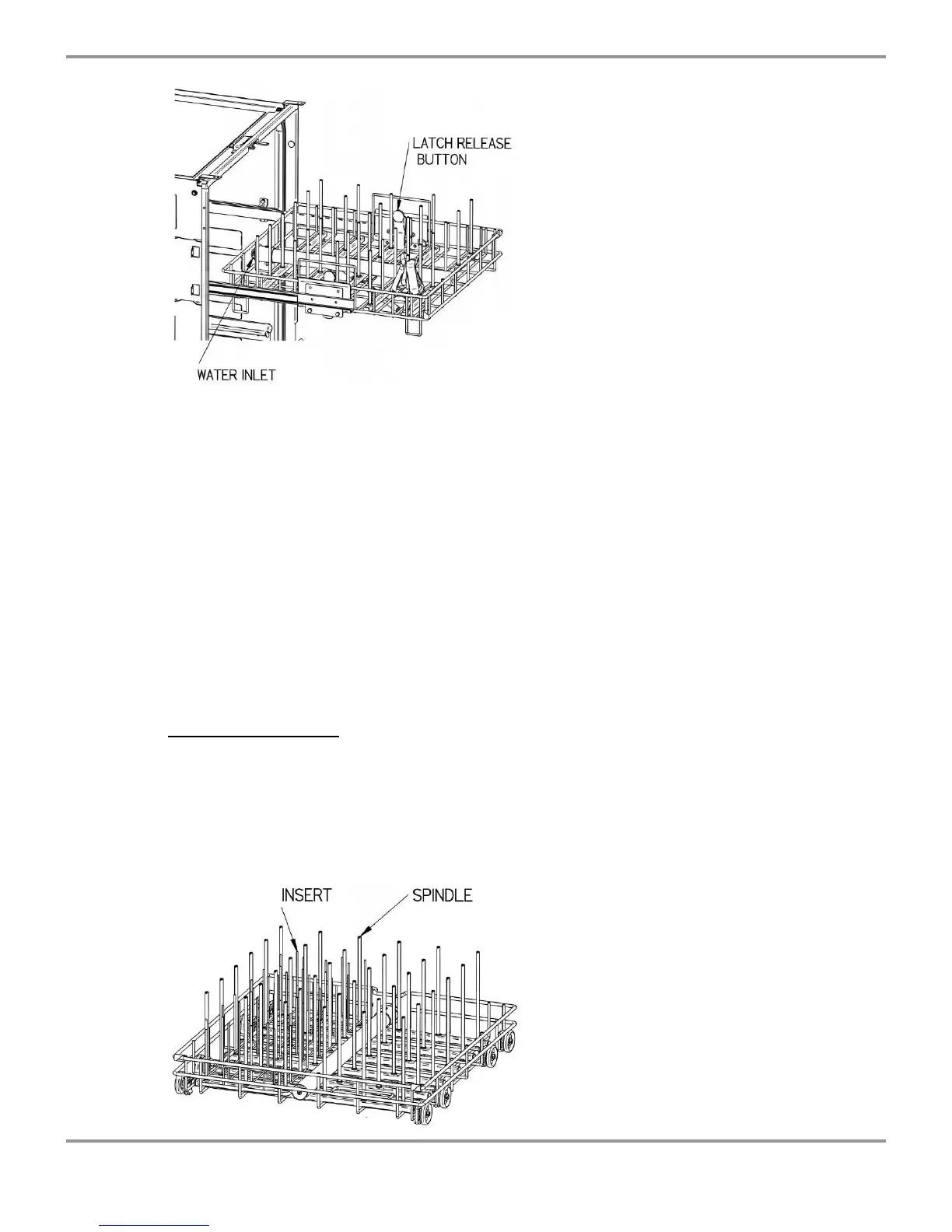

3. Install the Upper Spindle Rack by lowering the rack onto the rack mounting
plates. The water inlet must have its inlet toward the rear. Make sure the
latch on each side secures the rack to the rack mounting plate.
When the Upper Spindle Rack is in place, it limits the height of the glassware that
can be washed. If very tall glassware or long pipets are to be washed, remove the
Upper Spindle Rack.
Installing Optional Inserts into the Spindle Rack
A Multi-Pin insert is available that can be placed directly on the FlaskScrubber
upper or lower spindle rack. It can hold beakers or wide mouth glassware. The
insert can be positioned either on the left side or right side.
To install an insert:
1. Remove all glassware, spring retainers and glassware holders.
2. Lower the insert down over the spindles. If necessary, spindles may be
removed using the tool supplied with the Spindle Rack or a screwdriver in the
slot on the top of the spindles. Be sure to replace any removed spindle with a
plug supplied.
