Installing the Optional Liquid Detergent Dispenser
An optional liquid detergent dispenser is available for installation on
SteamScrubbers and FlaskScrubbers. This permits dispensing liquid detergent
from a bulk 1 gallon (3.8 L) container eliminating the need to fill the detergent
cup with detergent each time the washer is used. To install the liquid detergent

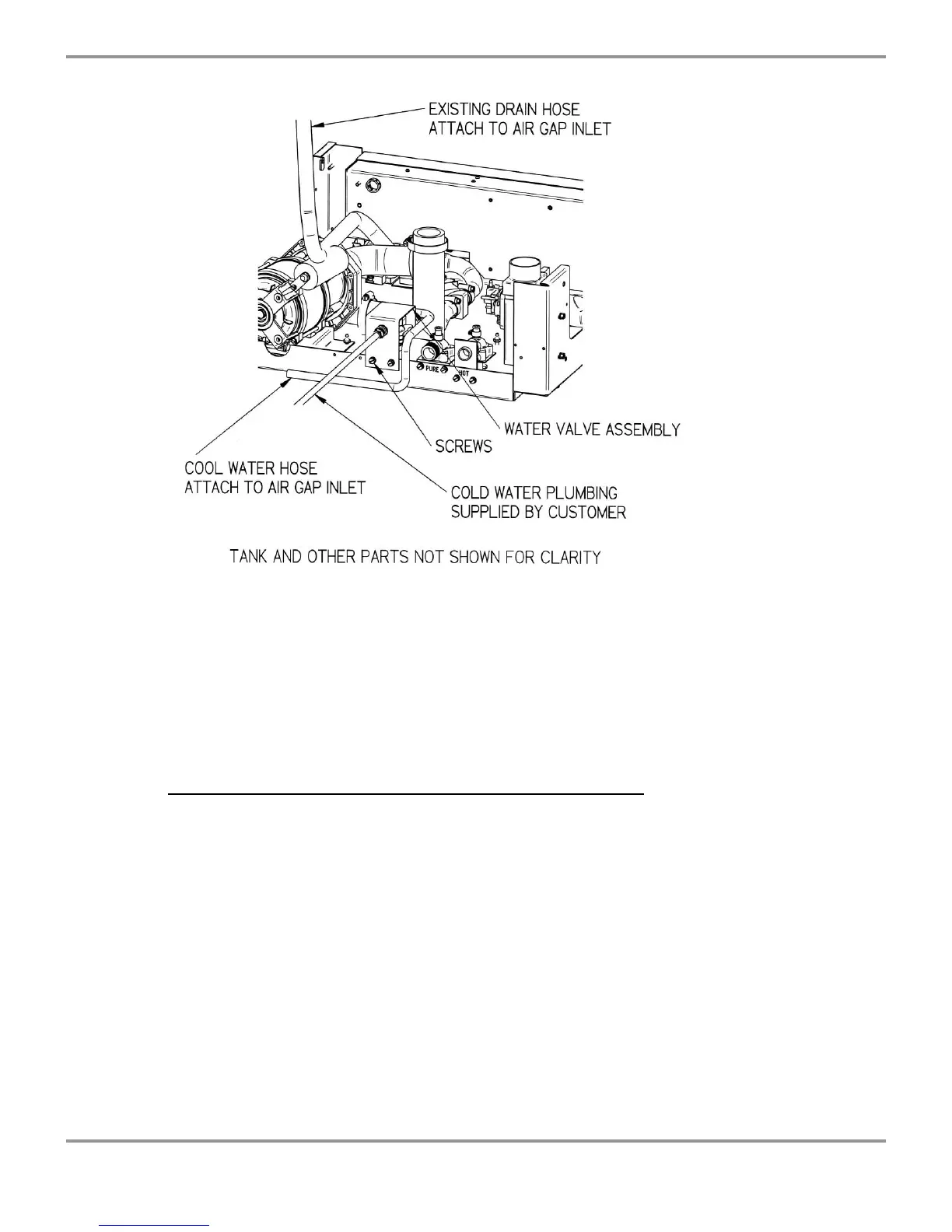

dispenser, refer to the figures below and the following instructions.
To install the liquid detergent dispenser components:
1. Disconnect power to the washer.
2. Remove the back panel if the washer is a Freestanding model. Loosen the
insulation blanket to provide access to the back of the washer.
3. Attach the dispense pump to the rear flange of the base using the screws and
nuts provided.
4. Attach the tube from the detergent container to the inlet of the pump.
5. Route the tube from the pump outlet to the vacuum break on the right hand
side of the washer. Connect the tube to the .12 barb fitting on the side of the
vacuum break. Secure the provided tie wrap around all 3 tubes on the top of
the vacuum break being careful not to collapse any tube.
6. Locate the detergent container at a convenient location where it will not be a
trip hazard.
7. Remove the lower panel and the electrical junction box cover as described in
Chapter 3: Getting Started.
