Label ETERNA 90 EASY User Manual

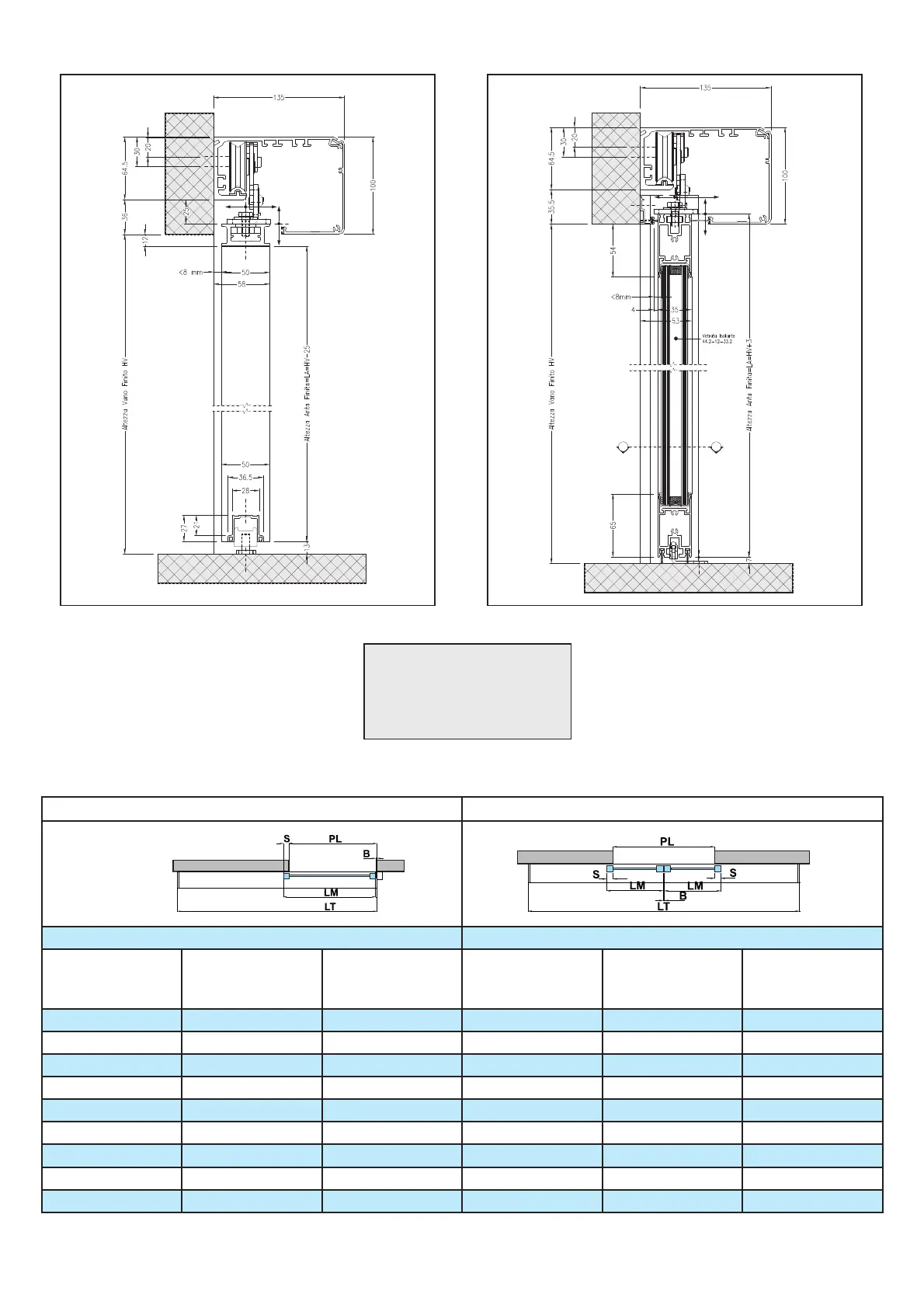

DIMENSIONAL TABLE
SECTION WITH LB35 PROFILE SYSTEM
SECTION WITH COMMERCIAL PROFILES


 
$$


 
'LVWDQ]D0DVVLPD
GDOOD3DUHWH
3$'3$'.,7
*XLGDD3DYLPHQWR
1&$6
0*66
37
LEGEND:
LT = AUTOMATION LENGTH
PL = FREE PASSAGE
LM = LEAF WIDTH
B = FINAL LEDGES
S = LEAF OVERLAPPING
12
1 MOBILE LEAF 2 MOBILE LEAVES
Sizing mm Sizing mm
LT= automation length
LT=2PL+S+25
LM= leaf S= overlap
B= contact with
S=50 B=10
LM = (LT-(25+B))/2+S/2
PL = free passage
PL = (LT-25)/2-S/2
LT= automation length
LT=2PL+2S+50
LM= leaf S= overlap
B= contact with
S = 50 B = 10
LM = (LT-(50+B))/4+S/2
PL = free passage
PL = (LT-50)/2-S
2000 996 976 2300 572,5 1102
2500 1246 1226 2500 622,5 1202
3000 1496 1476 3000 747,5 1452
3500 1746 1726 3500 872,5 1702
4000 1996 1976 4000 997,5 1952
4500 2246 2226 4500 1122,5 2202
5000 2496 2476 5000 1247,5 2452
5500 27496 2726 5500 1372,5 2702
6000 2996 2976 6000 1497,5 2952
