Label ETERNA 90 EASY User Manual

6

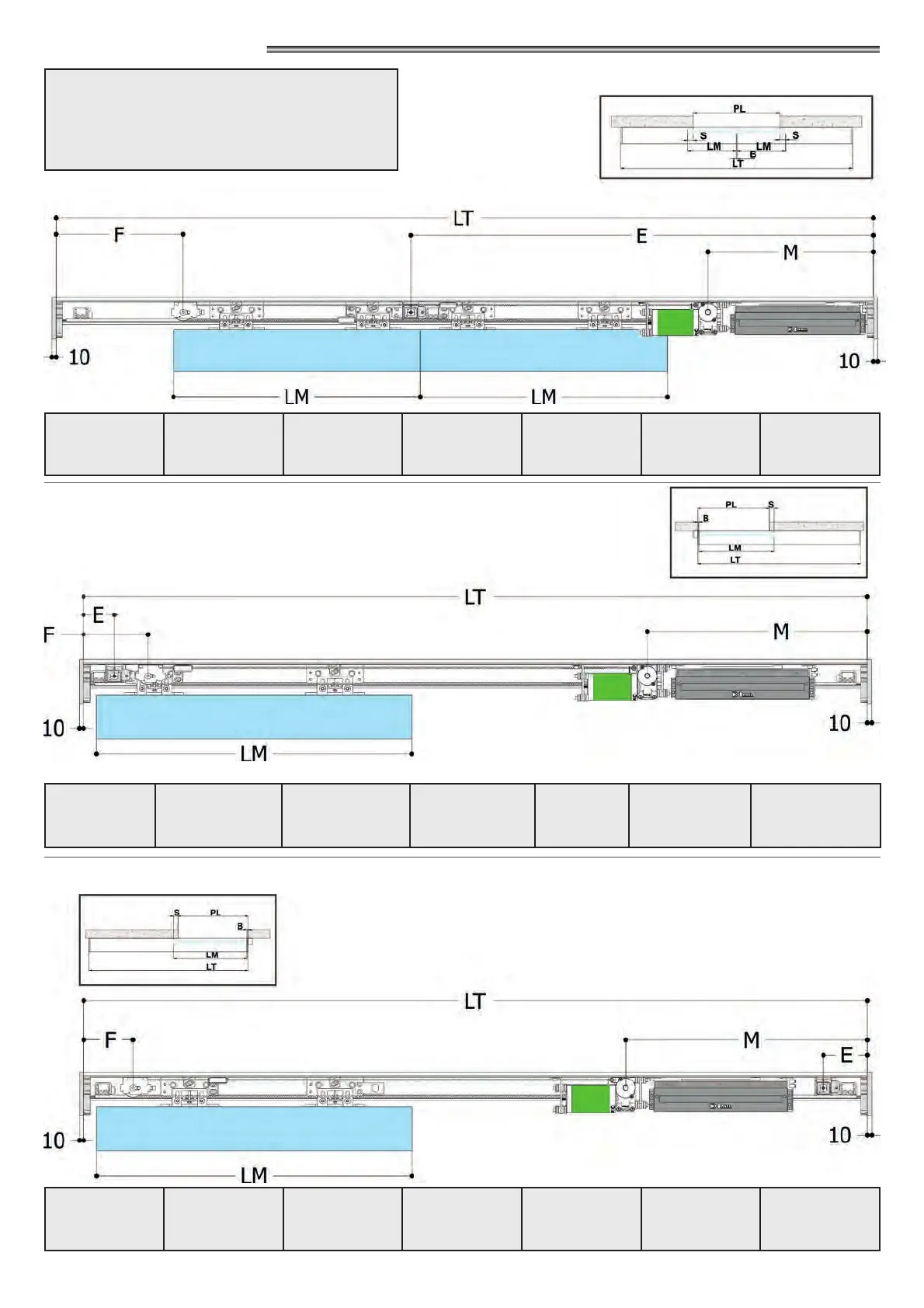

4) TECHNICAL DRAWINGS
*for M < 420mm see paragraph 4.1
LEGEND:
LT = TRANSOM LENGTH (WITHOUT SIDE COVERS)
PL = FREE PASSAGE
LM = LEAF WIDTH
B = LIMIT DEVICE
S = OVERLAP LEAF
LT = TRANSOM
LENGTH
LT=2PL+2S+50
PL = FREE PASSAGE
PL=(LT-50)/2-S
LM = LEAF WIDTH
LM=(LT-(50+B))/4+S/2
F = IDLE PULLEY
F=LT/4-270
*M = MOTOR PULLEY
M=LT/4 -150
LC = BELT LENGTH
LC=(LT-(F+M))*2+200
E = ELECTRIC LOCK
E=LT/2+30
LT = TRANSOM
LENGTH
LT=2PL+S+25
PL = FREE PASSAGE
PL=(LT-25)/2-S/2
LM = LEAF WIDTH
LM=(LT-(25+B))/2+S/2
F = IDLE PULLEY
F=180
M = MOTOR PULLEY
M=LT/2 -300
LC = BELT LENGTH
LC=(LT-(F+M))*2+200
E = ELECTRIC LOCK
E=90
LEFT OPENING SINGLE LEAF
RIGHT OPENING SINGLE LEAF
DOUBLE LEAF
LT= TRANSOM
LENGTH
LT=2PL+S+25
PL=
FREE PASSAGE
PL=(LT-25)/2-S/2
LM= LEAF WIDTH
LM=(LT-(25+B))/2+S/2
F= IDLE PULLEY
F=180
*M =
MOTOR
PULLEY
M=LT/2-300
LC= BELT LENGTH
LC=(LT-(F+M))*2+200
E= ELECTRIC LOCK
E=90
→
OPENING DIRECTION
→
OPENING DIRECTION
