16) T-EASY SELECTOR PROGRAM

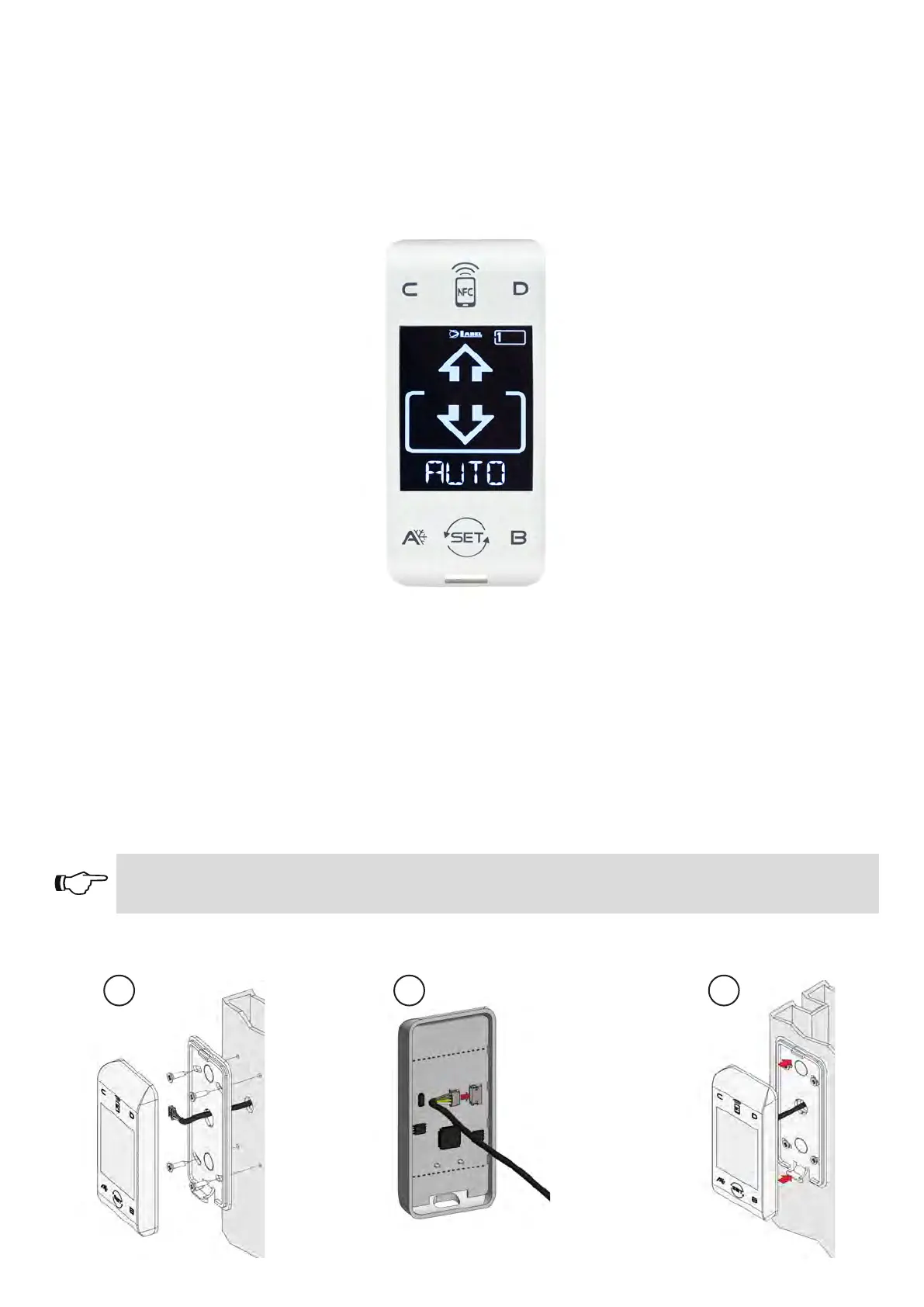

The T-EASY selector uses the Touch technology for the buttons and features a next-generation,
high-contrast display for clearer images.
It is used to interface with the door during “standard” operation by the user.
For faster installation and to eliminate the risk of connection errors, the selector is equipped with
a special cable (3,5 metres long), with a built-in connector at both ends.
INSTALLATION
First of all fasten the bottom of the plastic casing to the wall or to the metal structure on which you
wish to install the selector, using the supplied screws (1). The supplied cable output shall be installed
in this location, on the wall or on the metal structure (if possible centred with respect to the selector
casing). Break one of the 3 cable passages on the casing bottom to ensure that the cable can reach
the connector located on the board.
Important!
At this stage make sure that the door power supply and the battery are o.
Connect the cable to the connector located on the electronic board fastened to the plastic casing cover
(2), then close the cover onto the previously installed plastic casing (3).
1 2 3
32
